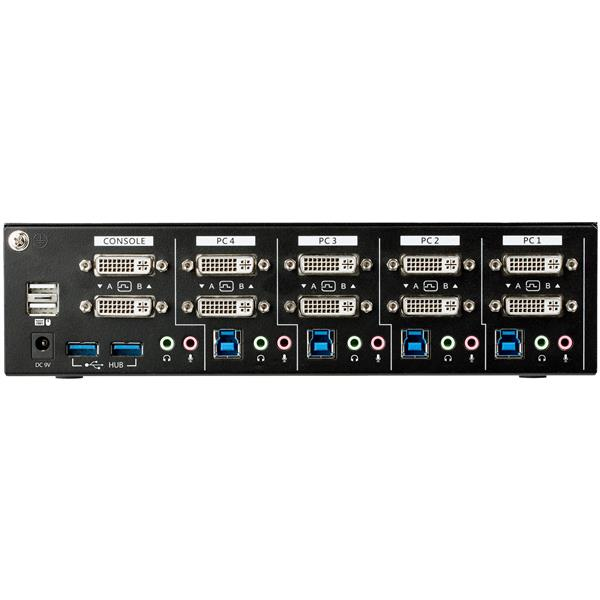

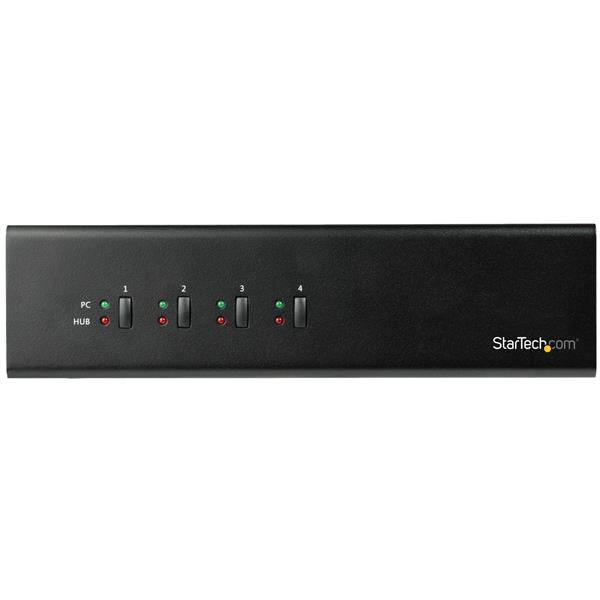

StarTech.com 4 Port Dual Monitor DVI KVM Switch - Dual Screen Display Compact USB KVM Switch with Integrated USB 3.0 Hub & Audio - Dual View KVM - Dell HP Apple

4 Port Dual Monitor DVI KVM Switch - Dual Screen Display Compact USB KVM Switch with Integrated USB 3.0 Hub & Audio - Dual View KVM - Dell HP Apple

Model SV431DD2DU3AEAN 065030858205

55 specifications

Weight1.3 kg
ColourBlack
Number of computers controlled4
Maximum analog resolution2048 x 1536 pixels
Built-in displayNo
Power sourceAC

See all specifications

Overview

Weight: 1.3 kg
Colour: Black
Number of computers controlled: 4
Maximum analog resolution: 2048 x 1536 pixels
Built-in display: No
Power source: AC

Brand: StarTech.com
Category: KVM Switch
Model: SV431DD2DU3A
Part number: SV431DD2DU3A
EAN / UPC: 065030858205, 650308582052, 6503085820500
Also known as: StarTech.com 4 Port Dual Monitor DVI KVM Switch - Dual Screen Display Compact USB KVM Switch with Integrated USB 3.0 Hub & Audio - Dual View KVM - Dell HP Apple

Specifications

55 specifications in 12 groups

Ports & interfaces

Specification	Value
Number of computers controlled	4
Keyboard port type	USB
Mouse port type	USB
Video port type	DVI-I
DVI-I ports quantity	10
Console USB ports quantity	4
Console ports	3.5mm headphone, 3.5mm mic, DVI-I, USB A
USB hub	Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity	2
USB connector type	USB Type-B
Audio connections	Yes
Headphone outputs	5
Number of microphone inputs	5
DC-in jack	Yes

Performance

Specification	Value
Maximum analog resolution	2048 x 1536 pixels
Maximum digital resolution	1920 x 1200 pixels
Maximum resolution	2048 x 1536 pixels
Data transfer rate (max)	5 Gbit/s
Scan interval	10,20,30,40,50,60 s
Daisy chain	Yes

Design

Specification	Value
Product colour	Black
Housing material	Steel
LED indicators	Yes
Hot keys	Yes
Certification	CE, FCC

Display

Specification	Value
Built-in display	No
On Screen Display (OSD)	No

Power

Specification	Value
Power source	AC
Input voltage	100 - 240 V
Input current	0.8 A
Output voltage	9 V
Output current	2 A
Compatible power plug types	AU, EU, JP, UK, US
External power adapter	Yes
Power consumption (typical)	18 W

Sustainability

Specification	Value
Compliance certificates	RoHS

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 90%

Weight & dimensions

Specification	Value
Width	253 mm
Depth	100 mm
Height	66 mm
Weight	1.3 kg

Packaging data

Specification	Value
Package width	160 mm
Package depth	268 mm
Package height	191.5 mm
Package weight	300 g

Packaging content

Specification	Value
AC adapter included	Yes
Quick installation guide	Yes

Other features

Specification	Value
IP control	No

Logistics data

Specification	Value
Harmonized System (HS) code	85176200
Master (outer) case width	495 mm
Master (outer) case length	554 mm
Master (outer) case height	213 mm
Products per master (outer) case	6 pc(s)
