2 Port Triple Monitor DVI USB KVM Switch with Audio & USB 2.0 Hub
Model SV231TDVIUAEAN 898029632315
52 specifications
- Weight900 g
- ColourBlack
- Number of computers controlled2
- Maximum digital resolution1920 x 1200 pixels
- Rack mountingNo
- Input voltage110-240 V
Overview
- Weight
- 900 g
- Colour
- Black
- Number of computers controlled
- 2
- Maximum digital resolution
- 1920 x 1200 pixels
- Rack mounting
- No
- Input voltage
- 110-240 V
- Brand
- StarTech.com
- Category
- KVM Switch
- Model
- SV231TDVIUA
- Part number
- SV231TDVIUA
- EAN / UPC
- 898029632315, 065030847469, 132017860022, 132018029619 +11 more
- Also known as
- StarTech.com 2 Port Triple Monitor DVI USB KVM Switch with Audio & USB 2.0 Hub
Specifications
52 specifications in 12 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Number of computers controlled | 2 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | DVI-I |
| DVI-I ports quantity | 6 |
| Console USB ports quantity | 4 |
| Console ports | DVI-I, 3.5mm headphone, 3.5mm mic, USB A |
| USB 2.0 ports quantity | 2 |
| Audio connections | Yes |
| Headphone outputs | 2 |
| Number of microphone inputs | 2 |
| DC-in jack | Yes |
Performance
| Specification | Value |
|---|---|
| Maximum digital resolution | 1920 x 1200 pixels |
| Maximum resolution | 1920 x 1200 pixels |
| Scan interval | 3,8,15,30 s |
| HDCP | Yes |
| Plug and Play | Yes |
| Daisy chain | No |
| Number of users | 1 user(s) |
Design
| Specification | Value |
|---|---|
| Rack mounting | No |
| Product colour | Black |
| LED indicators | Activity |
| Hot keys | Yes |
| Mean time between failures (MTBF) | 62000 h |
| Certification | CE, FCC |
Display
| Specification | Value |
|---|---|
| Built-in display | No |
| On Screen Display (OSD) | No |
Power
| Specification | Value |
|---|---|
| Input voltage | 110-240 V |
| Input current | 0.8 A |
| Output voltage | 12 V |
| Output current | 1.5 A |
| External power adapter | Yes |
| Power consumption (typical) | 18 W |
| Power plug type | Type M |
Sustainability
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -10 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 159 mm |
| Depth | 100 mm |
| Height | 74 mm |
| Weight | 900 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 185 mm |
| Package depth | 240 mm |
| Package height | 95 mm |
| Package weight | 1.41 kg |

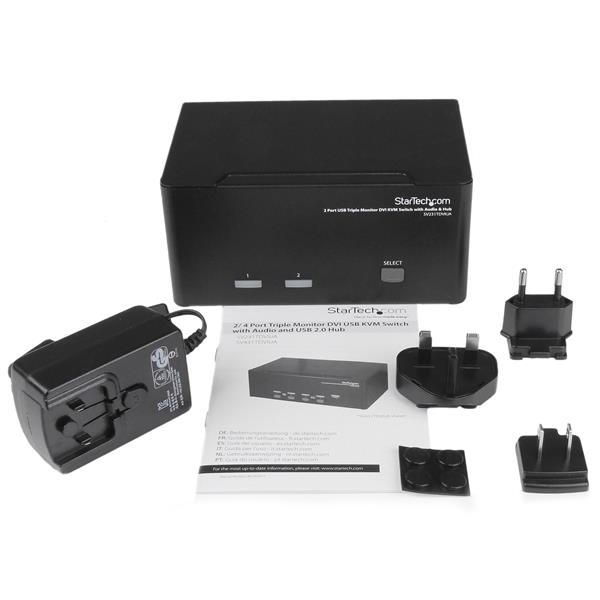

Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Manual | Yes |
| Rubber feet | Yes |
Other features
| Specification | Value |
|---|---|
| Audio support | Yes |
| IP control | No |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176200 |
