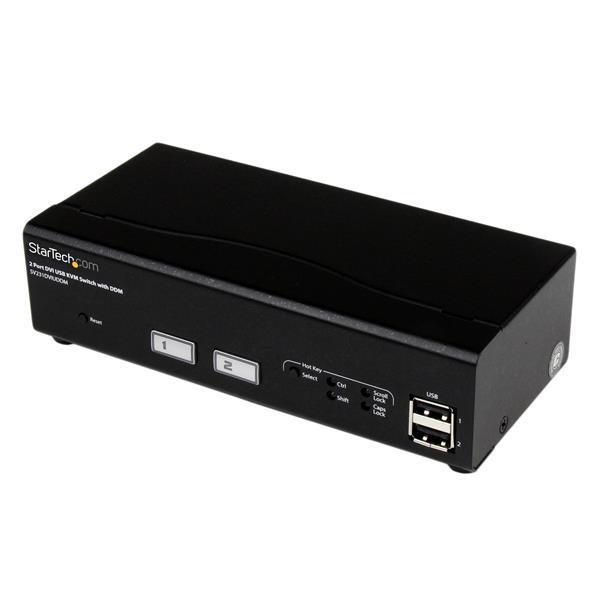

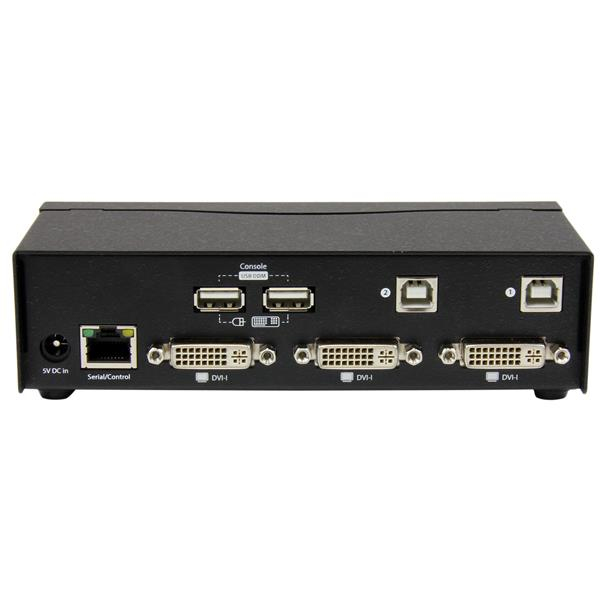

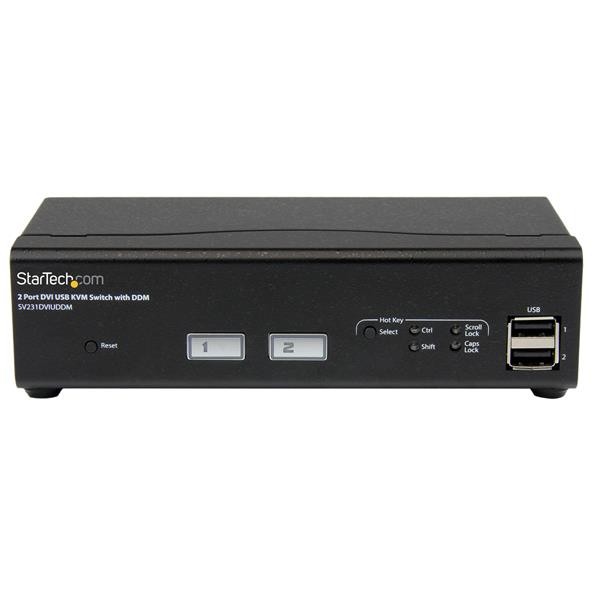

StarTech.com 2 Port USB DVI KVM Switch with DDM Fast Switching Technology and Cables

StarTech.com 2 Port USB DVI KVM Switch with DDM Fast Switching Technology and Cables

Model SV231DVIUDDMEAN 898029658780

55 specifications
  • Weight530 g
  • ColourBlack
  • Number of computers controlled2
  • Ethernet LANYes
  • HD typeFull HD
  • Rack mountingNo
See all specifications

Overview

Weight
530 g
Colour
Black
Number of computers controlled
2
Ethernet LAN
Yes
HD type
Full HD
Rack mounting
No
Brand
StarTech.com
Category
KVM Switch
Model
SV231DVIUDDM
Part number
SV231DVIUDDM
EAN / UPC
898029658780, 065030852807, 132018256497, 163121460303 +5 more
Also known as
StarTech.com 2 Port USB DVI KVM Switch with DDM Fast Switching Technology and Cables

Specifications

55 specifications in 13 groups

Ports & interfaces

Number of computers controlled2
Keyboard port typeUSB
Mouse port typeUSB
Video port typeDVI-I
Console USB ports quantity2
Console portsDVI-I, USB A
USB 2.0 ports quantity6
USB connector typeUSB Type-A, USB Type-B
Audio connectionsNo
DC-in jackYes

Network

Ethernet LANYes
Ethernet LAN (RJ-45) ports1

Performance

HD typeFull HD
Maximum resolution1920 x 1200 pixels
Plug and PlayYes
Daisy chainNo
Number of users1 user(s)

Design

Rack mountingNo
Product colourBlack
Housing materialSteel
LED indicatorsYes
Push buttonYes
Hot keysYes
CertificationCE, FCC, TAA, UL

Display

Built-in displayNo
On Screen Display (OSD)No

Power

Power sourceAC
Input voltage100 - 240 V
AC input frequency50 - 60 Hz
Input current0.4 A
Output voltage5 V
Output current2 A
Compatible power plug typesUK, US
Power consumption (typical)10 W
Power plug typeType M

Sustainability

Compliance certificatesRoHS

Operational conditions

Operating temperature (T-T)0 - 60 °C
Storage temperature (T-T)-30 - 70 °C
Operating relative humidity (H-H)0 - 80%
Storage relative humidity (H-H)0 - 80%

Weight & dimensions

Width76 mm
Depth165 mm
Height44 mm
Weight530 g

Packaging data

Package width254 mm
Package depth350 mm
Package height69 mm
Package weight1.8 kg

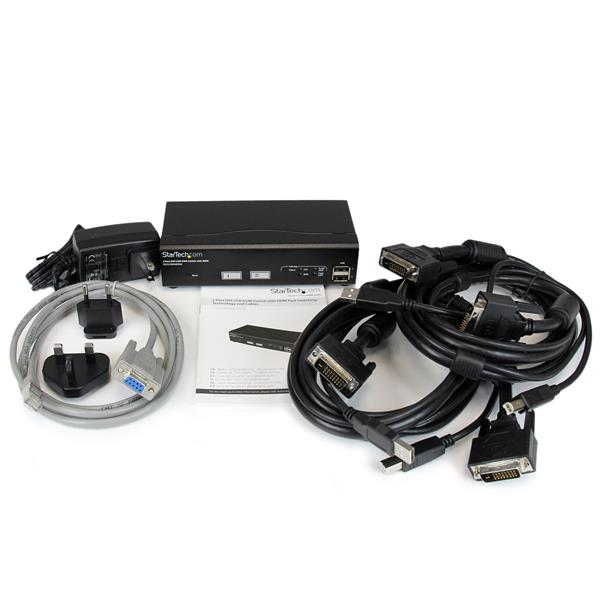

Packaging content

Cables includedAC, DVI, USB
AC adapter includedYes
ManualYes
Quick installation guideYes

Other features

Audio supportNo
IP controlNo

Logistics data

Harmonized System (HS) code85176200
