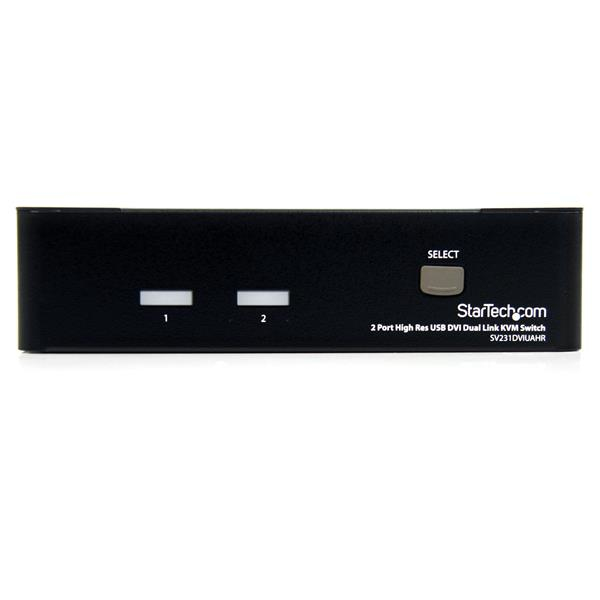

2 Port High Resolution USB DVI Dual Link KVM Switch with Audio
Model SV231DVIUAHREAN 898029631592
45 specifications
- Weight640 g
- ColourBlack
- Number of computers controlled2
- Maximum resolution2560 x 1600 pixels
- Rack mountingNo
- Input voltage110-240 V
Overview
- Weight
- 640 g
- Colour
- Black
- Number of computers controlled
- 2
- Maximum resolution
- 2560 x 1600 pixels
- Rack mounting
- No
- Input voltage
- 110-240 V
- Brand
- StarTech.com
- Category
- KVM Switch
- Model
- SV231DVIUAHR
- Part number
- SV231DVIUAHR
- EAN / UPC
- 898029631592, 065030841702, 086000184087, 132017631745 +12 more
- Also known as
- StarTech.com 2 Port High Resolution USB DVI Dual Link KVM Switch with Audio
Specifications
45 specifications in 12 groups

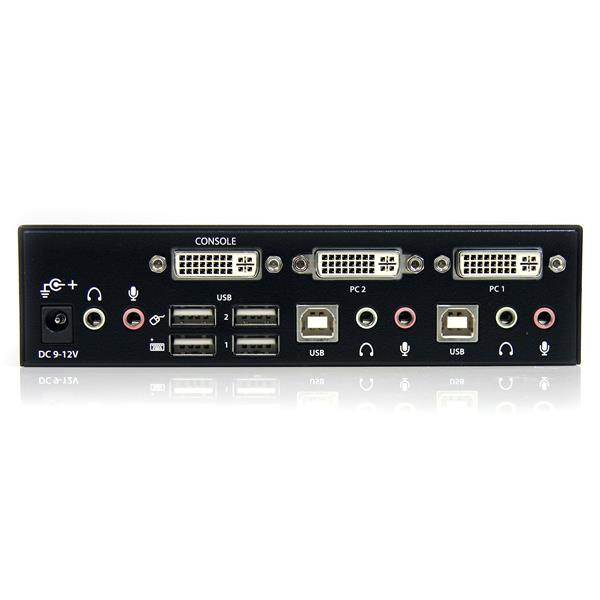

Ports & interfaces
| Specification | Value |
|---|---|
| Number of computers controlled | 2 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | DVI-I |
| Console USB ports quantity | 1 |
| Console ports | 3.5mm headphone, 3.5mm mic, DVI-I, USB A |
| USB 2.0 ports quantity | 4 |
| USB connector type | USB Type-A |
| USB version | 2.0 |
| Headphone outputs | 3 |
| Number of microphone inputs | 3 |
| DC-in jack | Yes |
Performance
| Specification | Value |
|---|---|
| Maximum resolution | 2560 x 1600 pixels |
| Daisy chain | No |
Design
| Specification | Value |
|---|---|
| Rack mounting | No |
| Product colour | Black |
| Housing material | Steel |
| Hot keys | Yes |
| Certification | CE, FCC |
Display
| Specification | Value |
|---|---|
| On Screen Display (OSD) | No |
Power
| Specification | Value |
|---|---|
| Input voltage | 110-240 V |
| Input current | 0.8 A |
| Output voltage | 12 V |
| Output current | 1.5 A |
| Compatible power plug types | EU, UK, US |
| Power consumption (typical) | 18 W |
| Power plug type | Type M |
Sustainability
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 100 mm |
| Depth | 159 mm |
| Height | 40 mm |
| Weight | 640 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 186 mm |
| Package depth | 250 mm |
| Package height | 101 mm |
| Package weight | 1.11 kg |

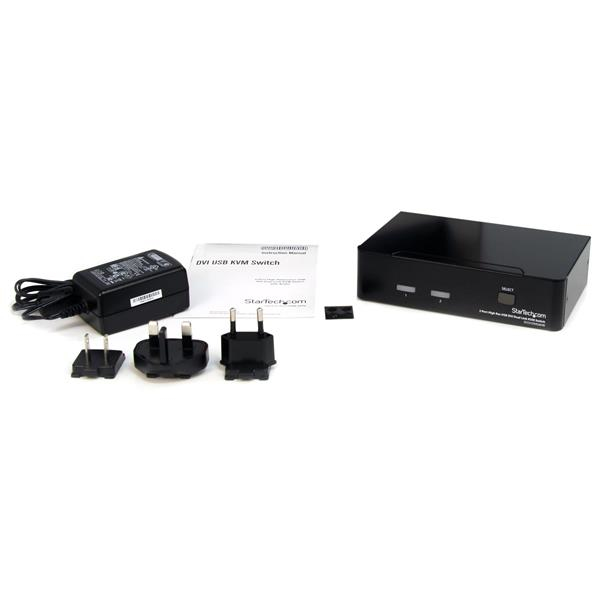

Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Manual | Yes |
| Rubber feet | Yes |
Other features
| Specification | Value |
|---|---|
| Audio support | Yes |
| IP control | No |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176200 |
