2-port KVM switch with dual VGA - USB 2.0
Model SV231DVGAU2AEAN 065030860635
47 specifications
- Weight768 g
- ColourBlack
- Number of computers controlled2
- HD typeFull HD
- Rack mountingNo
- Input voltage100 - 240 V
Overview
- Weight
- 768 g
- Colour
- Black
- Number of computers controlled
- 2
- HD type
- Full HD
- Rack mounting
- No
- Input voltage
- 100 - 240 V
- Brand
- StarTech.com
- Category
- KVM Switch
- Model
- SV231DVGAU2A
- Part number
- SV231DVGAU2A
- EAN / UPC
- 065030860635, 650308606352, 5054629822616, 7427457677655
- Also known as
- StarTech.com 2-port KVM switch with dual VGA - USB 2.0
Specifications
47 specifications in 12 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Number of computers controlled | 2 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | VGA |
| VGA (D-Sub) ports quantity | 6 |
| USB 2.0 Type-B ports quantity | 2 |
| Console USB ports quantity | 4 |
| Console ports | 3.5mm headphone, USB A, VGA (D-Sub) |
| Audio connections | Yes |
| Headphone outputs | 2 |
| Number of microphone inputs | 2 |
| DC-in jack | Yes |
Performance
| Specification | Value |
|---|---|
| HD type | Full HD |
| Maximum resolution | 1920 x 1200 pixels |
| Daisy chain | No |
| Number of users | 1 user(s) |
Design
| Specification | Value |
|---|---|
| Rack mounting | No |
| Product colour | Black |
| Housing material | Steel |
| LED indicators | Yes |
| Hot keys | Yes |
| Mean time between failures (MTBF) | 72000 h |
| Certification | CE, FCC, TAA, REACH |
Display
| Specification | Value |
|---|---|
| Built-in display | No |
Power
| Specification | Value |
|---|---|
| Input voltage | 100 - 240 V |
| Input current | 0.6 A |
| Output current | 1.5 A |
| Compatible power plug types | AU, EU, UK, US |
| Power consumption (typical) | 18 W |
| Power plug type | Type M |
Sustainability
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 104 mm |
| Depth | 159 mm |
| Height | 57 mm |
| Weight | 768 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 241 mm |
| Package depth | 187 mm |
| Package height | 92 mm |
| Package weight | 1.2 kg |

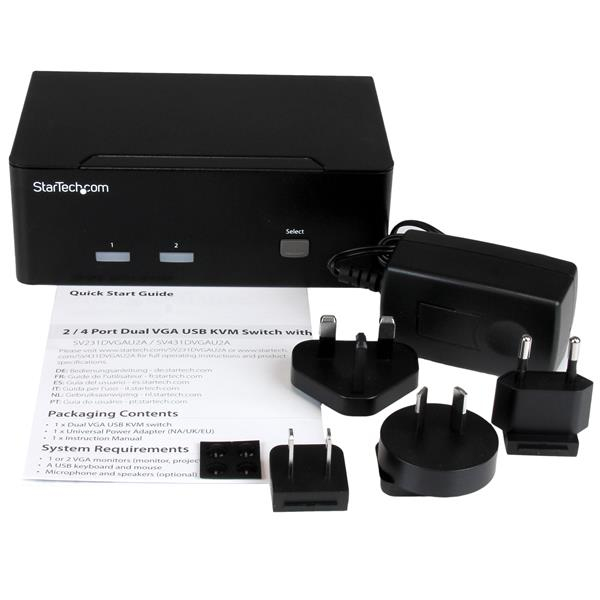

Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Manual | Yes |
Other features
| Specification | Value |
|---|---|
| Audio support | Yes |
| IP control | No |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176200 |
