2-Port USB-C KVM Switch, Single 4K
60Hz DisplayPort Monitor, 3.5mm Audio, 6x USB Hub Ports, Hot Key Switching, Thunderbolt 3/4 Compatible - TAA
Model SV231DPUCAEAN 065030872201
53 specifications
- Weight600 g
- ColourBlack
- Number of computers controlled2
- HD type4K Ultra HD
- Rack mountingNo
- Power sourceAC
Overview
- Weight
- 600 g
- Colour
- Black
- Number of computers controlled
- 2
- HD type
- 4K Ultra HD
- Rack mounting
- No
- Power source
- AC
- Brand
- StarTech.com
- Category
- KVM Switch
- Model
- SV231DPUCA
- Part number
- SV231DPUCA
- EAN / UPC
- 065030872201, 650308722014
- Also known as
- StarTech.com 2-Port USB-C KVM Switch, Single 4K 60Hz DisplayPort Monitor, 3.5mm Audio, 6x USB Hub Ports, Hot Key Switching, Thunderbolt 3/4 Compatible - TAA
Specifications
53 specifications in 11 groups

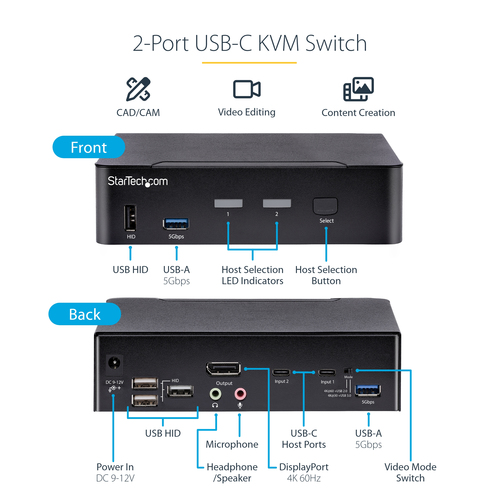

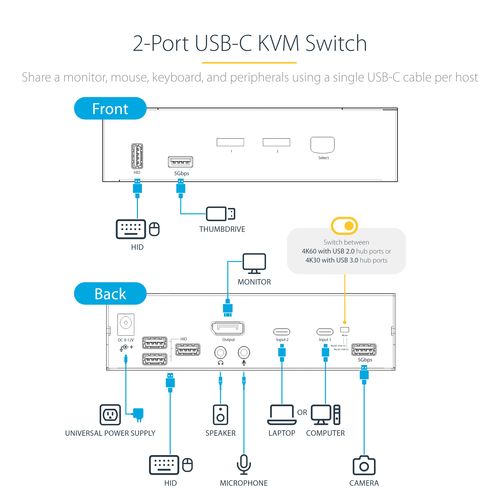

Ports & interfaces
| Specification | Value |
|---|---|
| Number of computers controlled | 2 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | DisplayPort |
| DisplayPort version | 1.2 |
| Console USB ports quantity | 6 |
| Console ports | 3.5mm headphone, 3.5mm mic, DisplayPort |
| Console DisplayPorts ports quantity | 1 |
| USB hub | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity | 2 |
| Headphone outputs | 1 |
| Number of microphone inputs | 1 |
Performance
| Specification | Value |
|---|---|
| HD type | 4K Ultra HD |
| Maximum resolution | 5120 x 1440 pixels |
| Video bandwidth | 60 Hz |
| Data transfer rate (max) | 5 Gbit/s |
| Scan interval | 3,8,15,30 s |
| HDCP | Yes |
| Audio channels | 2.0 |
| Chipset | Parade - PS8461, Etron - EJ899I |
| Number of displays supported | 1 |
Design
| Specification | Value |
|---|---|
| Rack mounting | No |
| Product colour | Black |
| LED indicators | Yes |
| Push button | Yes |
| Hot keys | Yes |
| Mean time between failures (MTBF) | 158000 h |
Display
| Specification | Value |
|---|---|
| Built-in display | No |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Input voltage | 100 - 240 V |
| Input current | 1.2 A |
| Output voltage | 12 V |
| Output current | 3 A |
| Power plug type | Type M |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -10 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 140 mm |
| Depth | 160 mm |
| Height | 40 mm |
| Weight | 600 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 186 mm |
| Package depth | 240 mm |
| Package height | 94 mm |
| Package weight | 1 kg |

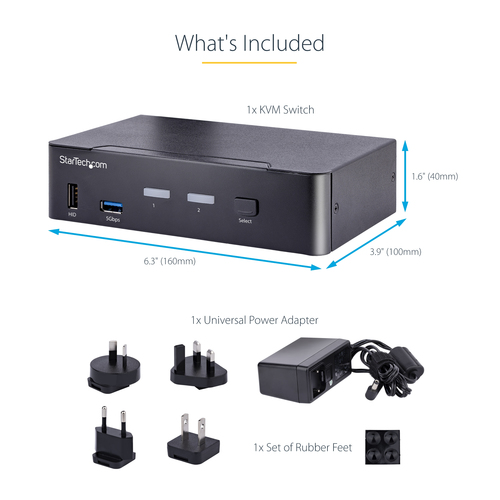

Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Quick installation guide | Yes |
| Rubber feet | Yes |
Other features
| Specification | Value |
|---|---|
| IP control | No |
Logistics data
| Specification | Value |
|---|---|
| Master (outer) case width | 300 mm |
| Master (outer) case length | 397 mm |
| Master (outer) case height | 257 mm |
| Products per master (outer) case | 6 pc(s) |
