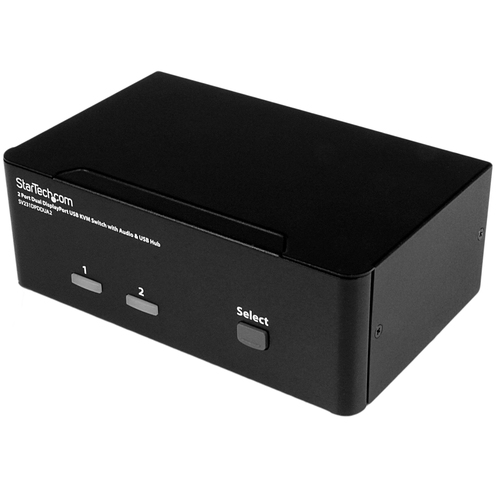

2-Port DisplayPort Dual-Monitor KVM Switch - 4K
60Hz - TAA
Model SV231DPDDUA2EAN 065030867177
48 specifications
- Weight734 g
- ColourBlack
- Number of computers controlled2
- Ethernet LANNo
- HD type4K Ultra HD
- Input voltage100 - 240 V
Overview
- Weight
- 734 g
- Colour
- Black
- Number of computers controlled
- 2
- Ethernet LAN
- No
- HD type
- 4K Ultra HD
- Input voltage
- 100 - 240 V
- Brand
- StarTech.com
- Category
- KVM Switch
- Model
- SV231DPDDUA2
- Part number
- SV231DPDDUA2
- EAN / UPC
- 065030867177, 650308671770, 5057454713166
- Also known as
- StarTech.com 2-Port DisplayPort Dual-Monitor KVM Switch - 4K 60Hz - TAA
Specifications
48 specifications in 13 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Number of computers controlled | 2 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | DisplayPort |
| Console USB ports quantity | 4 |
| Console ports | 3.5mm headphone, 3.5mm mic, DisplayPort, USB A |
| USB connector type | USB Type-A |
| Audio connections | Yes |
| Headphone outputs | 3 |
| Number of microphone inputs | 3 |
| DC-in jack | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | No |
Performance
| Specification | Value |
|---|---|
| HD type | 4K Ultra HD |
| Maximum resolution | 3840 x 2160 pixels |
| Daisy chain | No |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| LED indicators | Yes |
| Push button | Yes |
| Hot keys | Yes |
| Certification | CE, FCC, REACH, TAA |
Display
| Specification | Value |
|---|---|
| Built-in display | No |
Power
| Specification | Value |
|---|---|
| Input voltage | 100 - 240 V |
| Input current | 1.5 A |
| Output voltage | 12 V |
| Output current | 0.6 A |
| Compatible power plug types | AU, EU, UK, US |
| External power adapter | Yes |
Sustainability
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | 20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
Weight & dimensions
| Specification | Value |
|---|---|

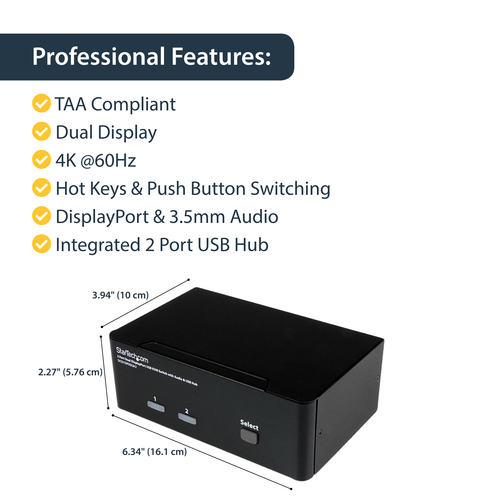

| Width | 161 mm |
| Depth | 58 mm |
| Height | 100 mm |
| Weight | 734 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 250 mm |
| Package depth | 188 mm |
| Package height | 100 mm |
| Package weight | 1.2 kg |
Packaging content
| Specification | Value |
|---|---|
| Manual | Yes |
| Rubber feet | Yes |
Other features
| Specification | Value |
|---|---|
| Audio support | Yes |
| IP control | No |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176200 |
| Master (outer) case width | 403 mm |
| Master (outer) case length | 319 mm |
| Master (outer) case height | 287 mm |
| Products per master (outer) case | 6 pc(s) |
