2 Port DVI VGA Dual Monitor KVM Switch USB with Audio & USB 2.0 Hub - TAA
Model SV231DDVDUAEAN 5054533311084
54 specifications
- Weight750 g
- ColourBlack
- Number of computers controlled2
- HD typeWUXGA
- Rack mountingNo
- Input voltage100-240 V
Overview
- Weight
- 750 g
- Colour
- Black
- Number of computers controlled
- 2
- HD type
- WUXGA
- Rack mounting
- No
- Input voltage
- 100-240 V
- Brand
- StarTech.com
- Category
- KVM Switch
- Model
- SV231DDVDUA
- Part number
- SV231DDVDUA
- EAN / UPC
- 5054533311084, 065030835725, 112840348157, 168141553127 +10 more
- Also known as
- StarTech.com 2 Port DVI VGA Dual Monitor KVM Switch USB with Audio & USB 2.0 Hub - TAA
Specifications
54 specifications in 12 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Number of computers controlled | 2 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | VGA/DVI-I |
| Console ports | 3.5mm headphone, DVI-I, VGA (D-Sub) |
| USB 2.0 ports quantity | 4 |
| USB connector type | USB Type-A |
| Audio connections | Yes |
| Headphone outputs | 3 |
| Number of microphone inputs | 3 |
Performance
| Specification | Value |
|---|---|
| HD type | WUXGA |
| Maximum digital resolution | 1920 x 1200 pixels |
| Maximum resolution | 1920 x 1200 pixels |
| DDC2B support | Yes |
| HDCP | Yes |
| Daisy chain | No |
| Number of users | 1 user(s) |
Design
| Specification | Value |
|---|---|
| Rack mounting | No |
| Product colour | Black |
| Housing material | Steel |
| LED indicators | Power |
| Mean time between failures (MTBF) | 64691 h |
| Certification | CE, FCC |
Display
| Specification | Value |
|---|---|
| Built-in display | No |
Power
| Specification | Value |
|---|---|
| Input voltage | 100-240 V |
| Input current | 0.8 A |
| Output voltage | 12 V |
| Output current | 1.5 A |
| Compatible power plug types | AU, EU, UK, US |
| External power adapter | Yes |
| Power consumption (typical) | 18 W |
| Power plug type | Type M |
Sustainability
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 160 mm |
| Depth | 163 mm |
| Height | 57 mm |
| Weight | 750 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 198 mm |
| Package depth | 294 mm |
| Package height | 72 mm |
| Package weight | 1.29 kg |

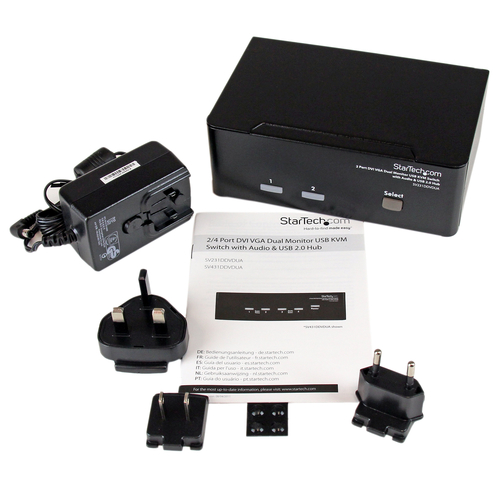

Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Manual | Yes |
| Rubber feet | Yes |
Other features
| Specification | Value |
|---|---|
| Audio support | Yes |
| IP control | No |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176200 |
| Master (outer) case width | 410 mm |
| Master (outer) case length | 454 mm |
| Master (outer) case height | 332 mm |
| Products per master (outer) case | 12 pc(s) |
