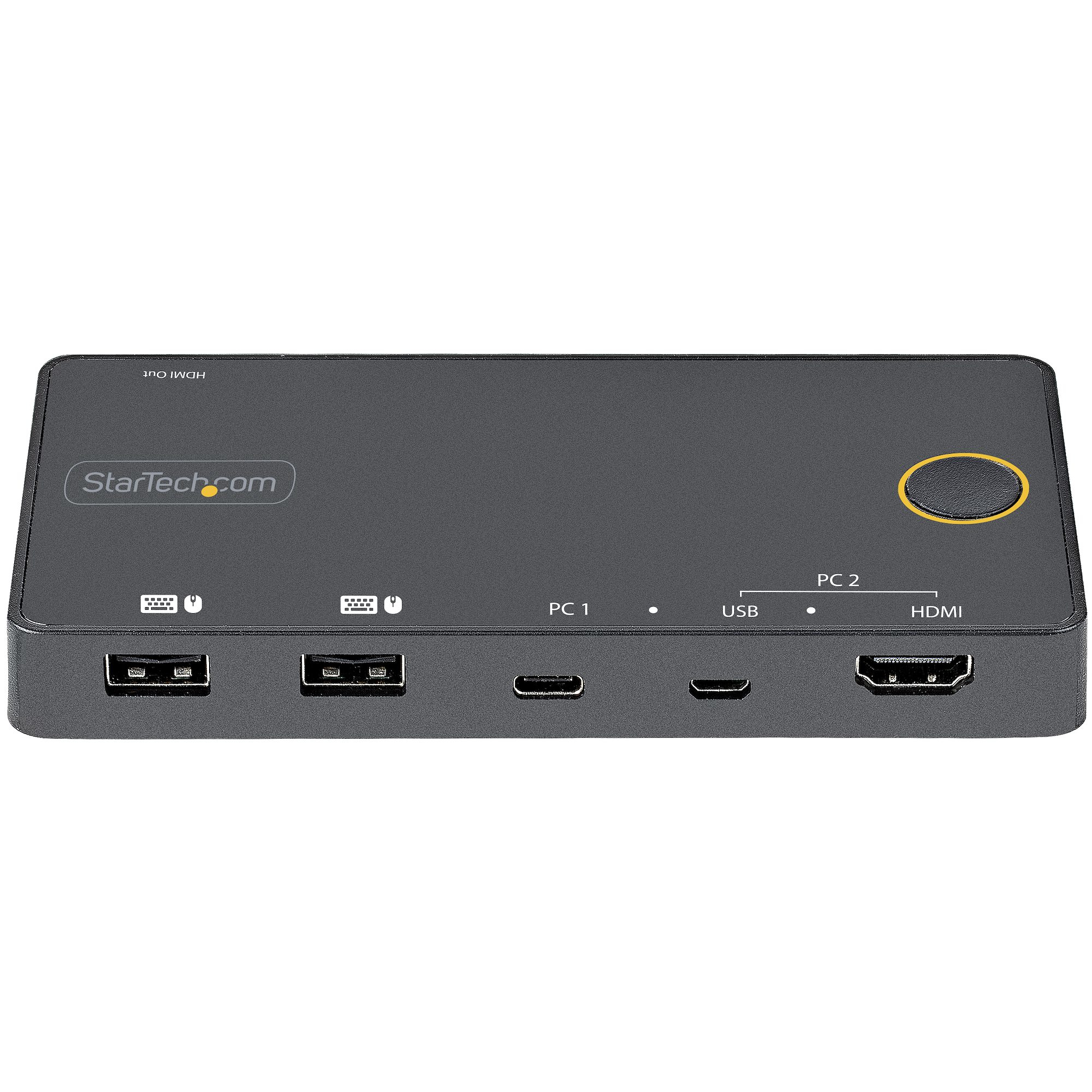

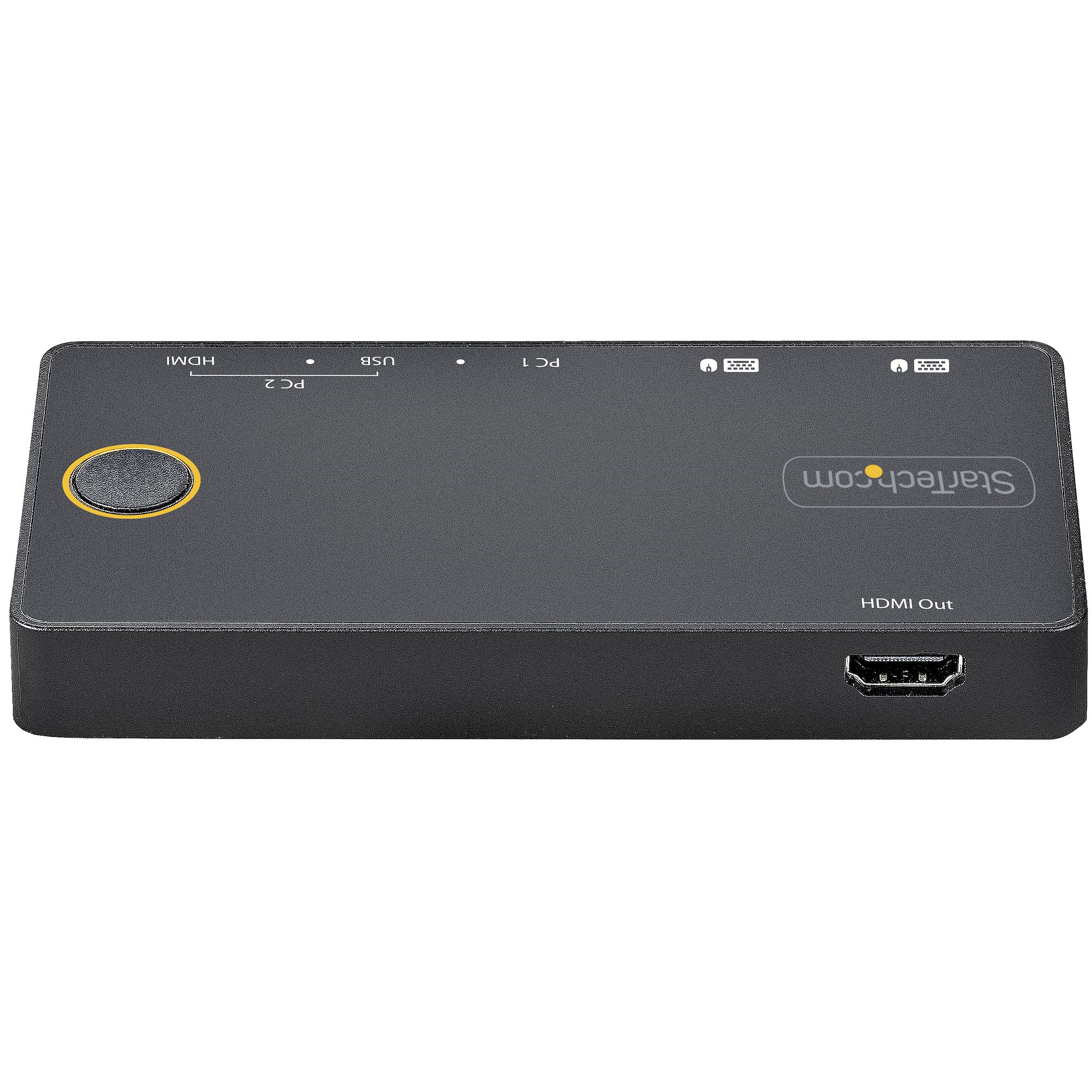

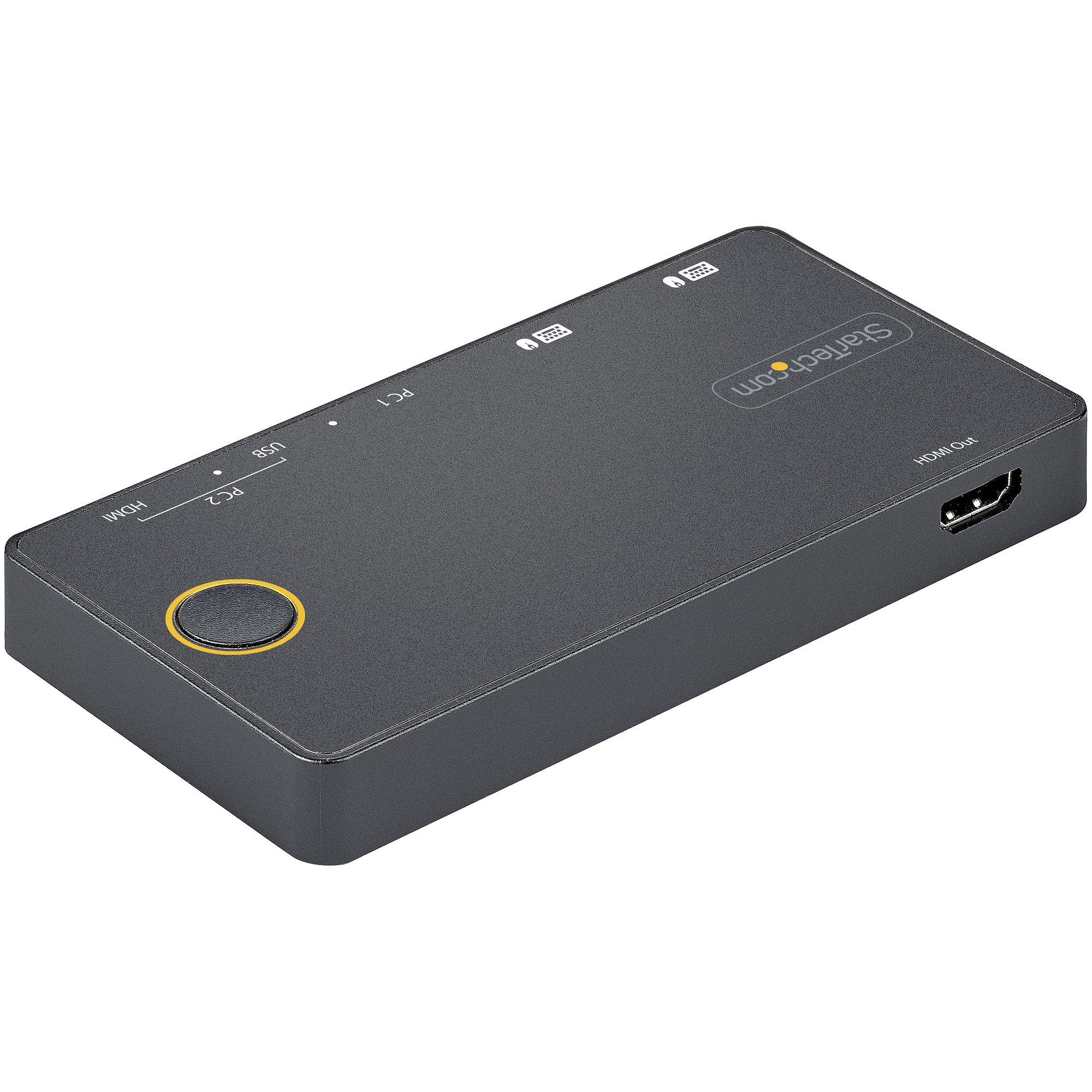

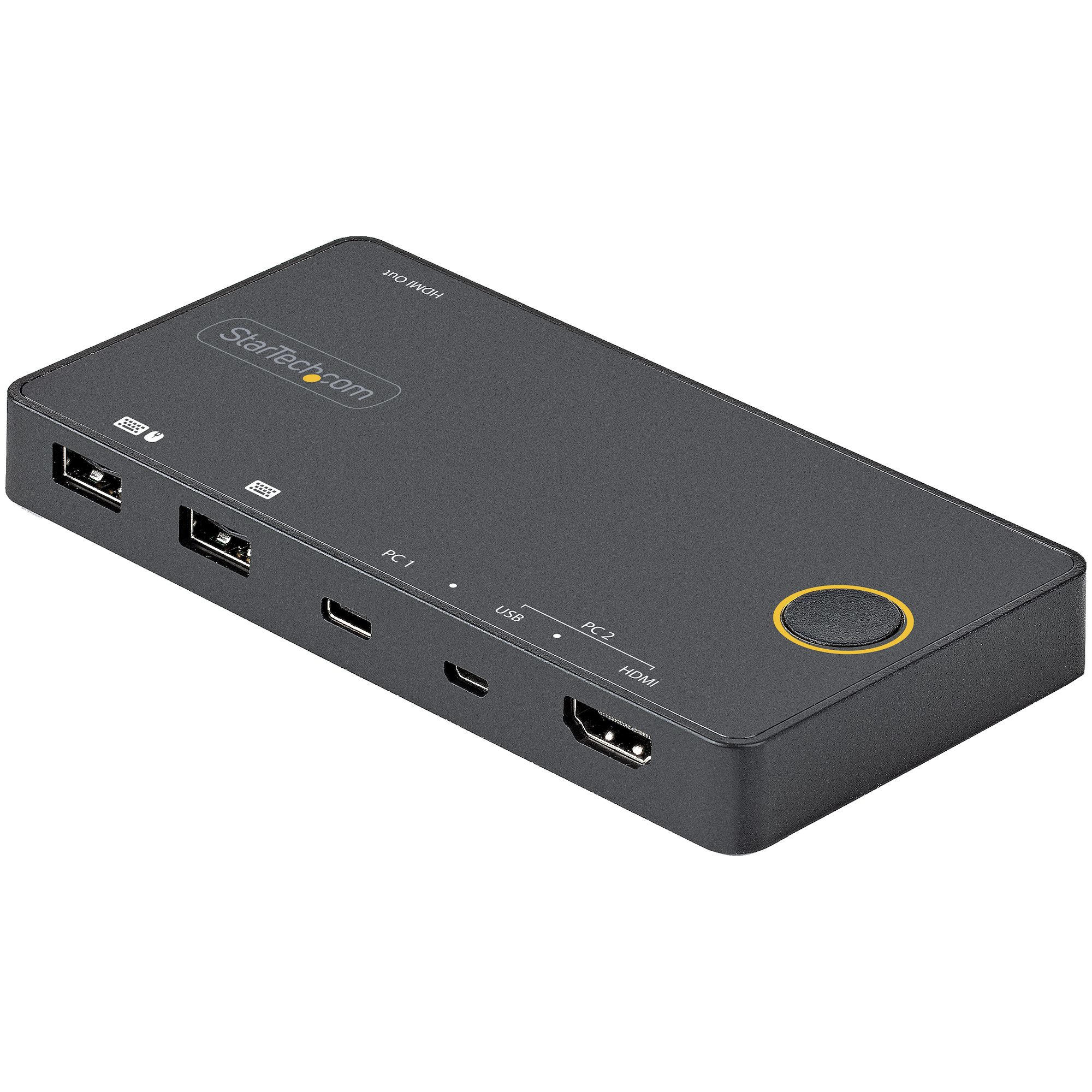

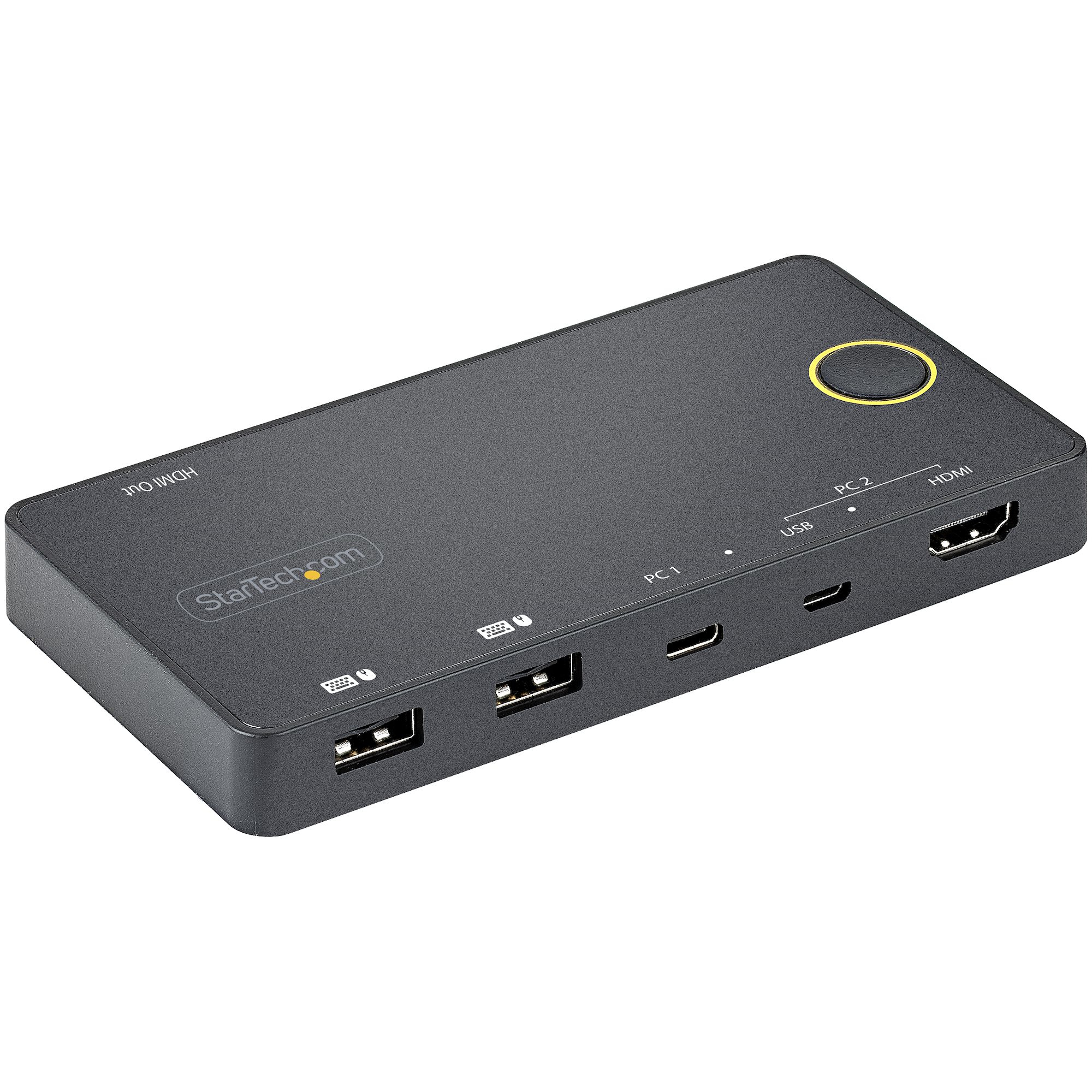

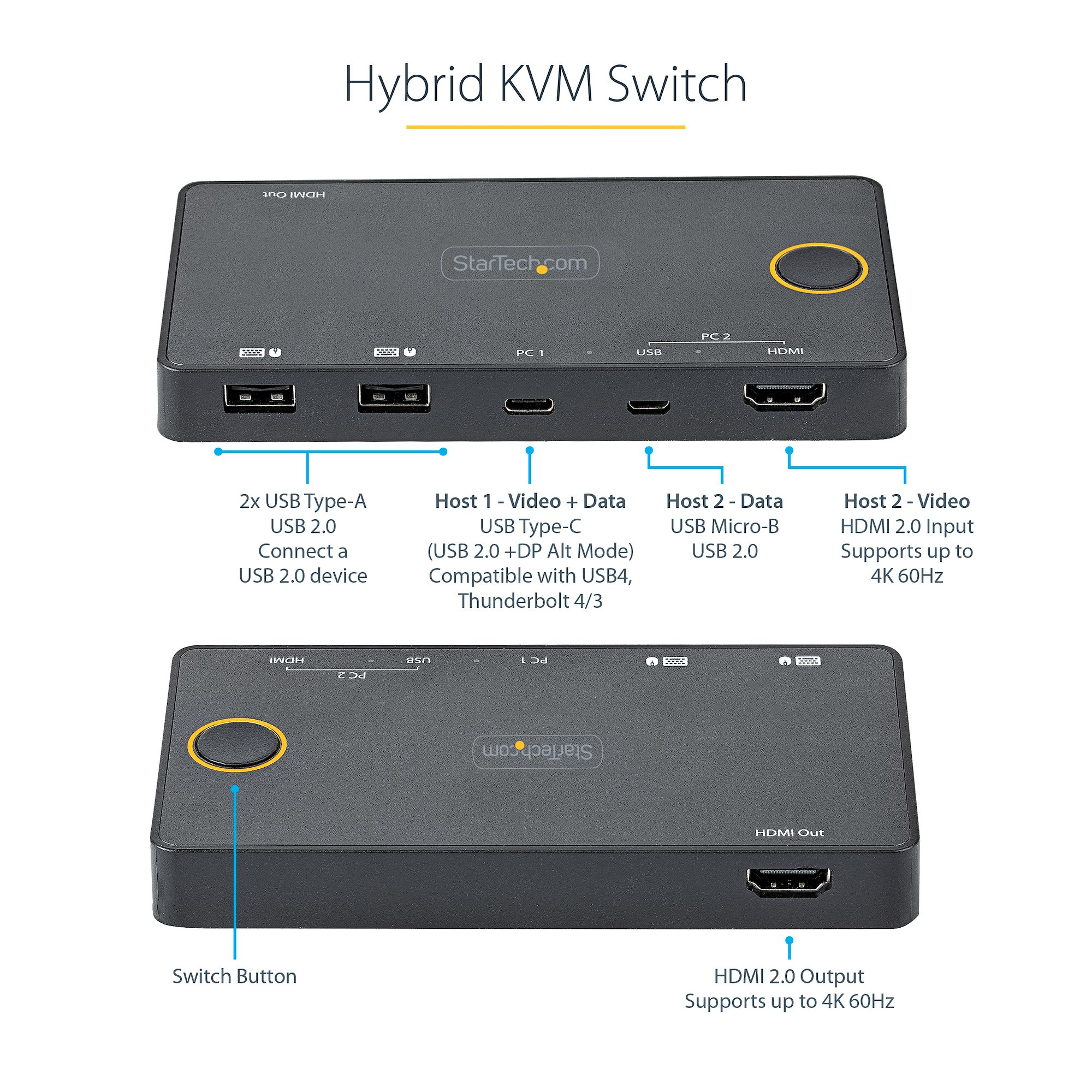

2 Port Hybrid USB-A + HDMI & USB-C KVM Switch - Single 4K
60Hz HDMI 2.0 Monitor - Compact Desktop and/or Laptop HDMI KVM Switch - USB Bus Powered -
Model SV221HUC4KEAN 065030891820
44 specifications
- Weight200 g
- ColourBlack
- Number of computers controlled2
- HD type4K Ultra HD
- Rack mountingNo
- USB poweredYes
Overview
- Weight
- 200 g
- Colour
- Black
- Number of computers controlled
- 2
- HD type
- 4K Ultra HD
- Rack mounting
- No
- USB powered
- Yes
- Brand
- StarTech.com
- Category
- KVM Switch
- Model
- SV221HUC4K
- Part number
- SV221HUC4K
- EAN / UPC
- 065030891820
- Also known as
- StarTech.com 2 Port Hybrid USB-A + HDMI & USB-C KVM Switch - Single 4K 60Hz HDMI 2.0 Monitor - Compact Desktop and/or Laptop HDMI KVM Switch - USB Bus Powered -
Specifications
44 specifications in 11 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Number of computers controlled | 2 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | HDMI |
| HDMI ports quantity | 2 |
| HDMI version | 2.0 |
| DisplayPort version | 1.2 |
| USB connector type | Micro-USB B, USB Type-A, USB Type-C |
Performance
| Specification | Value |
|---|---|
| HD type | 4K Ultra HD |
| Maximum resolution | 3840 x 2160 pixels |
| Video bandwidth | 60 Hz |
| Data transfer rate (max) | 0.48 Gbit/s |
| Daisy chain | No |
| Audio channels | 7.1 |
| Chipset | Parade - PS176, VLI - VL170, Terminus - FE1.1S |
| Number of displays supported | 1 |
Design
| Specification | Value |
|---|---|
| Rack mounting | No |
| Product colour | Black |
| LED indicators | Yes |
| Push button | Yes |
| Hot keys | No |
| Mean time between failures (MTBF) | 50000 h |
Display
| Specification | Value |
|---|---|
| Built-in display | No |
| On Screen Display (OSD) | No |
Power
| Specification | Value |
|---|---|
| USB powered | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 55 °C |
| Storage temperature (T-T) | -20 - 50 °C |
| Operating relative humidity (H-H) | 20 - 80% |

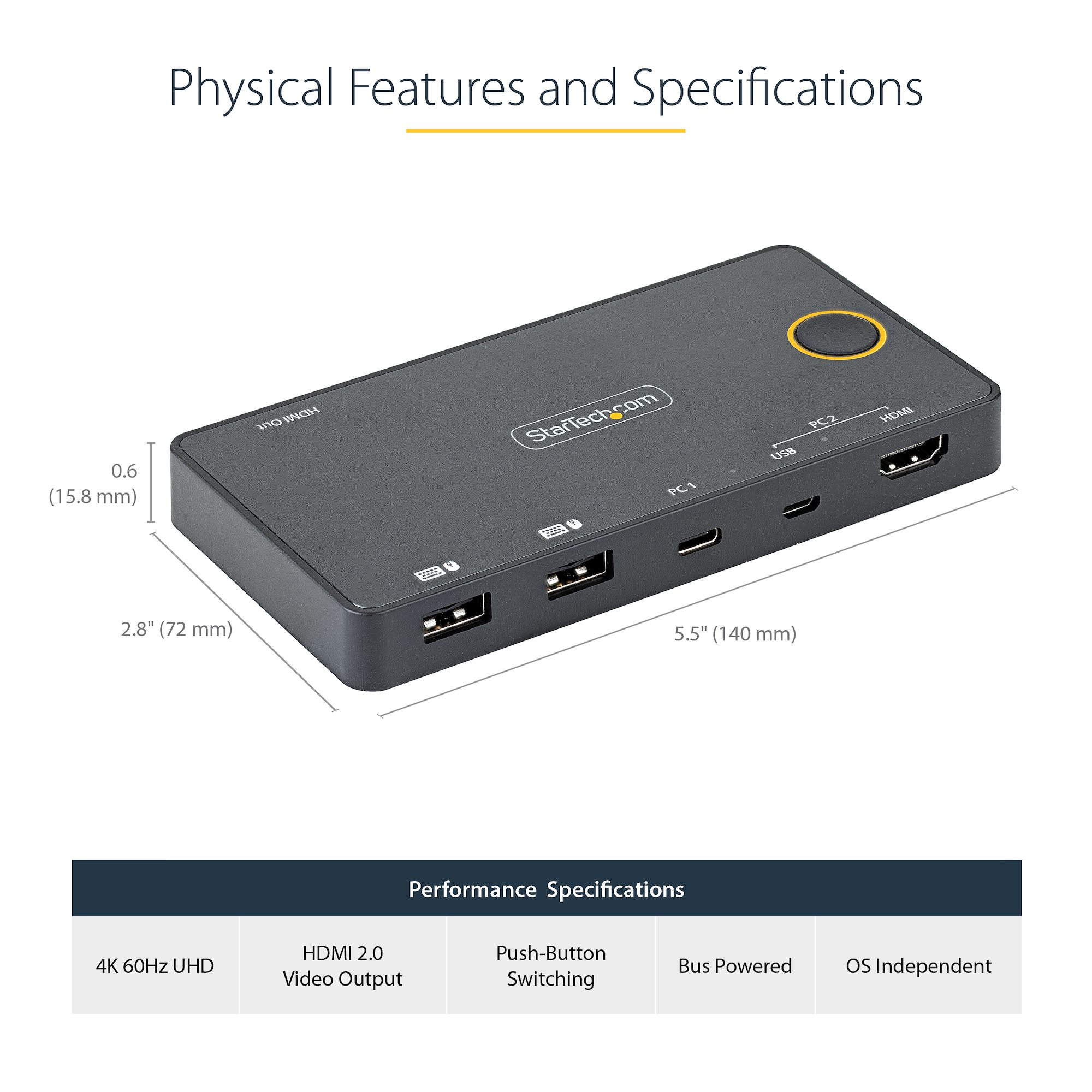

Weight & dimensions
| Specification | Value |
|---|---|
| Width | 138 mm |
| Depth | 70 mm |
| Height | 15 mm |
| Weight | 200 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 120 mm |
| Package depth | 172 mm |
| Package height | 85 mm |
| Package weight | 250 g |

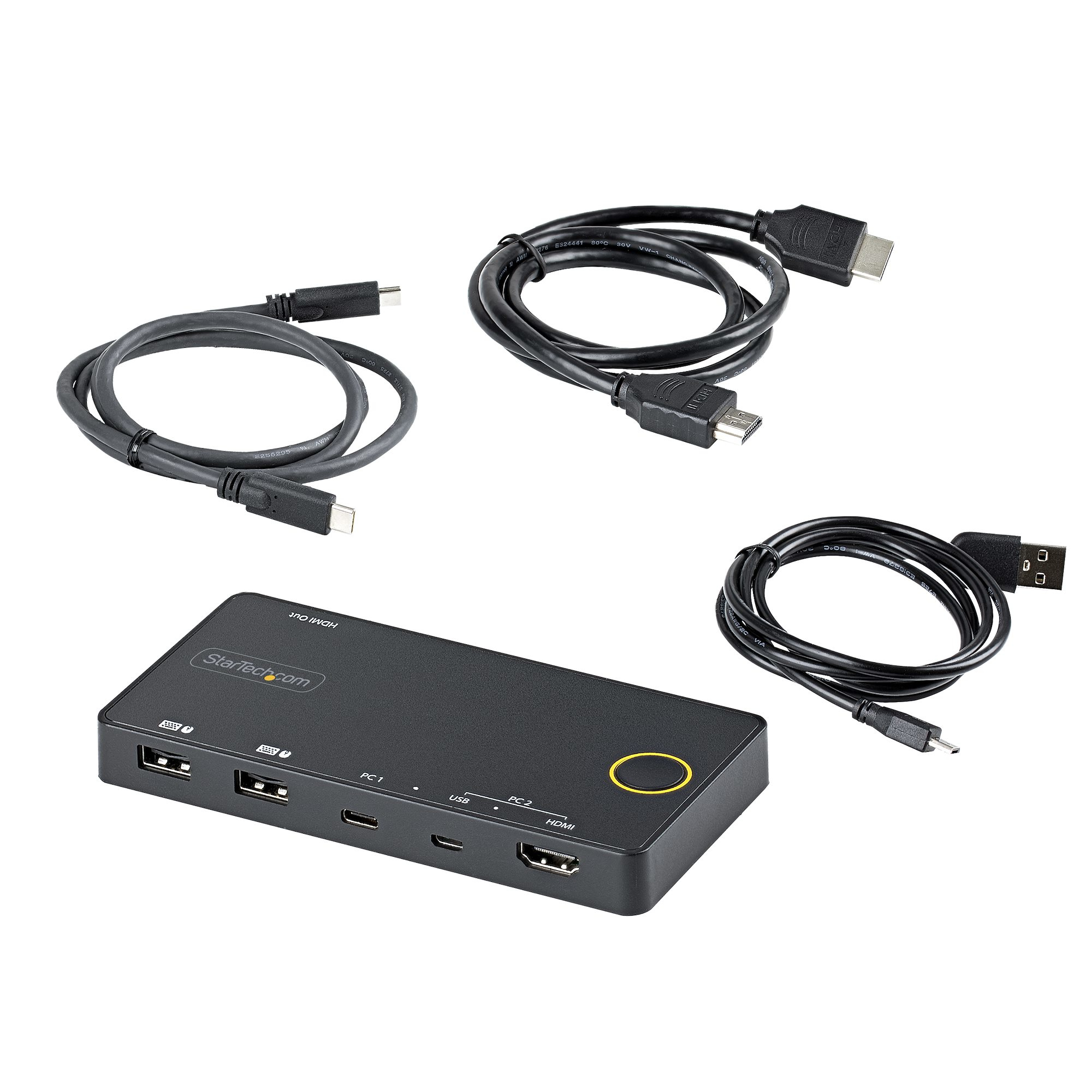

Packaging content
| Specification | Value |
|---|---|
| Cables included | HDMI, Micro-USB, USB Type-C to USB Type-C |
| Quick installation guide | Yes |
Other features
| Specification | Value |
|---|---|
| IP control | No |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176200 |
| Master (outer) case width | 410 mm |
| Master (outer) case length | 470 mm |
| Master (outer) case height | 370 mm |
| Products per master (outer) case | 20 pc(s) |
