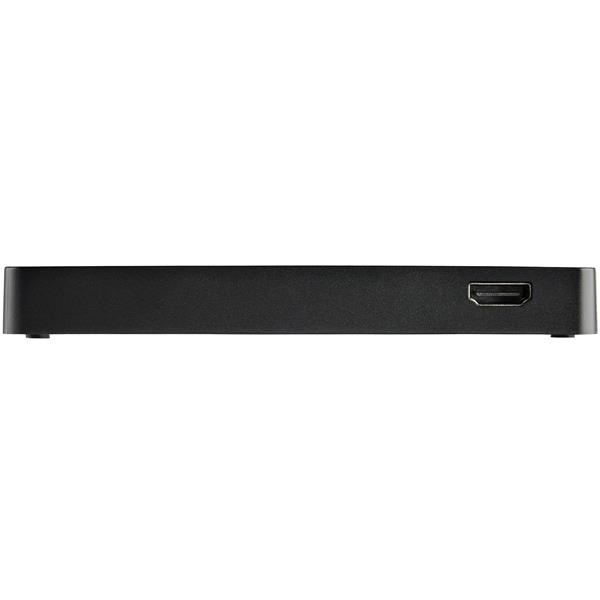

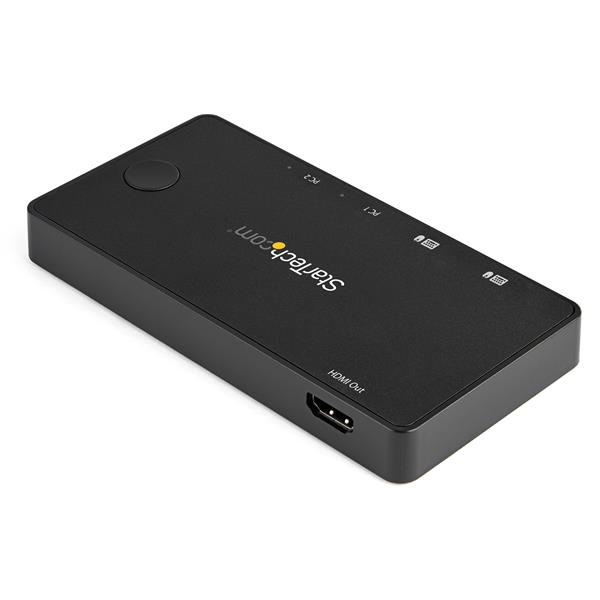

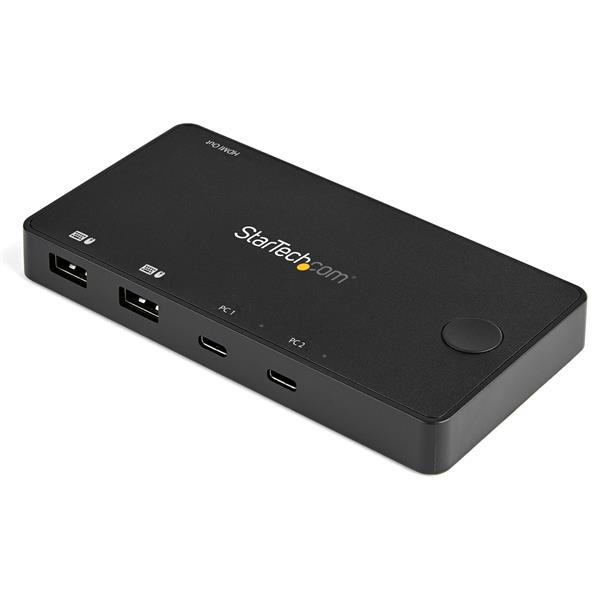

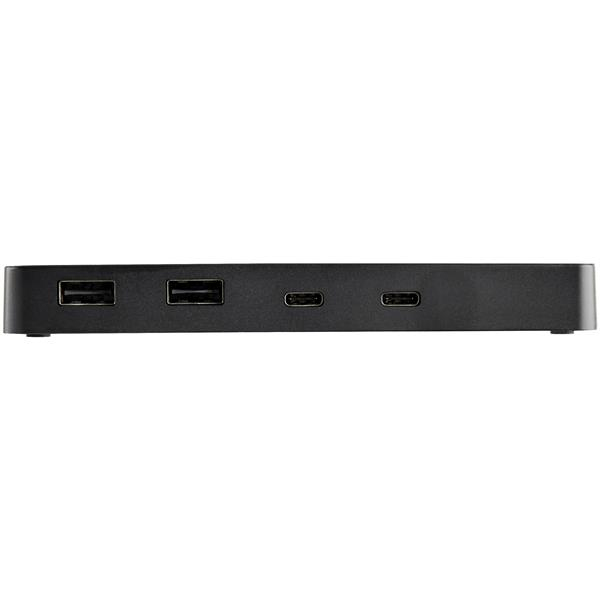

2 Port USB C KVM Switch - 4K
60Hz HDMI - Compact Dual Port UHD USB Type C Desktop Mini KVM Switch with USB C Cables - Bus Powered - MacBook iPad Pr
Model SV211HDUCEAN 065030882170
43 specifications
- Weight265 g
- ColourBlack
- Number of computers controlled2
- HD type4K Ultra HD
- Rack mountingNo
- Operating temperature (T-T)5 - 35 °C
Overview
- Weight
- 265 g
- Colour
- Black
- Number of computers controlled
- 2
- HD type
- 4K Ultra HD
- Rack mounting
- No
- Operating temperature (T-T)
- 5 - 35 °C
- Brand
- StarTech.com
- Category
- KVM Switch
- Model
- SV211HDUC
- Part number
- SV211HDUC
- EAN / UPC
- 065030882170, 650308821700
- Also known as
- StarTech.com 2 Port USB C KVM Switch - 4K 60Hz HDMI - Compact Dual Port UHD USB Type C Desktop Mini KVM Switch with USB C Cables - Bus Powered - MacBook iPad Pr
Specifications
43 specifications in 11 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Number of computers controlled | 2 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | DisplayPort |
| HDMI ports quantity | 1 |
| HDMI version | 2.0 |
| DisplayPort version | 1.2 |
| Console USB ports quantity | 2 |
| Console ports | HDMI, USB A |
Performance
| Specification | Value |
|---|---|
| HD type | 4K Ultra HD |
| Maximum resolution | 3840 x 2160 pixels |
| Data transfer rate (max) | 480 Gbit/s |
| Daisy chain | No |
| Audio channels | 7.1 |
| Chipset | Parade - PS176, VLI - VL170, Terminus - FE1.1S |
Design
| Specification | Value |
|---|---|
| Rack mounting | No |
| Product colour | Black |
| Housing material | Plastic |
| LED indicators | Yes |
| Hot keys | No |
| Mean time between failures (MTBF) | 50000 h |
| Certification | REACH, CE |
Display
| Specification | Value |
|---|---|
| On Screen Display (OSD) | No |
Sustainability
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 35 °C |
| Storage temperature (T-T) | -20 - 50 °C |
| Operating relative humidity (H-H) | 20 - 80% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 140 mm |
| Depth | 72 mm |
| Height | 16 mm |
| Weight | 265 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 127 mm |
| Package depth | 177 mm |
| Package height | 86 mm |
| Package weight | 600 g |
Packaging content
| Specification | Value |
|---|---|
| Cables included | USB Type-C |
| Quick installation guide | Yes |
Other features
| Specification | Value |
|---|---|
| IP control | No |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176200 |
| Master (outer) case width | 414 mm |
| Master (outer) case length | 478 mm |
| Master (outer) case height | 318 mm |
| Products per master (outer) case | 20 pc(s) |
