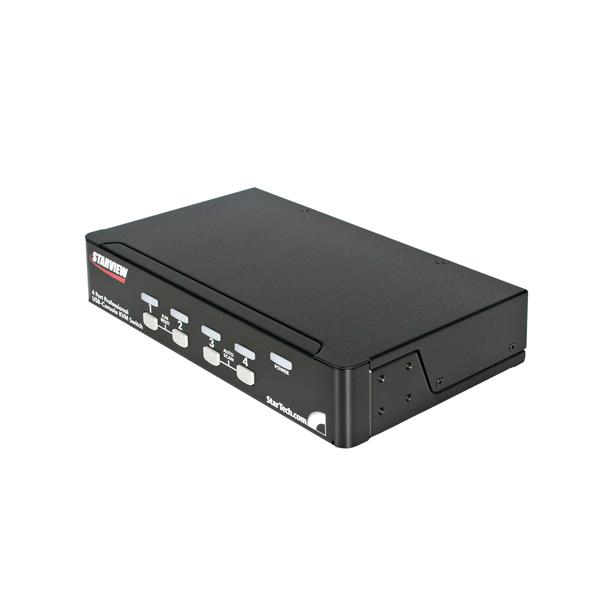

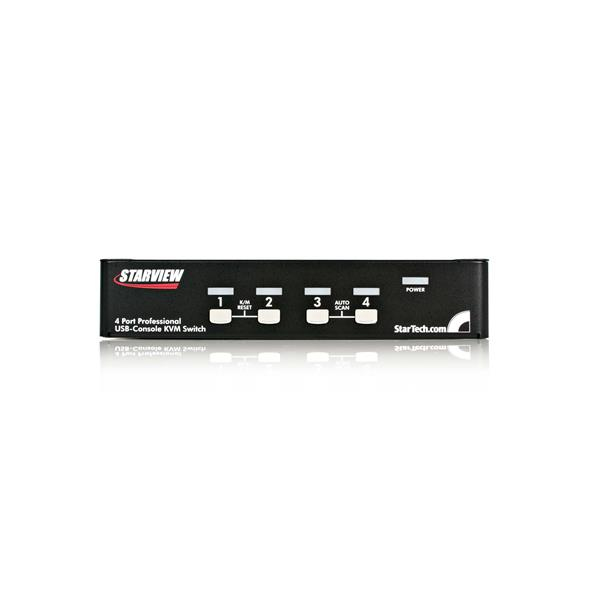

StarView 4 Port USB Console KVM switch
Model StarView 4 Port USB Console KVM switchPart no. SV431DUSBEAN 065030820639
42 specifications
- Weight1.5 kg
- ColourBlack
- Number of computers controlled4
- Maximum resolution1920 x 1440 pixels
- Rack capacity1U
- Built-in displayNo
Overview
- Weight
- 1.5 kg
- Colour
- Black
- Number of computers controlled
- 4
- Maximum resolution
- 1920 x 1440 pixels
- Rack capacity
- 1U
- Built-in display
- No
- Brand
- StarTech.com
- Category
- KVM Switch
- Model
- StarView 4 Port USB Console KVM switch
- Part number
- SV431DUSB
- EAN / UPC
- 065030820639, 650308206392
- Also known as
- StarTech.com 4 Port 1U Rackmount USB PS/2 KVM Switch with OSD
Specifications
42 specifications in 10 groups

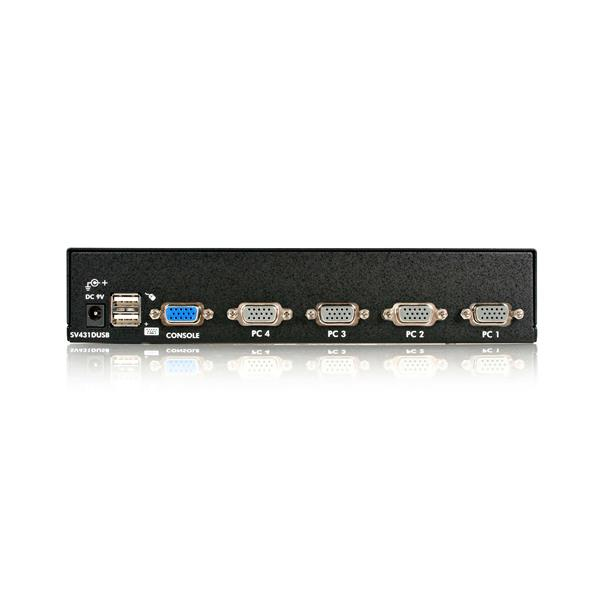

Ports & interfaces
| Specification | Value |
|---|---|
| Number of computers controlled | 4 |
| Keyboard port type | USB, PS/2 |
| Mouse port type | USB, PS/2 |
| Video port type | VGA |
| Console USB ports quantity | 4 |
| Console ports | VGA (D-Sub) |
| USB connector type | USB Type-A |
| DC-in jack | Yes |
Performance
| Specification | Value |
|---|---|
| Maximum resolution | 1920 x 1440 pixels |
| Plug and Play | Yes |
| Daisy chain | No |
| Number of users | 1 user(s) |
Design
| Specification | Value |
|---|---|
| Rack capacity | 1U |
| Rack mounting | Yes |
| Product colour | Black |
| Housing material | Steel |
| Hot keys | Yes |
Display
| Specification | Value |
|---|---|
| Built-in display | No |
| On Screen Display (OSD) | No |
Power
| Specification | Value |
|---|---|
| Input voltage | 110-240 V |
| Input current | 0.2 A |
| Output voltage | 9 V |
| Output current | 0.6 A |
| Power consumption (typical) | 5.4 W |
| Power plug type | Type M |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 130 mm |
| Depth | 220 mm |
| Height | 43 mm |
| Weight | 1.5 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 88 mm |
| Package depth | 410 mm |
| Package height | 212 mm |
| Package weight | 1.7 kg |

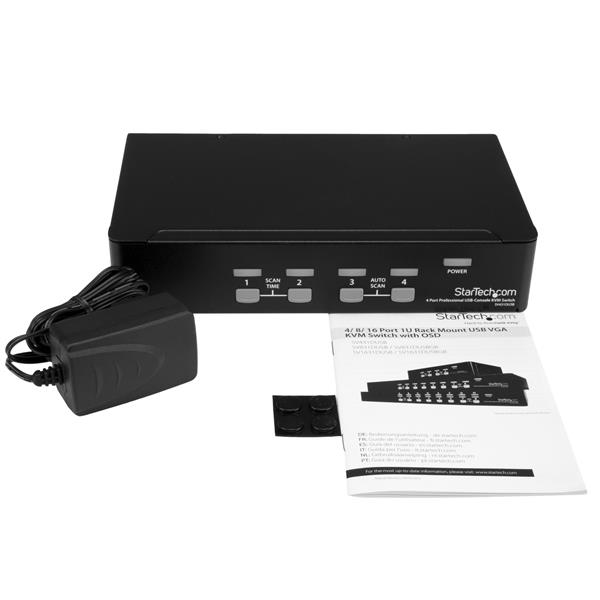

Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Manual | Yes |
Other features
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 130 x 220 x 43 mm |
| Ports quantity | 4 |
| Audio support | No |
| IP control | No |
