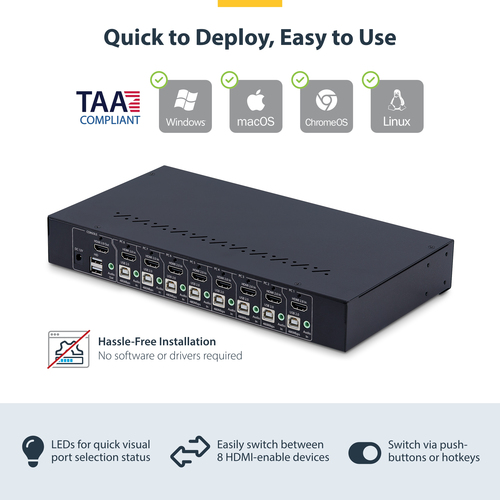

8-Port HDMI KVM Switch with 1U Rack Mount Kit, 4K
60Hz HDMI 2.0, Push-Button & Hotkey Switching, 4-Port USB Hub, OS Independent, TAA Compliant
Model R8AH202-KVM-SWITCHEAN 065030907231
55 specifications
- Weight1.5 kg
- ColourBlack
- Number of computers controlled8
- HD type4K Ultra HD
- Rack capacity1U
- Built-in displayNo
Overview
- Weight
- 1.5 kg
- Colour
- Black
- Number of computers controlled
- 8
- HD type
- 4K Ultra HD
- Rack capacity
- 1U
- Built-in display
- No
- Brand
- StarTech.com
- Category
- KVM Switch
- Model
- R8AH202-KVM-SWITCH
- Part number
- R8AH202-KVM-SWITCH
- EAN / UPC
- 065030907231
- Also known as
- StarTech.com 8-Port HDMI KVM Switch with 1U Rack Mount Kit, 4K 60Hz HDMI 2.0, Push-Button & Hotkey Switching, 4-Port USB Hub, OS Independent, TAA Compliant
Specifications
55 specifications in 12 groups

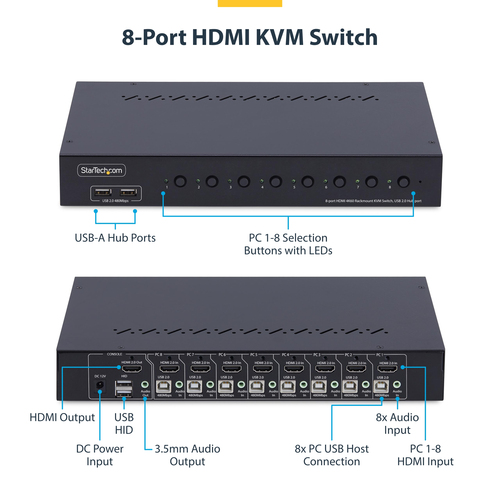

Ports & interfaces
| Specification | Value |
|---|---|
| Number of computers controlled | 8 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | HDMI |
| HDMI ports quantity | 8 |
| HDMI version | 2.0 |
| USB 2.0 Type-B ports quantity | 8 |
| Console USB ports quantity | 4 |
| Console ports | 3.5mm headphone, HDMI, USB A |
| Headphone outputs | 1 |
| Number of microphone inputs | 8 |
| DC-in jack | Yes |
Performance
| Specification | Value |
|---|---|
| HD type | 4K Ultra HD |
| Maximum resolution | 3840 x 2160 pixels |
| Data transfer rate (max) | 0.48 Gbit/s |
| Scan interval | 10,20,30,40,50,60,70,80,90,100 s |
| Daisy chain | No |
| Audio channels | 2.0 |
Design
| Specification | Value |
|---|---|
| Rack capacity | 1U |
| Rack mounting | Yes |
| Product colour | Black |
| Housing material | Zinc |
| LED indicators | Yes |
| Push button | Yes |
| Hot keys | Yes |
| Mean time between failures (MTBF) | 73905 h |
Display
| Specification | Value |
|---|---|
| Built-in display | No |
| On Screen Display (OSD) | No |
Power
| Specification | Value |
|---|---|
| Power source | DC |
| Input voltage | 100 - 240 V |
| Input current | 1 A |
| Output voltage | 12 V |
| Output current | 3 A |
| Compatible power plug types | AU, EU, UK, US |
| Power consumption (typical) | 36 W |
| Power plug type | Type M |
Sustainability
| Specification | Value |
|---|---|
| Compliance certificates | Federal Communications Commission (FCC), Trade Agreements Act (TAA) |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 164 mm |
| Depth | 300 mm |
| Height | 44 mm |
| Weight | 1.5 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 435 mm |
| Package depth | 288 mm |
| Package height | 70 mm |
| Package weight | 2.3 kg |

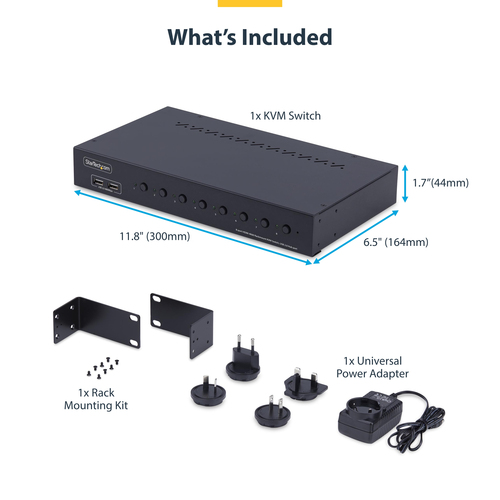

Packaging content
| Specification | Value |
|---|---|
| Quick installation guide | Yes |
| Rack mount kit | Yes |
Other features
| Specification | Value |
|---|---|
| IP control | No |
Logistics data
| Specification | Value |
|---|---|
| Master (outer) case width | 585 mm |
| Master (outer) case length | 545 mm |
| Master (outer) case height | 270 mm |
| Products per master (outer) case | 5 pc(s) |
