StarTech.com 8-Port DisplayPort KVM Switch with 1U Rack Mount Kit, 4K
StarTech.com

8-Port DisplayPort KVM Switch with 1U Rack Mount Kit, 4K

60Hz DP 1.2, Push-Button & Hotkey Switching, 4-Port USB Hub, OS Independent, TAA Compliant

Model R8AD122-KVM-SWITCHEAN 065030907224

57 specifications
  • Weight1.5 kg
  • ColourBlack
  • Number of computers controlled8
  • HD type4K Ultra HD
  • Rack capacity1U
  • Built-in displayNo
See all specifications

Overview

Weight
1.5 kg
Colour
Black
Number of computers controlled
8
HD type
4K Ultra HD
Rack capacity
1U
Built-in display
No
Brand
StarTech.com
Category
KVM Switch
Model
R8AD122-KVM-SWITCH
Part number
R8AD122-KVM-SWITCH
EAN / UPC
065030907224
Also known as
StarTech.com 8-Port DisplayPort KVM Switch with 1U Rack Mount Kit, 4K 60Hz DP 1.2, Push-Button & Hotkey Switching, 4-Port USB Hub, OS Independent, TAA Compliant

Specifications

57 specifications in 12 groups

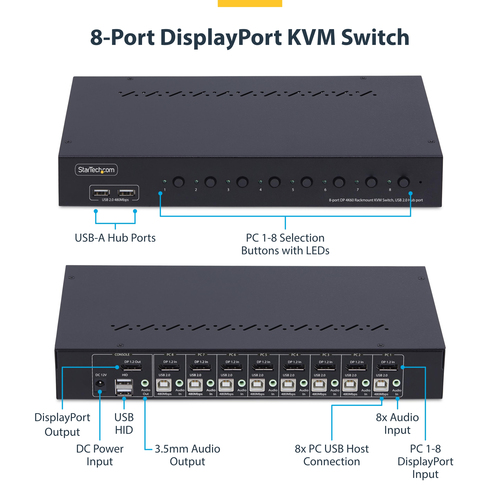

Ports & interfaces

Number of computers controlled8
Keyboard port typeUSB
Mouse port typeUSB
Video port typeDisplayPort
DisplayPorts quantity8
DisplayPort version1.2
USB 2.0 Type-B ports quantity8
Console USB ports quantity4
Console ports3.5mm headphone, DisplayPort, USB A
Audio connectionsYes
Headphone outputs1
Number of microphone inputs8
DC-in jackYes

Performance

HD type4K Ultra HD
Maximum resolution3840 x 2160 pixels
Data transfer rate (max)0.48 Gbit/s
Scan interval10,20,30,40,50,60,70,80,90,100 s
Daisy chainNo
Audio channels2.0

Design

Rack capacity1U
Rack mountingYes
Product colourBlack
Housing materialZinc
LED indicatorsYes
Push buttonYes
Hot keysYes
Mean time between failures (MTBF)73003 h

Display

Built-in displayNo
On Screen Display (OSD)No

Power

Power sourceDC
Input voltage100 - 240 V
Input current1 A
Output voltage12 V
Output current3 A
Compatible power plug typesAU, EU, UK, US
Power consumption (typical)36 W
Power plug typeType M

Sustainability

Compliance certificatesFederal Communications Commission (FCC), Trade Agreements Act (TAA)

Operational conditions

Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-20 - 60 °C
Operating relative humidity (H-H)0 - 90%

Weight & dimensions

Width164 mm
Depth300 mm
Height44 mm
Weight1.5 kg

Packaging data

Package width435 mm
Package depth288 mm
Package height70 mm
Package weight2.3 kg

Packaging content

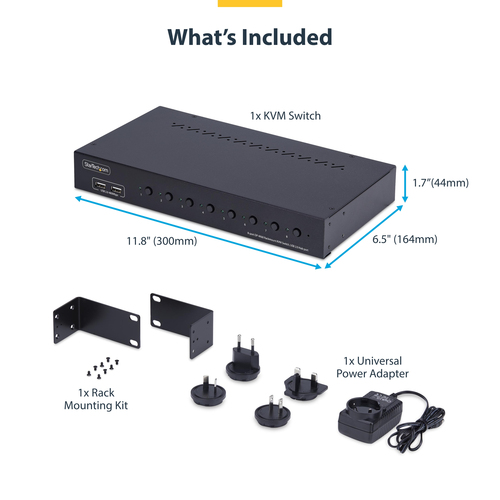

Quick installation guideYes
Rack mount kitYes

Other features

Audio supportYes
IP controlNo

Logistics data

Master (outer) case width466 mm
Master (outer) case length390 mm
Master (outer) case height316 mm
Products per master (outer) case5 pc(s)
