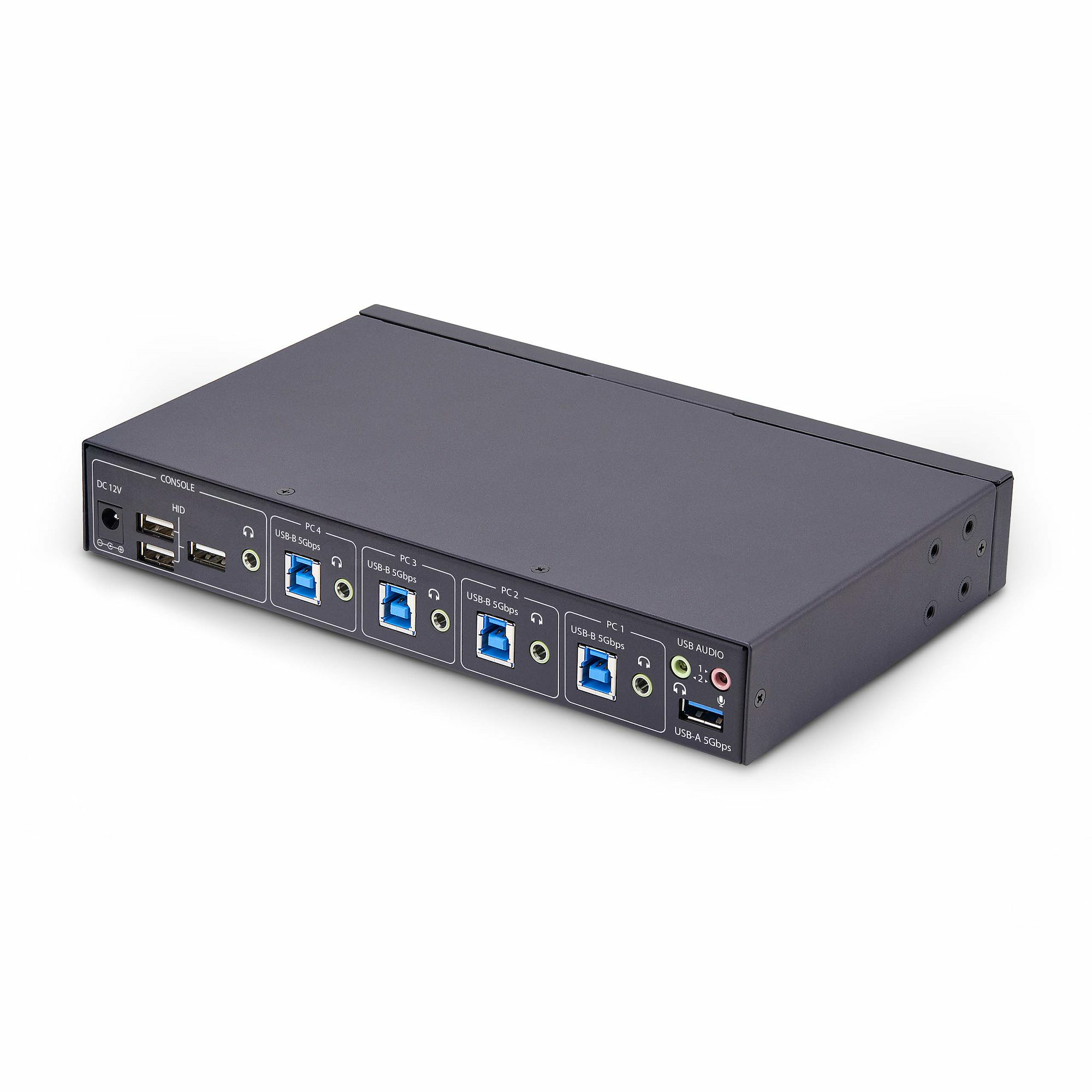

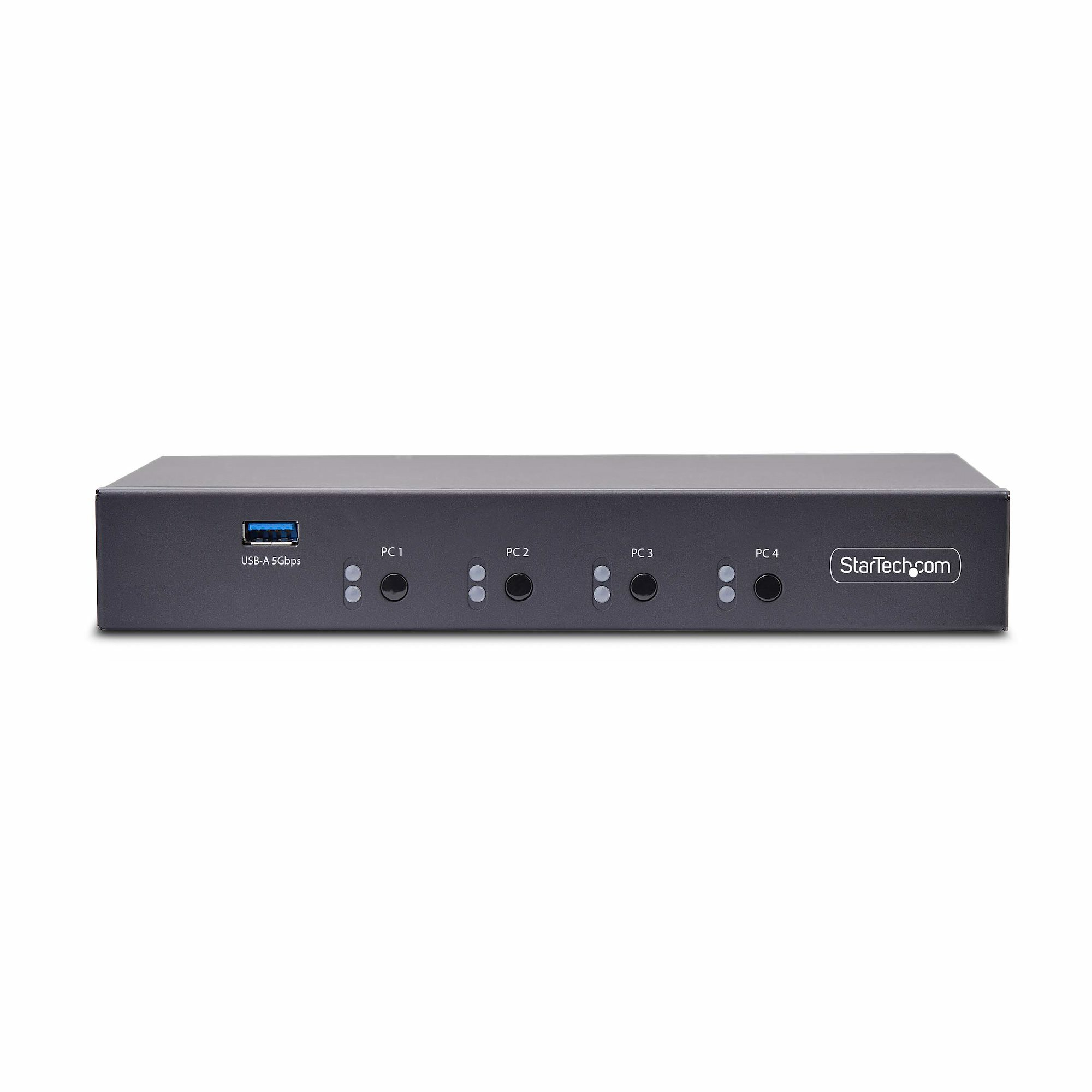

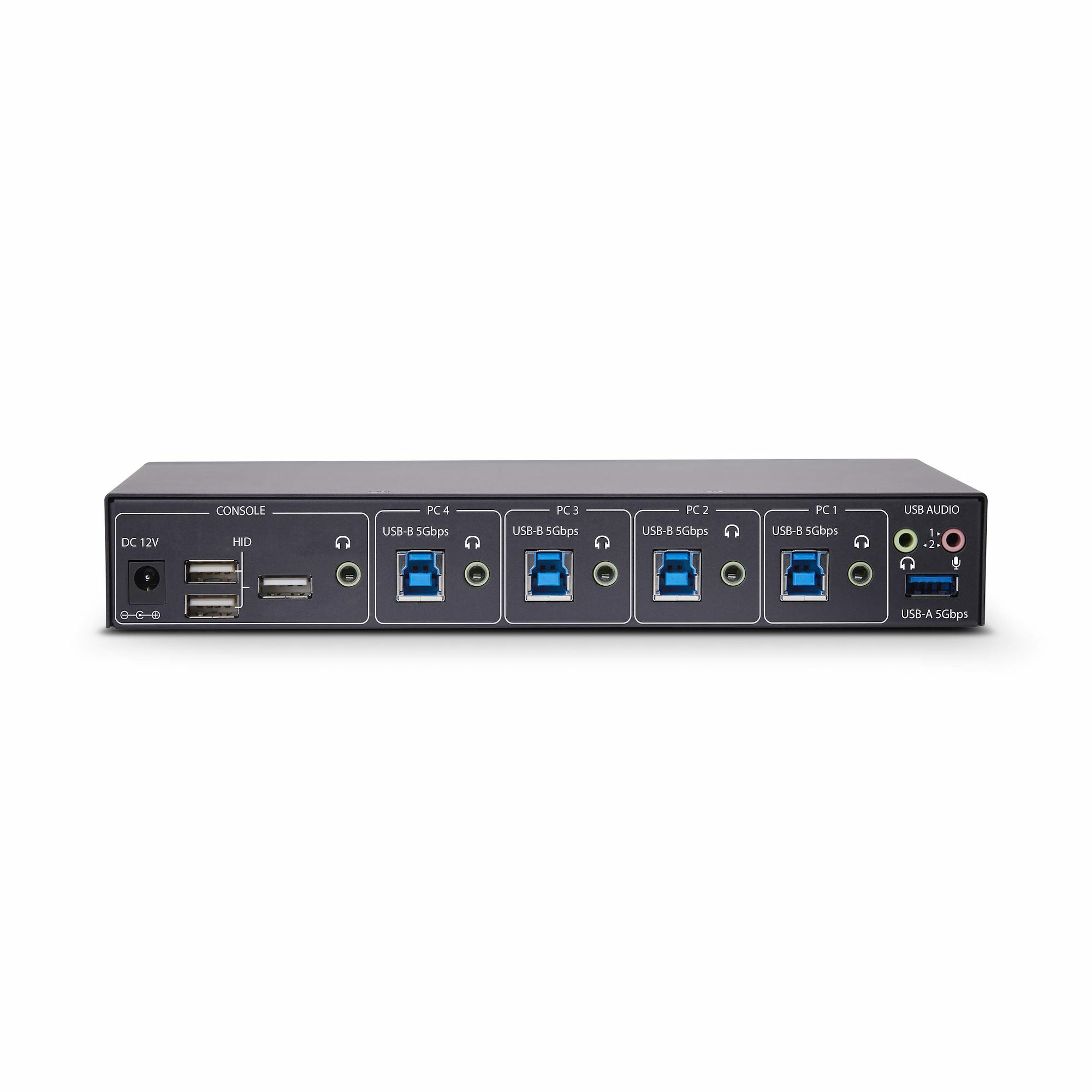

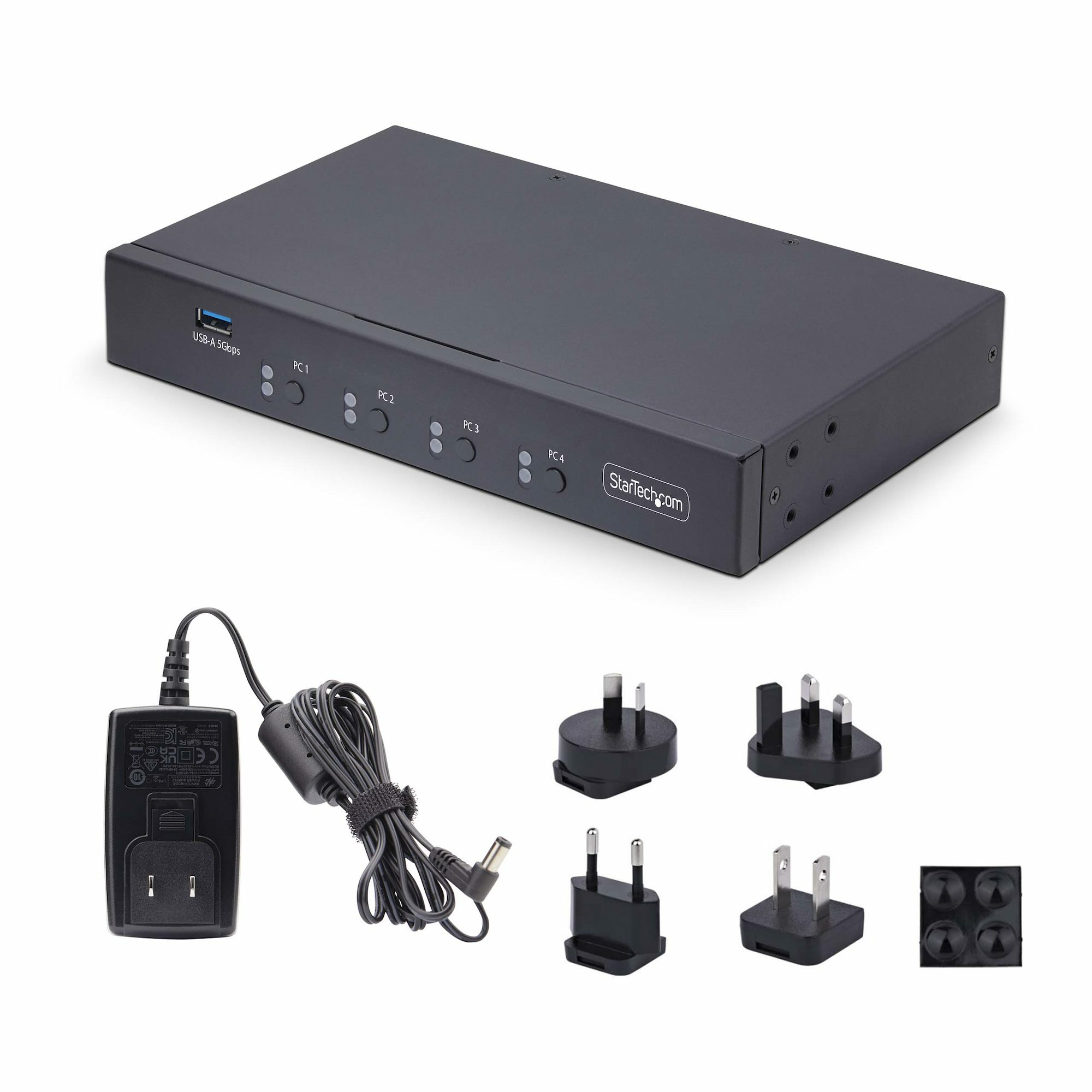

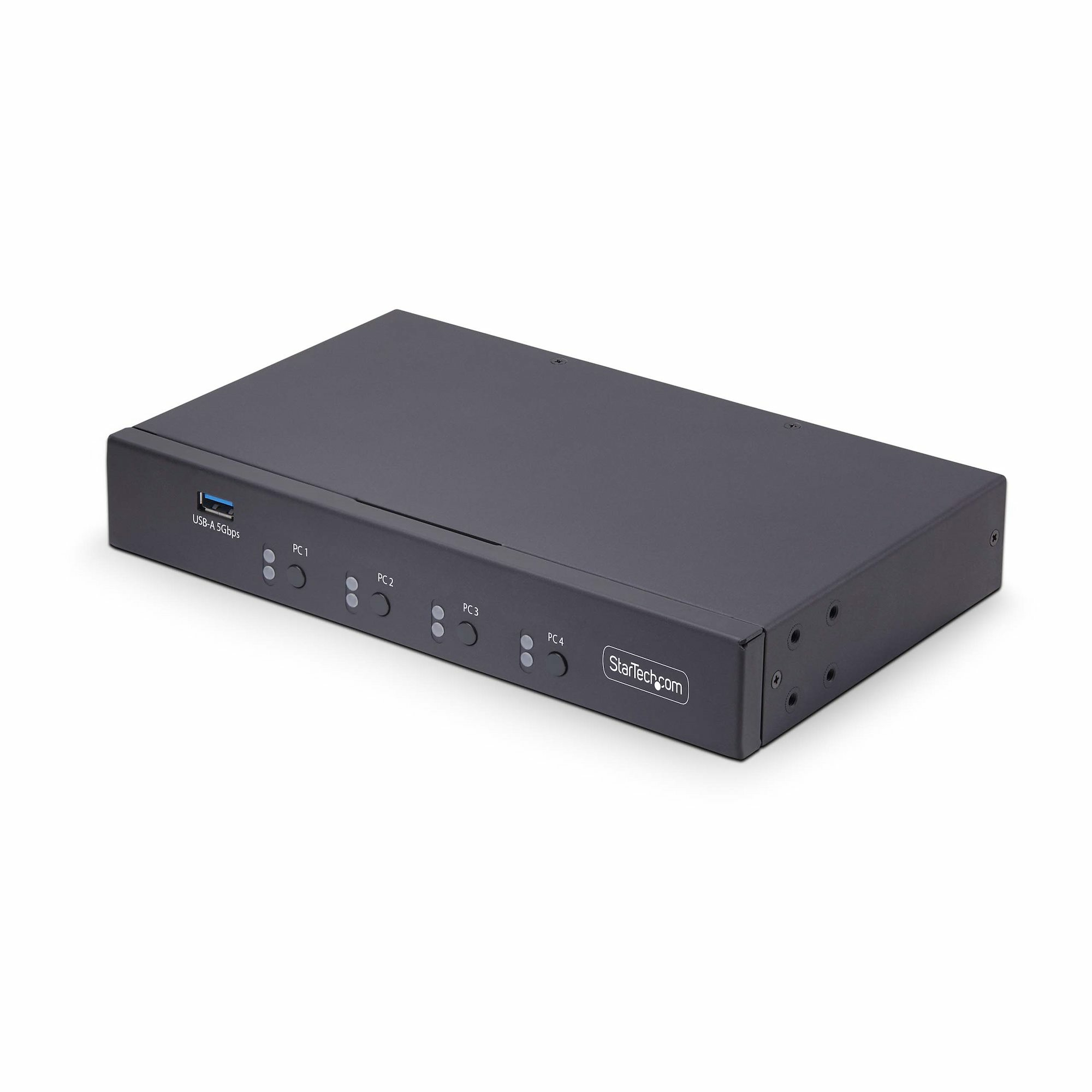

StarTech.com 4-Port KM Switch with Mouse Switching, USB Switch for Keyboard/Mouse
StarTech.com

4-Port KM Switch with Mouse Switching, USB Switch for Keyboard/Mouse

3.5mm/USB Audio, Peripheral Sharing for 4 Computers, TAA Compliant

Model P4A20132-KM-SWITCHEAN 065030902250

47 specifications
  • Weight800 g
  • ColourBlack
  • Number of computers controlled4
  • HD typeNot supported
  • Built-in displayNo
  • Input voltage100 - 240 V
See all specifications

Overview

Weight
800 g
Colour
Black
Number of computers controlled
4
HD type
Not supported
Built-in display
No
Input voltage
100 - 240 V
Brand
StarTech.com
Category
KVM Switch
Model
P4A20132-KM-SWITCH
Part number
P4A20132-KM-SWITCH
EAN / UPC
065030902250
Also known as
StarTech.com 4-Port KM Switch with Mouse Switching, USB Switch for Keyboard/Mouse, 3.5mm/USB Audio, Peripheral Sharing for 4 Computers, TAA Compliant

Specifications

47 specifications in 12 groups

Ports & interfaces

Number of computers controlled4
Keyboard port typeUSB
Mouse port typeUSB
USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity4
Console ports3.5mm headphone, 3.5mm mic, USB A
USB 2.0 Type-A hub ports quantity3
USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity2
Audio connectionsYes
Headphone outputs6
Number of microphone inputs1
DC-in jackYes

Performance

HD typeNot supported
Data transfer rate (max)5 Gbit/s
ChipsetGL3523

Design

Product colourBlack
LED indicatorsYes
Push buttonYes
Hot keysYes
Mean time between failures (MTBF)156000 h

Display

Built-in displayNo
On Screen Display (OSD)No

Power

Input voltage100 - 240 V
Input current0.6 A
Output voltage12 V
Output current5 A
Compatible power plug typesAU, EU, UK, US
External power adapterYes
Power plug typeType M

Sustainability

Compliance certificatesRoHS, Trade Agreements Act (TAA)
Sustainability complianceYes

Operational conditions

Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-10 - 60 °C
Operating relative humidity (H-H)0 - 80%

Weight & dimensions

Width130 mm
Depth220 mm
Height34 mm
Weight800 g

Packaging data

Package width295 mm
Package depth245 mm
Package height63 mm
Package weight180 g

Packaging content

Quick installation guideYes

Other features

IP controlNo

Logistics data

Master (outer) case width320 mm
Master (outer) case length505 mm
Master (outer) case height290 mm
Products per master (outer) case8 pc(s)
