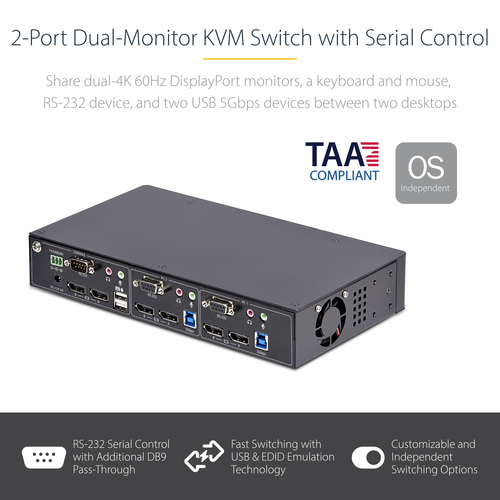

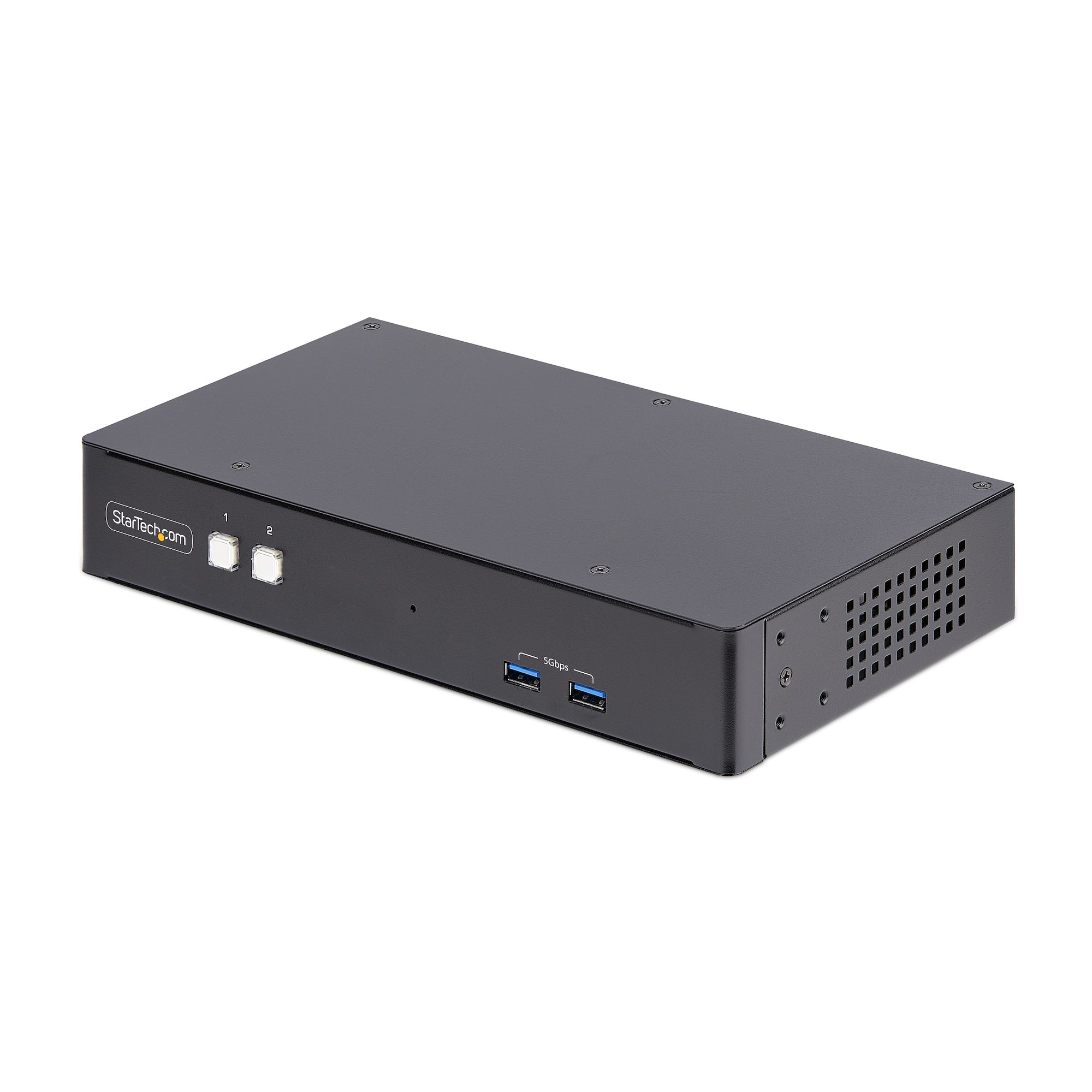

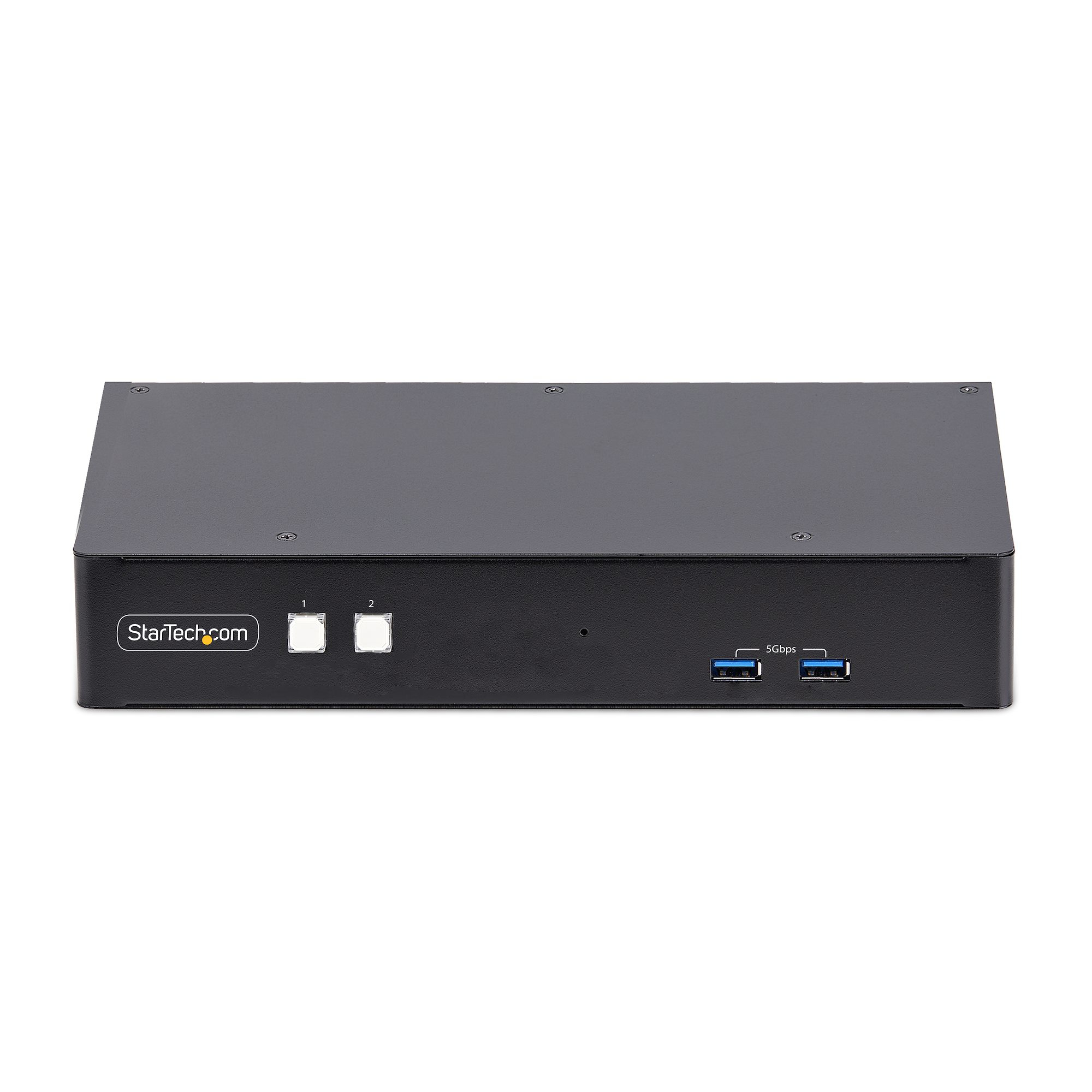

StarTech.com 2-Port Dual-Monitor DisplayPort KVM Switch, RS232 Serial Control, 4K
StarTech.com

2-Port Dual-Monitor DisplayPort KVM Switch, RS232 Serial Control, 4K

60Hz, 2x USB 5Gbps Hub Ports, 2x USB 2.0 HID Ports, Hotkey/Pushbutton Switchin

Model P2DD46A22-KVM-SWITCHEAN 065030900485

55 specifications
  • Weight1.1 kg
  • ColourBlack
  • Number of computers controlled2
  • HD type4K Ultra HD
  • Rack mountingNo
  • Power sourceDC
See all specifications

Overview

Weight
1.1 kg
Colour
Black
Number of computers controlled
2
HD type
4K Ultra HD
Rack mounting
No
Power source
DC
Brand
StarTech.com
Category
KVM Switch
Model
P2DD46A22-KVM-SWITCH
Part number
P2DD46A22-KVM-SWITCH
EAN / UPC
065030900485
Also known as
StarTech.com 2-Port Dual-Monitor DisplayPort KVM Switch, RS232 Serial Control, 4K 60Hz, 2x USB 5Gbps Hub Ports, 2x USB 2.0 HID Ports, Hotkey/Pushbutton Switchin

Specifications

55 specifications in 11 groups

Ports & interfaces

Number of computers controlled2
Keyboard port typeUSB
Mouse port typeUSB
Video port typeDisplayPort
DisplayPorts quantity4
DisplayPort version1.2
USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity2
Console USB ports quantity4

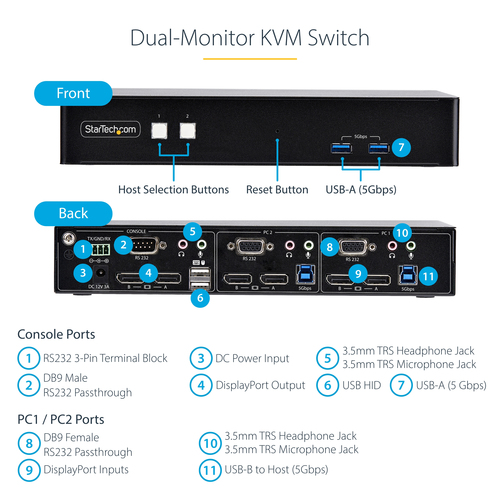

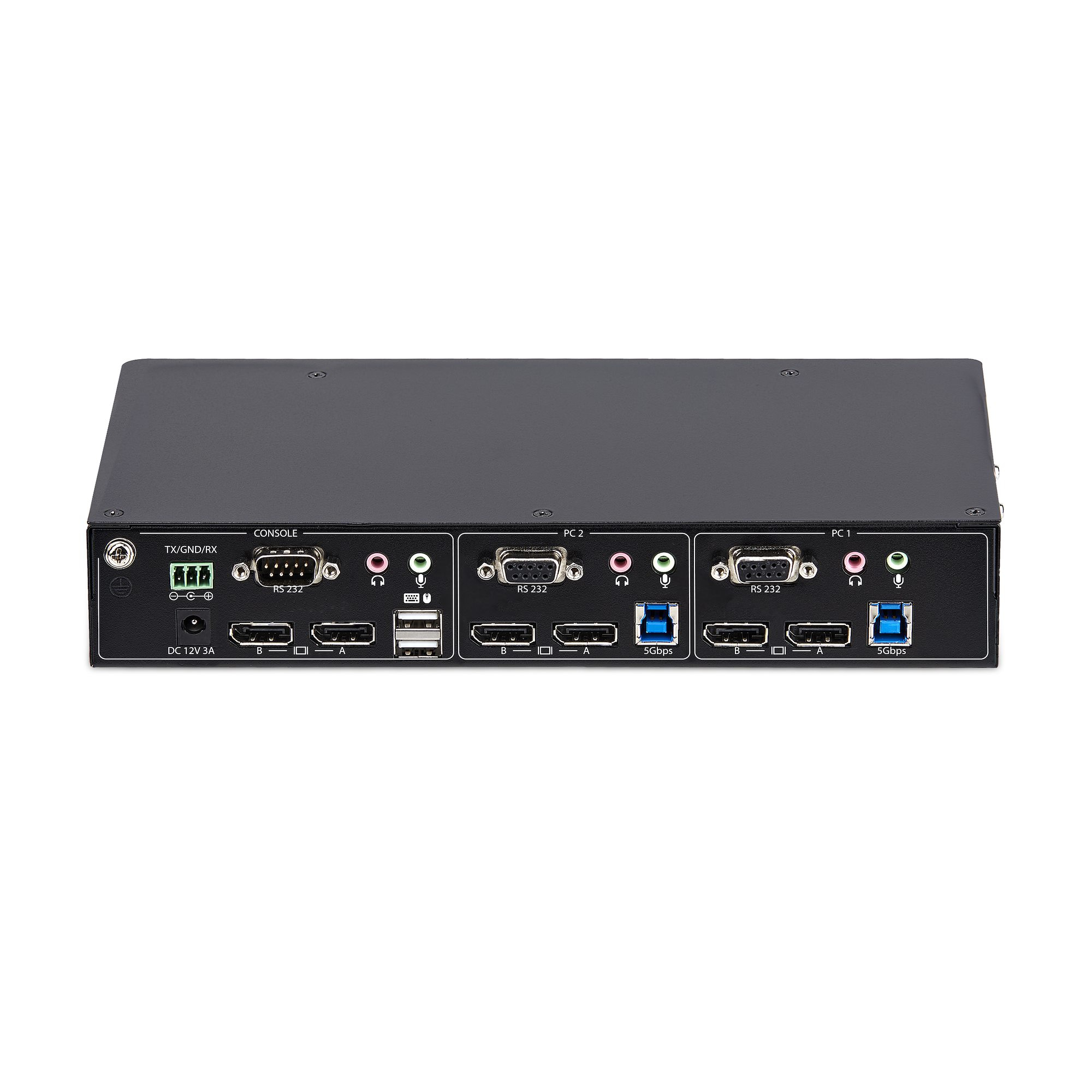

Console ports3.5mm headphone, 3.5mm mic, DisplayPort, USB A
Console DisplayPorts ports quantity2
Serial port typeDE-9 (DB-9)
Serial ports quantity3
Audio connectionsYes
Headphone outputs3
Number of microphone inputs3

Performance

HD type4K Ultra HD
Maximum resolution3840 x 2160 pixels
Data transfer rate (max)5 Gbit/s
Scan interval10,20,30,40,50,60 s
Plug and PlayYes
Daisy chainNo

Design

Rack mountingNo
Product colourBlack
Housing materialSteel, Zinc
LED indicatorsYes
Push buttonYes
Hot keysYes
Mean time between failures (MTBF)80907 h

Display

Built-in displayNo
On Screen Display (OSD)Yes

Power

Power sourceDC
Input voltage100 - 240 V
Input current1 A
Output voltage12 V
Output current3 A
External power adapterYes

Operational conditions

Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-20 - 60 °C
Operating relative humidity (H-H)0 - 90%

Weight & dimensions

Width130 mm
Depth255 mm
Height40 mm
Weight1.1 kg

Packaging data

Package width301 mm
Package depth286 mm
Package height81 mm
Package weight2.1 kg

Packaging content

Cables includedDisplayPort, USB Type-A to USB Type-B
AC adapter includedYes
Quick installation guideYes

Other features

IP controlNo

Logistics data

Master (outer) case width606 mm
Master (outer) case length429 mm
Master (outer) case height327 mm
Products per master (outer) case10 pc(s)
