Secure 2-Port KVM Switch, DisplayPort, 4K
60Hz, NIAP 4.0 Desktop KVM, CAC, Metal Housing, Made in the USA
Model CK4-P102CEAN 735816643669
45 specifications
- Weight1.7 kg
- ColourBlack
- Number of computers controlled2
- HD type4K Ultra HD
- Rack mountingNo
- Power sourceDC
Overview
- Weight
- 1.7 kg
- Colour
- Black
- Number of computers controlled
- 2
- HD type
- 4K Ultra HD
- Rack mounting
- No
- Power source
- DC
- Brand
- StarTech.com
- Category
- KVM Switch
- Model
- CK4-P102C
- Part number
- CK4-P102C
- EAN / UPC
- 735816643669
- Also known as
- StarTech.com Secure 2-Port KVM Switch, DisplayPort, 4K 60Hz, NIAP 4.0 Desktop KVM, CAC, Metal Housing, Made in the USA
Specifications
45 specifications in 11 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Number of computers controlled | 2 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | DisplayPort |
| DisplayPorts quantity | 2 |
| USB 2.0 Type-B ports quantity | 4 |
| Console USB ports quantity | 3 |

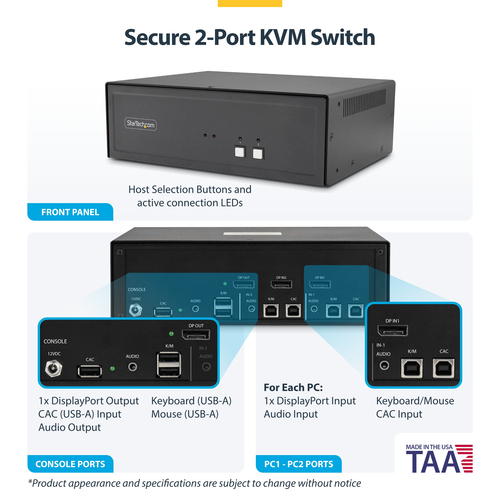

| Console ports | 3.5mm headphone, DisplayPort, USB A |
| Console DisplayPorts ports quantity | 1 |
| Audio connections | Yes |
| Headphone outputs | 1 |
| Number of microphone inputs | 2 |
| DC-in jack | Yes |
Performance
| Specification | Value |
|---|---|
| HD type | 4K Ultra HD |
| Maximum resolution | 3840 x 2160 pixels |
| Daisy chain | No |
| Maximum refresh rate | 30 Hz |
| Audio channels | 2.0 |
| Number of displays supported | 1 |
Design
| Specification | Value |
|---|---|
| Rack mounting | No |
| Product colour | Black |
| Housing material | Metal |
| Maximum cable length | 6 m |
| LED indicators | Yes |
| Push button | Yes |
| Hot keys | No |
Display
| Specification | Value |
|---|---|
| Built-in display | No |
| On Screen Display (OSD) | No |
Power
| Specification | Value |
|---|---|
| Power source | DC |
Sustainability
| Specification | Value |
|---|---|
| Compliance certificates | Trade Agreements Act (TAA), Federal Communications Commission (FCC), RoHS |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 170 mm |
| Depth | 224 mm |
| Height | 67 mm |
| Weight | 1.7 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 318 mm |
| Package depth | 241 mm |
| Package height | 102 mm |
Other features
| Specification | Value |
|---|---|
| IP control | No |
Logistics data
| Specification | Value |
|---|---|
| Master (outer) case width | 610 mm |
| Master (outer) case length | 457 mm |
| Master (outer) case height | 457 mm |
| Products per master (outer) case | 13 pc(s) |
