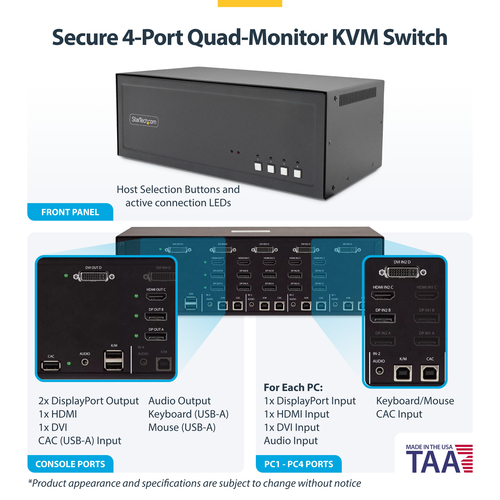

Secure 4-Port Quad-Monitor KVM Switch, HDMI / DisplayPort / DVI, NIAP 4.0 Desktop KVM, Metal Housing, CAC Port, Made in the USA
Model CK4-HPD404CEAN 735816523732
40 specifications
- Weight1.9 kg
- ColourBlack
- Number of computers controlled4
- Daisy chainNo
- Power sourceDC
- Operating temperature (T-T)0 - 40 °C
Overview
- Weight
- 1.9 kg
- Colour
- Black
- Number of computers controlled
- 4
- Daisy chain
- No
- Power source
- DC
- Operating temperature (T-T)
- 0 - 40 °C
- Brand
- StarTech.com
- Category
- KVM Switch
- Model
- CK4-HPD404C
- Part number
- CK4-HPD404C
- EAN / UPC
- 735816523732
- Also known as
- StarTech.com Secure 4-Port Quad-Monitor KVM Switch, HDMI / DisplayPort / DVI, NIAP 4.0 Desktop KVM, Metal Housing, CAC Port, Made in the USA
Specifications
40 specifications in 11 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Number of computers controlled | 4 |
| Keyboard port type | USB |
| Mouse port type | USB |
| HDMI ports quantity | 4 |
| DVI-I ports quantity | 4 |
| DisplayPorts quantity | 8 |
| USB 2.0 Type-B ports quantity | 8 |
| Console USB ports quantity | 3 |
| Console ports | 3.5mm headphone, DVI-I, DisplayPort, HDMI, USB A |
| Console DVI-I ports quantity | 1 |
| Console DisplayPorts ports quantity | 2 |
| Console HDMI ports quantity | 1 |
Performance
| Specification | Value |
|---|---|
| Daisy chain | No |
| Audio channels | 2.0 |
Design
| Specification | Value |
|---|---|
| Rack mounting | No |
| Product colour | Black |
| Housing material | Metal |
| Maximum cable length | 6 m |
| LED indicators | Yes |
| Push button | Yes |
| Hot keys | No |
Display
| Specification | Value |
|---|---|
| Built-in display | No |
| On Screen Display (OSD) | No |
Power
| Specification | Value |
|---|---|
| Power source | DC |
Sustainability
| Specification | Value |
|---|---|
| Compliance certificates | Trade Agreements Act (TAA), Federal Communications Commission (FCC), RoHS |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 170 mm |
| Depth | 320 mm |
| Height | 69 mm |
| Weight | 1.9 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 406 mm |
| Package depth | 267 mm |
| Package height | 178 mm |
Other features
| Specification | Value |
|---|---|
| IP control | No |
Logistics data
| Specification | Value |
|---|---|
| Master (outer) case width | 610 mm |
| Master (outer) case length | 457 mm |
| Master (outer) case height | 457 mm |
| Products per master (outer) case | 5 pc(s) |
