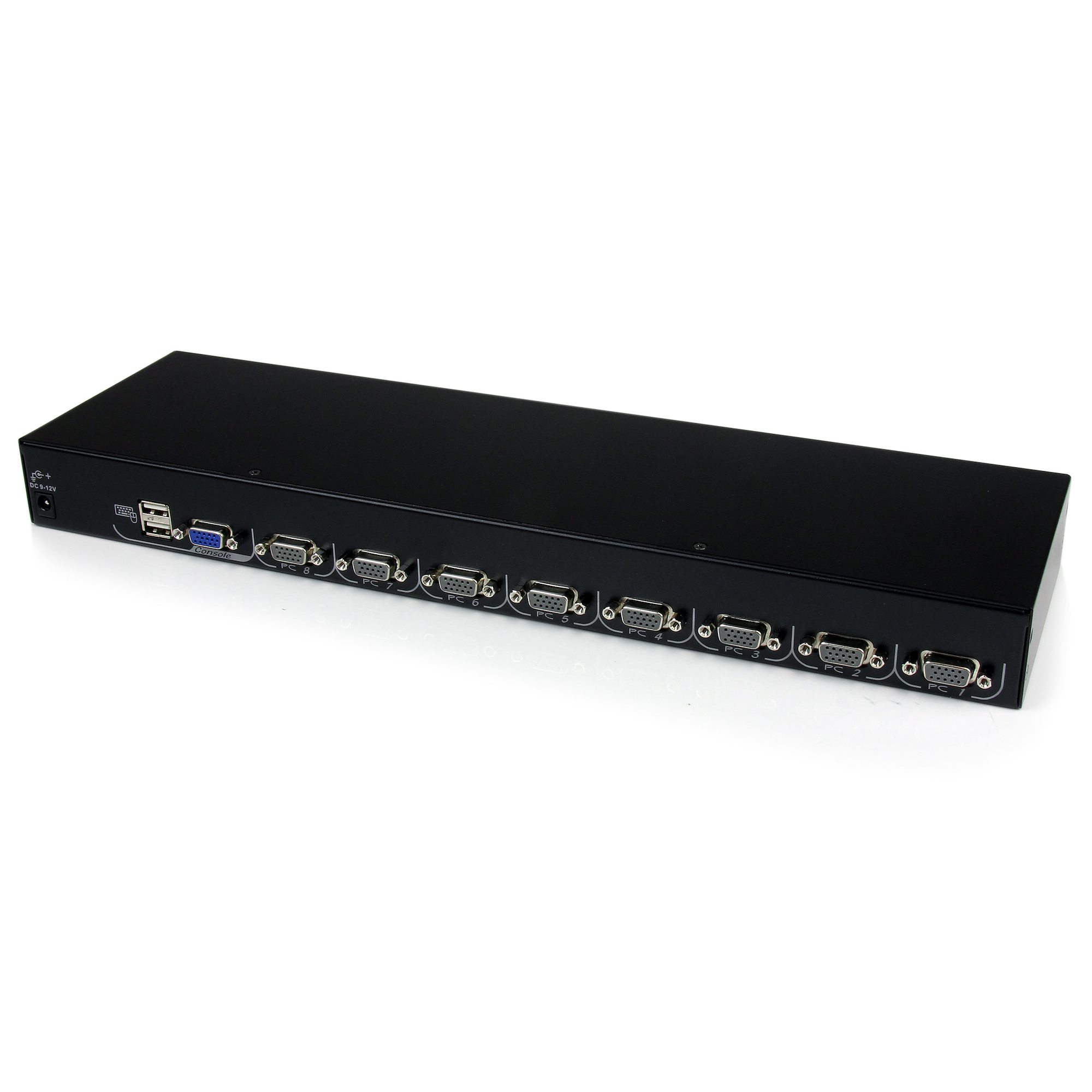

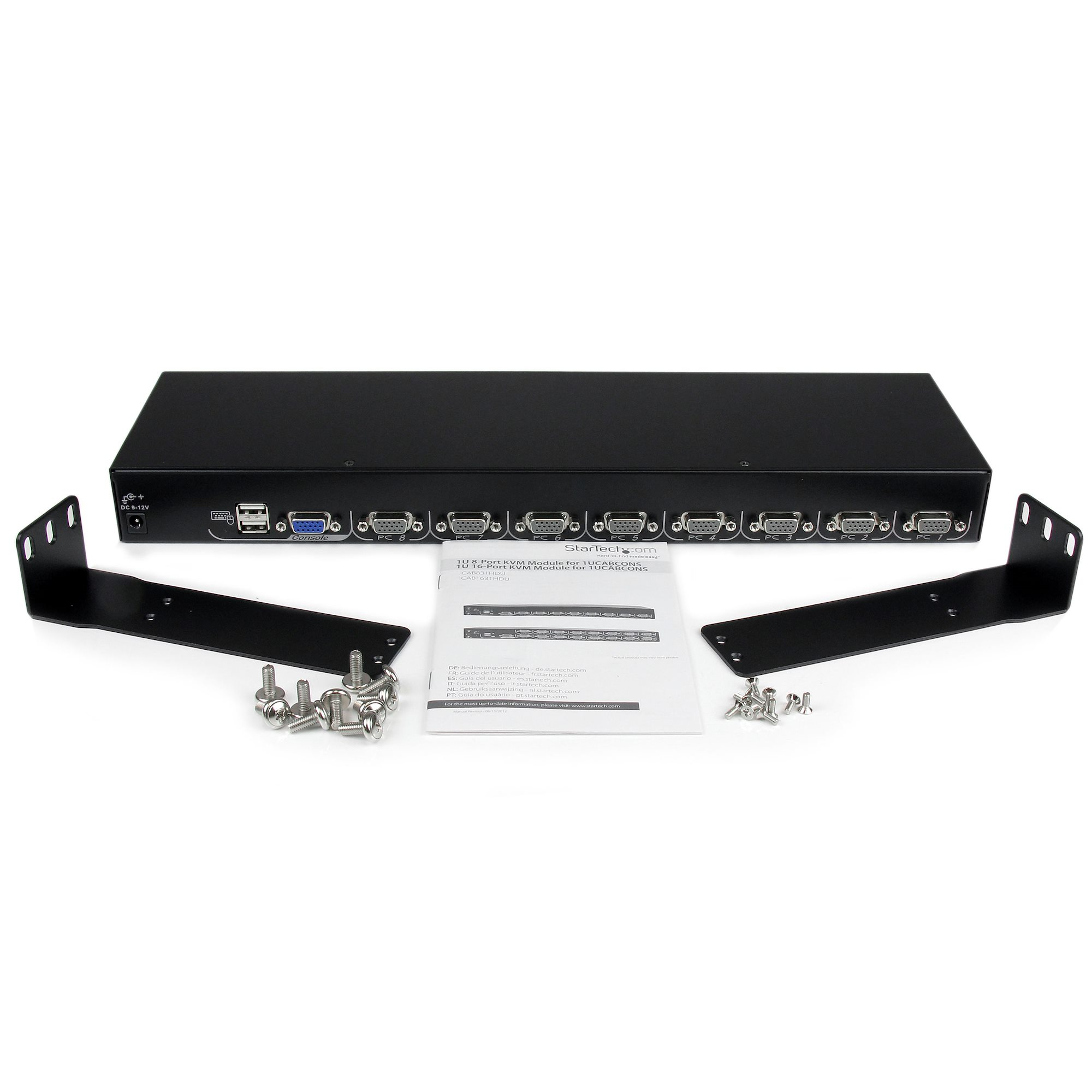

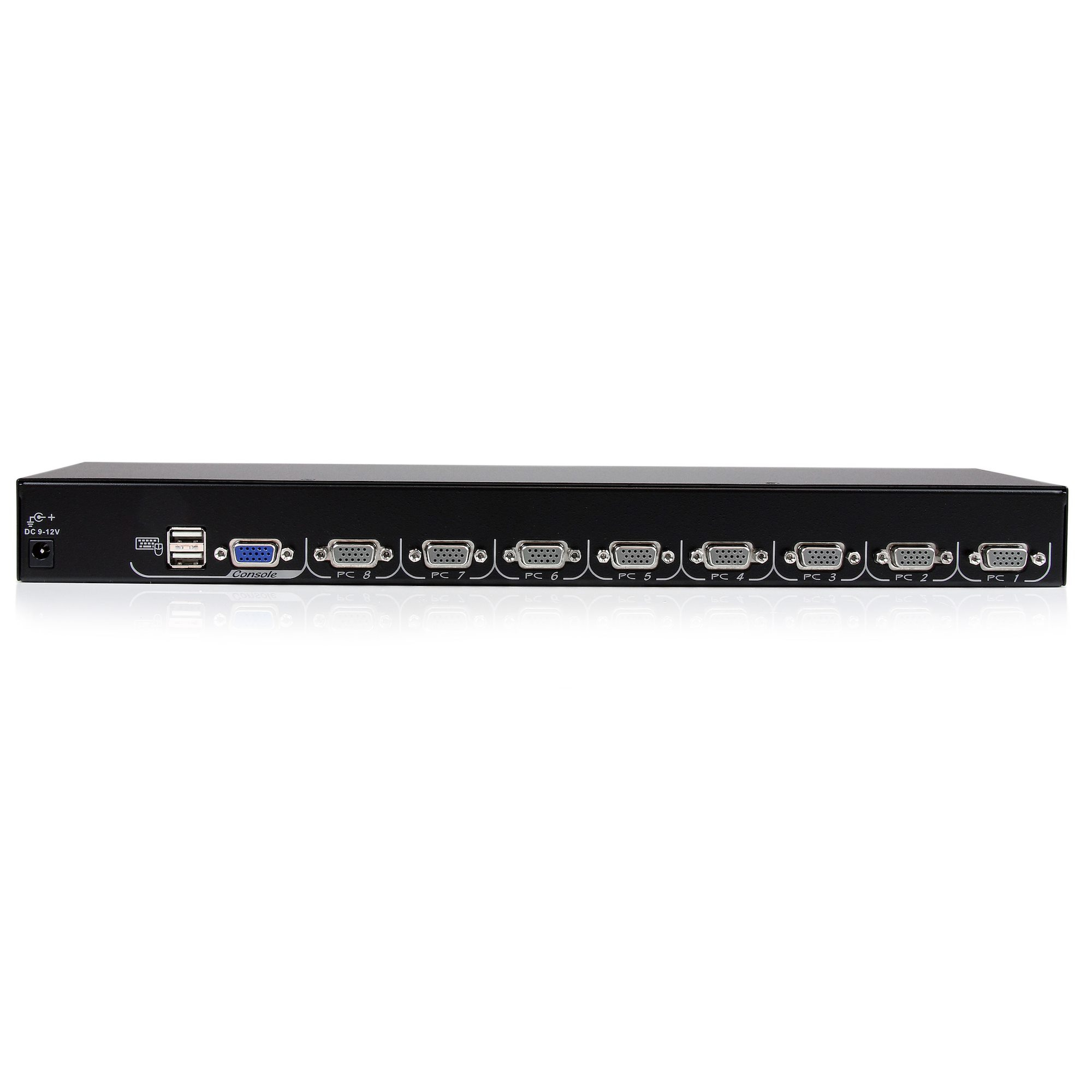

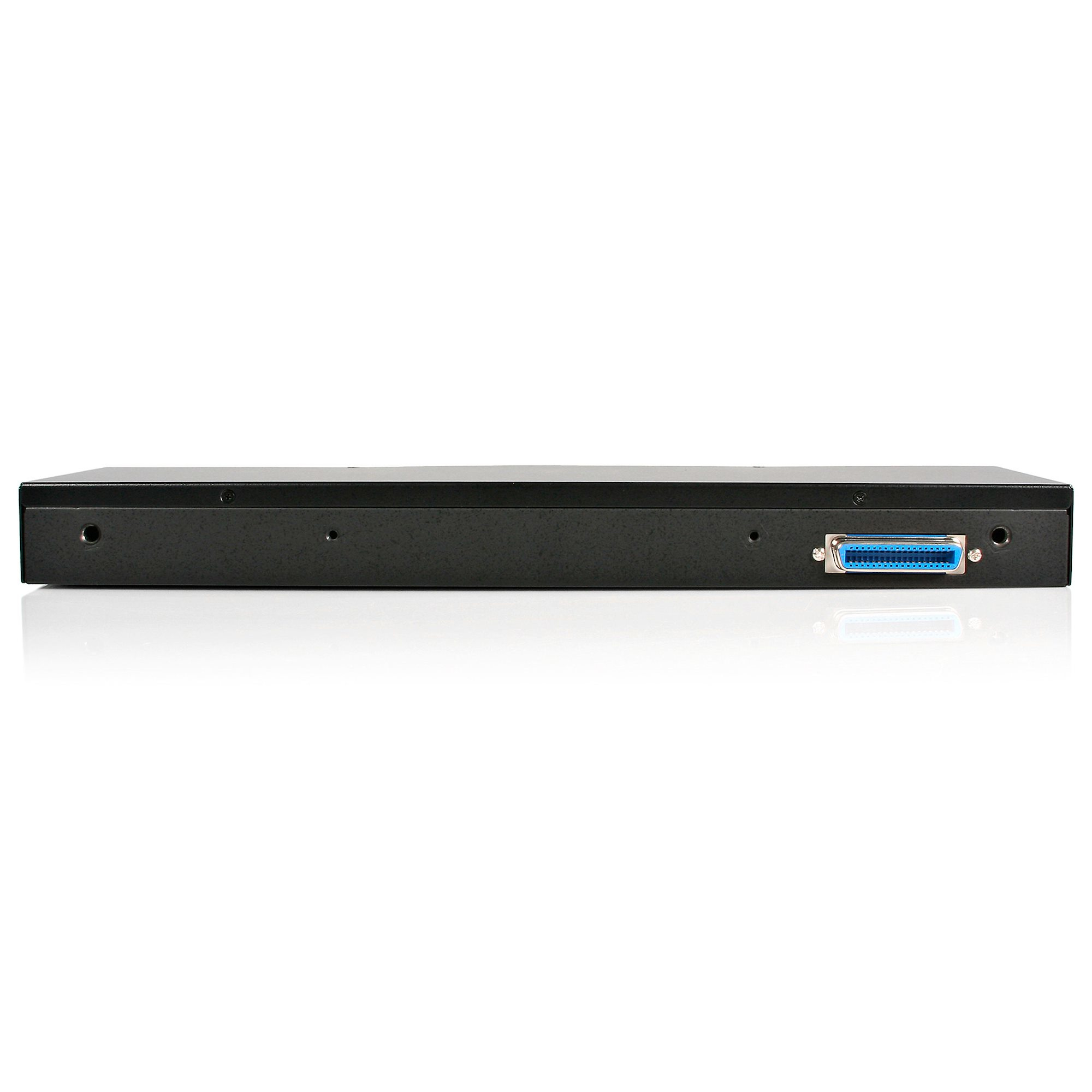

StarTech.com 8-port KVM Module for Rack-Mount LCD Consoles

StarTech.com 8-port KVM Module for Rack-Mount LCD Consoles

Model CAB831HDUEAN 065030837293

48 specifications
  • Weight1.5 kg
  • ColourBlack
  • Number of computers controlled8
  • Ethernet LANNo
  • Maximum analog resolution1920 x 1440 pixels
  • Rack capacity1U
See all specifications

Overview

Weight
1.5 kg
Colour
Black
Number of computers controlled
8
Ethernet LAN
No
Maximum analog resolution
1920 x 1440 pixels
Rack capacity
1U
Brand
StarTech.com
Category
KVM Switch
Model
CAB831HDU
Part number
CAB831HDU
EAN / UPC
065030837293, 163120562169
Also known as
StarTech.com 8-port KVM Module for Rack-Mount LCD Consoles

Specifications

48 specifications in 12 groups

Ports & interfaces

Number of computers controlled8
Keyboard port typeUSB
Mouse port typeUSB
Video port typeVGA
Console USB ports quantity2
Console portsVGA (D-Sub)
USB connector typeUSB Type-A
Audio connectionsNo

Network

Ethernet LANNo

Performance

Maximum analog resolution1920 x 1440 pixels
Maximum resolution1920 x 1440 pixels
Scan interval3,8,15,30 s
DDC2B supportYes
Plug and PlayYes
Daisy chainYes
Number of users1 user(s)

Design

Rack capacity1U
Rack mountingYes
Product colourBlack
Housing materialSteel
CascadableYes
LED indicatorsYes
Mean time between failures (MTBF)72000 h
CertificationCE, FCC

Display

Built-in displayNo

Power

Input voltage110-240 V
Input current1.8 A
Output voltage12 V
Output current4 A
Power plug typeType M

Sustainability

Compliance certificatesRoHS

Operational conditions

Operating temperature (T-T)5 - 40 °C
Storage temperature (T-T)-20 - 60 °C
Operating relative humidity (H-H)0 - 80%

Weight & dimensions

Width403 mm
Depth125 mm
Height40 mm
Weight1.5 kg

Packaging data

Package width160 mm
Package depth530 mm
Package height57 mm
Package weight2.12 kg

Other features

IP controlNo

Logistics data

Harmonized System (HS) code85176200
Master (outer) case width325 mm
Master (outer) case length545 mm
Master (outer) case height200 mm
Products per master (outer) case5 pc(s)
