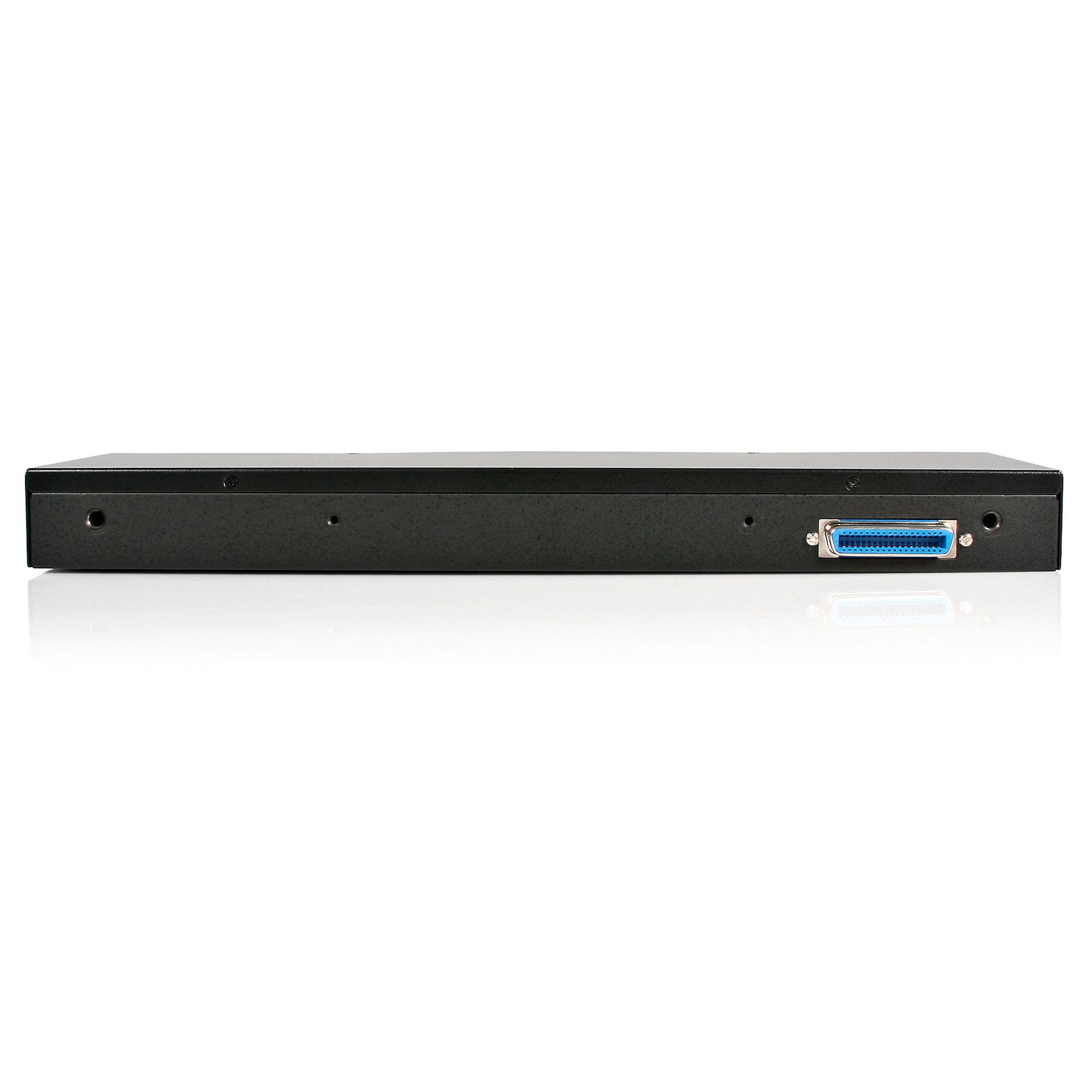

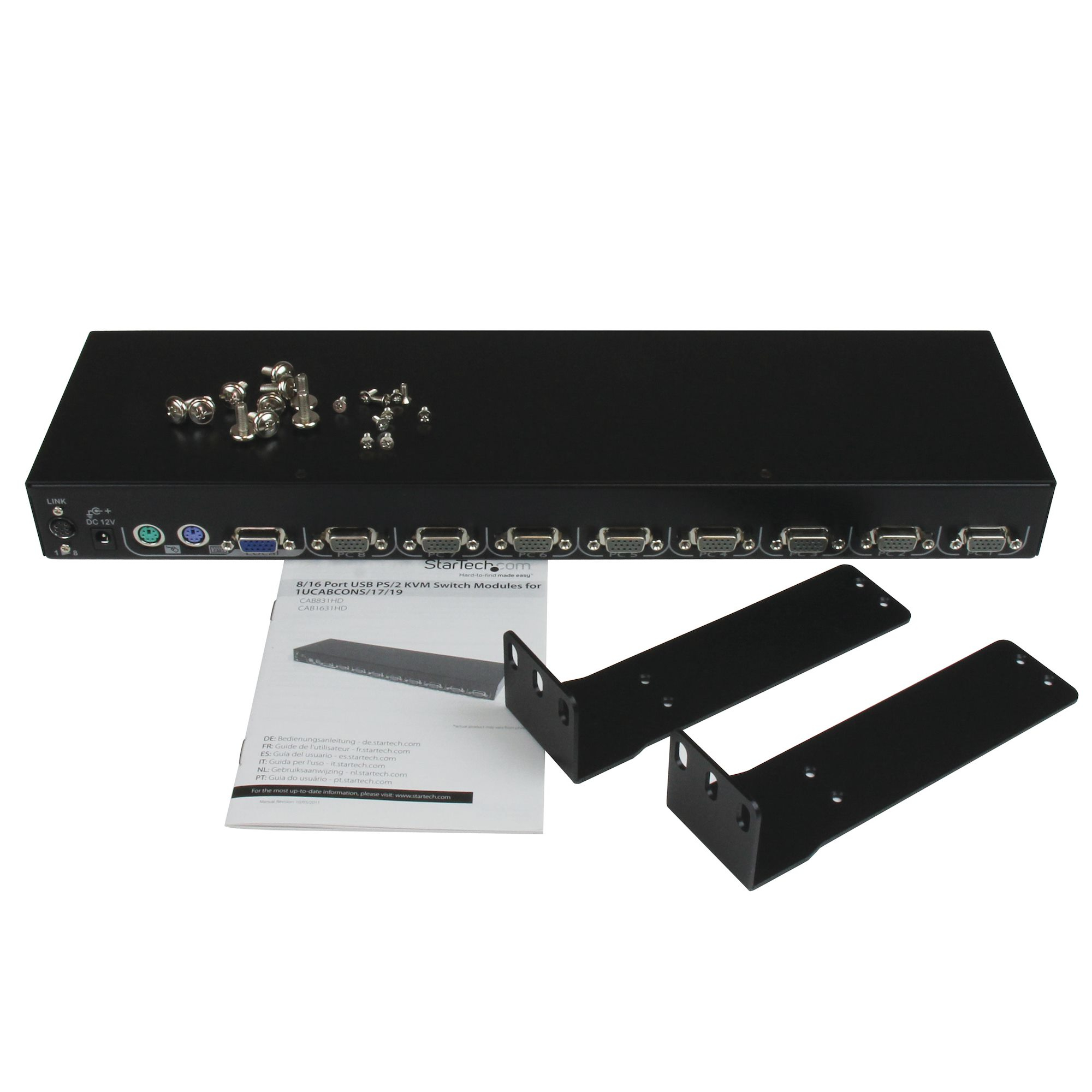

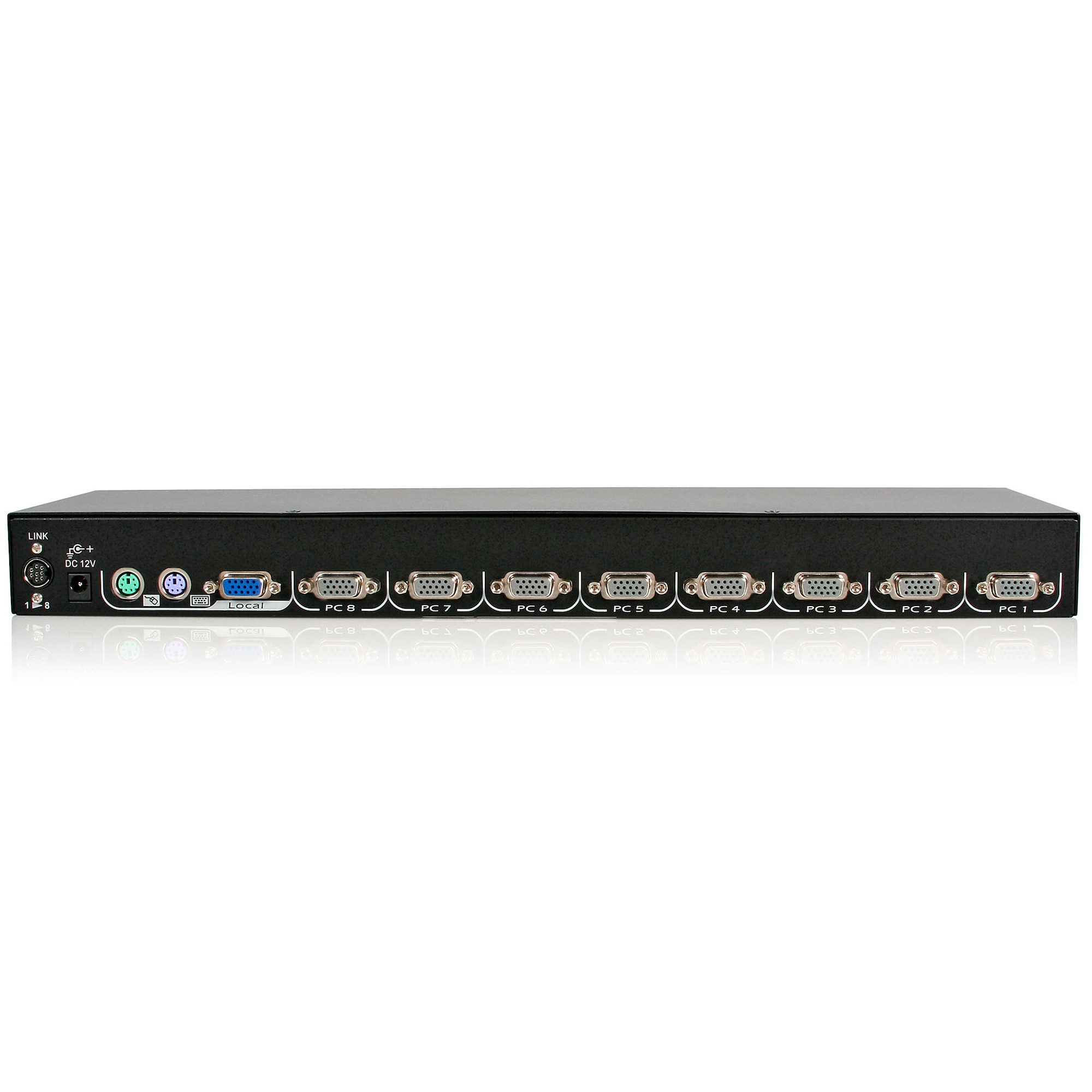

StarTech.com 8-port KVM Module for Rack-mount LCD Consoles

StarTech.com 8-port KVM Module for Rack-mount LCD Consoles

Model CAB831HDEAN 065030802048

48 specifications
  • Weight2.2 kg
  • ColourBlack
  • Number of computers controlled8
  • Ethernet LANNo
  • Maximum analog resolution1920 x 1440 pixels
  • Rack capacity1U
See all specifications

Overview

Weight
2.2 kg
Colour
Black
Number of computers controlled
8
Ethernet LAN
No
Maximum analog resolution
1920 x 1440 pixels
Rack capacity
1U
Brand
StarTech.com
Category
KVM Switch
Model
CAB831HD
Part number
CAB831HD
EAN / UPC
065030802048, 650308020486, 795327830477
Also known as
StarTech.com 8-port KVM Module for Rack-mount LCD Consoles

Specifications

48 specifications in 12 groups

Ports & interfaces

Number of computers controlled8
Keyboard port typePS/2
Mouse port typePS/2
Video port typeVGA
Console portsPS/2, VGA (D-Sub)
Audio connectionsNo

Network

Ethernet LANNo

Performance

Maximum analog resolution1920 x 1440 pixels
Maximum resolution1920 x 1440 pixels
Scan interval3,8,15,30 s
DDC2B supportYes
Hot-Plug supportYes
Plug and PlayYes
Daisy chainYes
Number of users1 user(s)

Design

Rack capacity1U
Rack mountingYes
Product colourBlack
Housing materialSteel
Maximum cable length30.5 m
CascadableYes
Mean time between failures (MTBF)72000 h
CertificationCE, FCC, UL, TAA

Display

Built-in displayNo

Power

Input voltage110 - 240 V
Input current1.8 A
Output voltage12 V
Output current4 A
Power consumption (typical)0.6 W
Power plug typeType M

Sustainability

Compliance certificatesRoHS

Weight & dimensions

Width436 mm
Depth180 mm
Height44 mm
Weight2.2 kg

Packaging data

Package width57 mm
Package depth528 mm
Package height155 mm
Package weight3.3 kg

Packaging content

AC adapter includedYes
ManualYes

Other features

Audio supportNo
IP controlNo

Logistics data

Harmonized System (HS) code85176200
Master (outer) case width625 mm
Master (outer) case length547 mm
Master (outer) case height208 mm
Products per master (outer) case5 pc(s)
