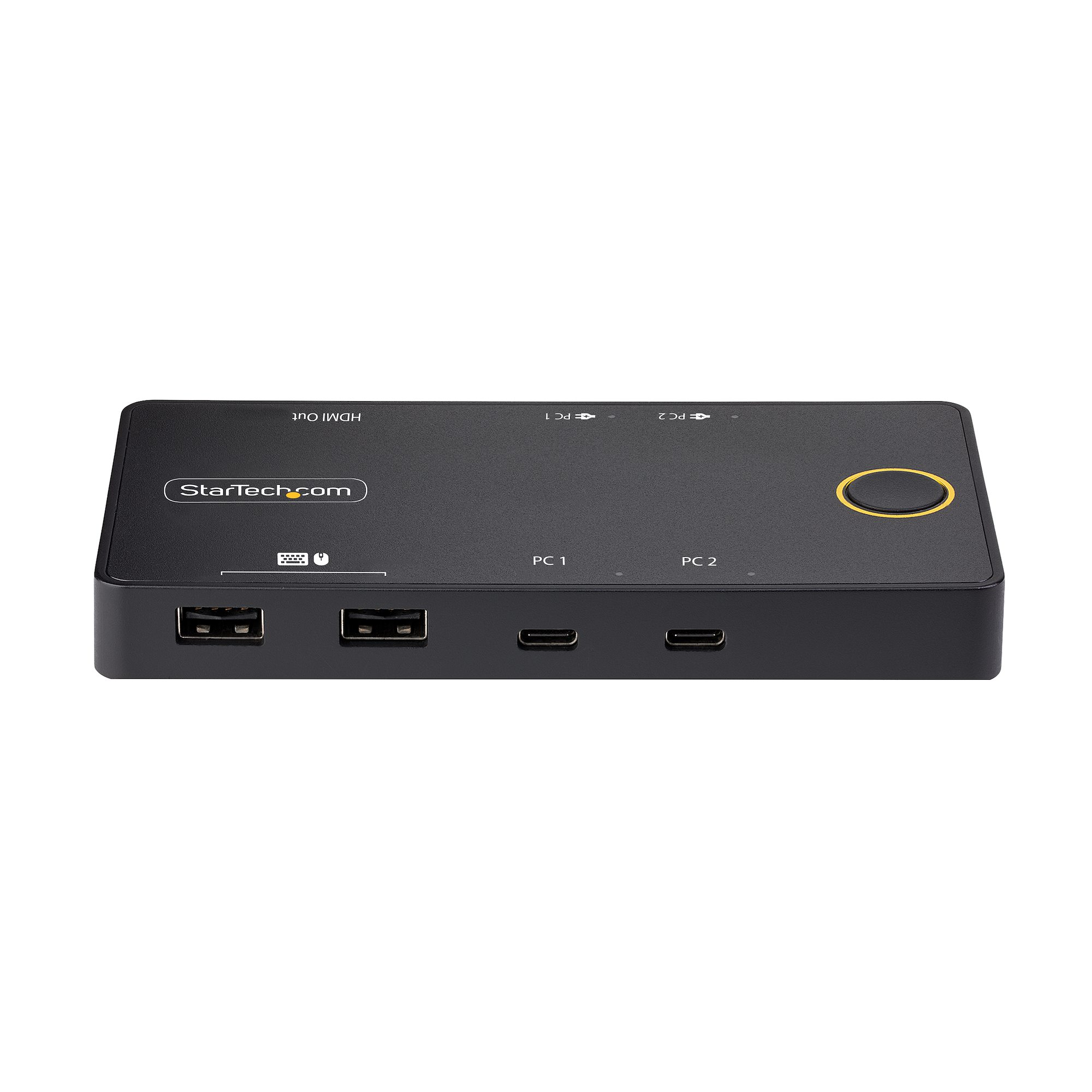

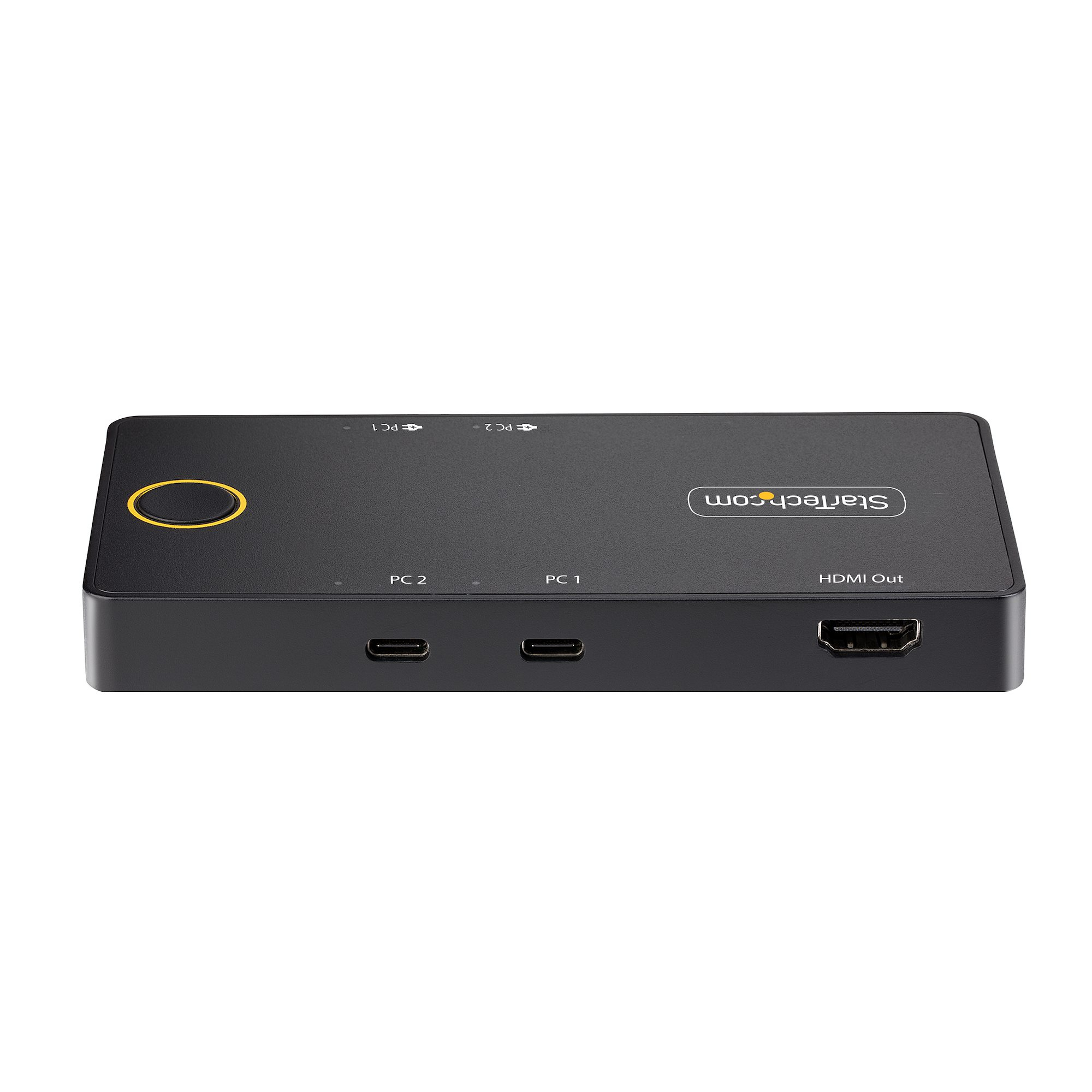

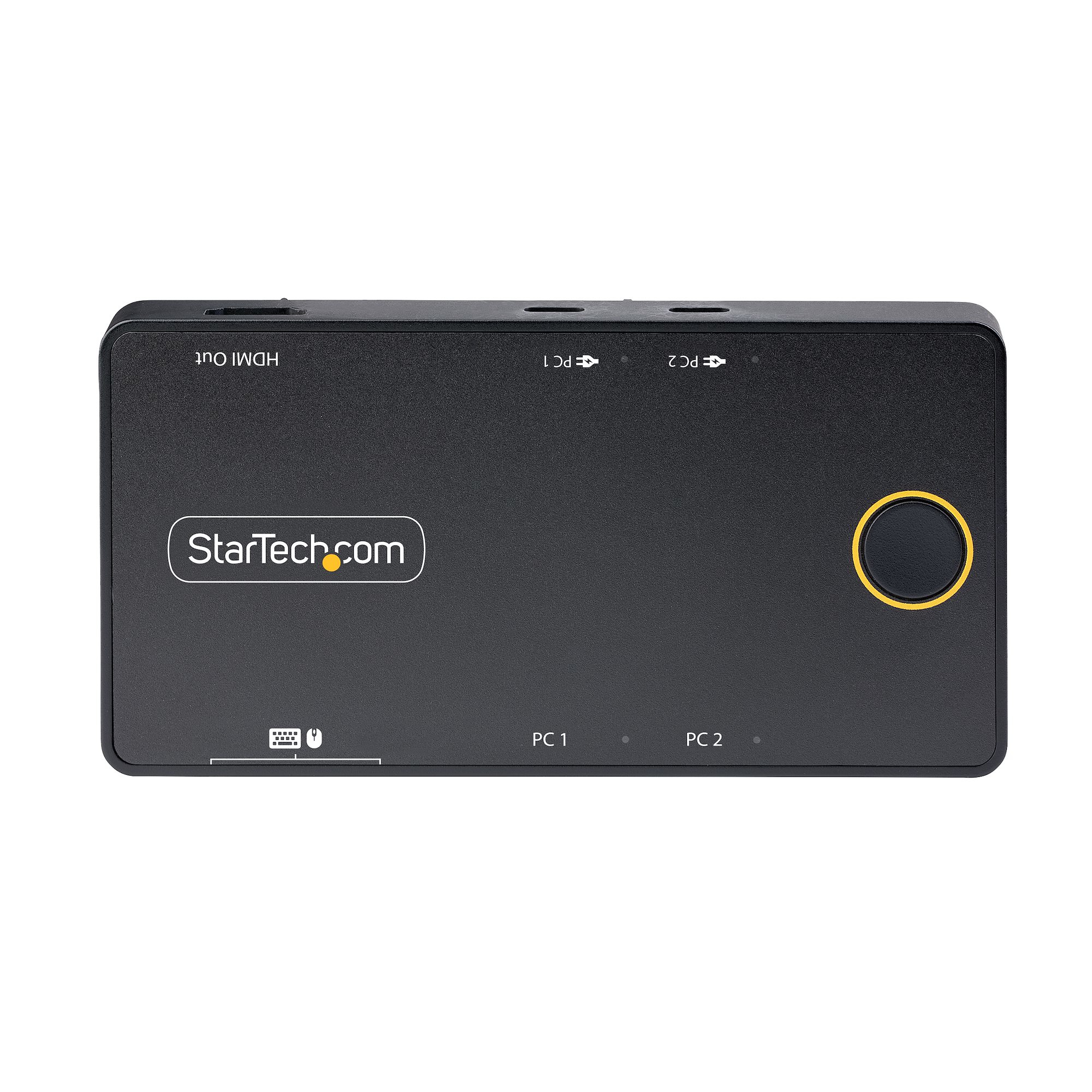

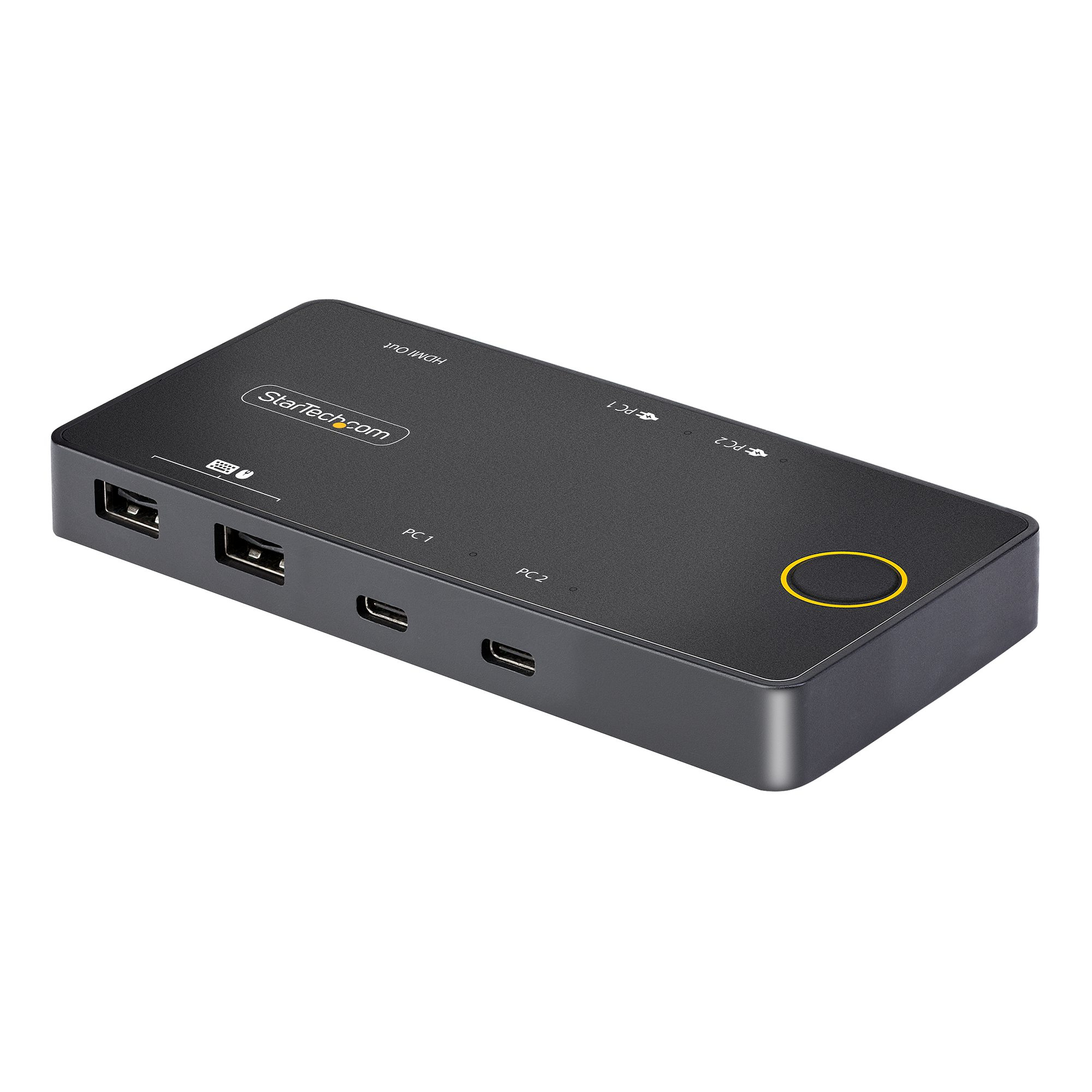

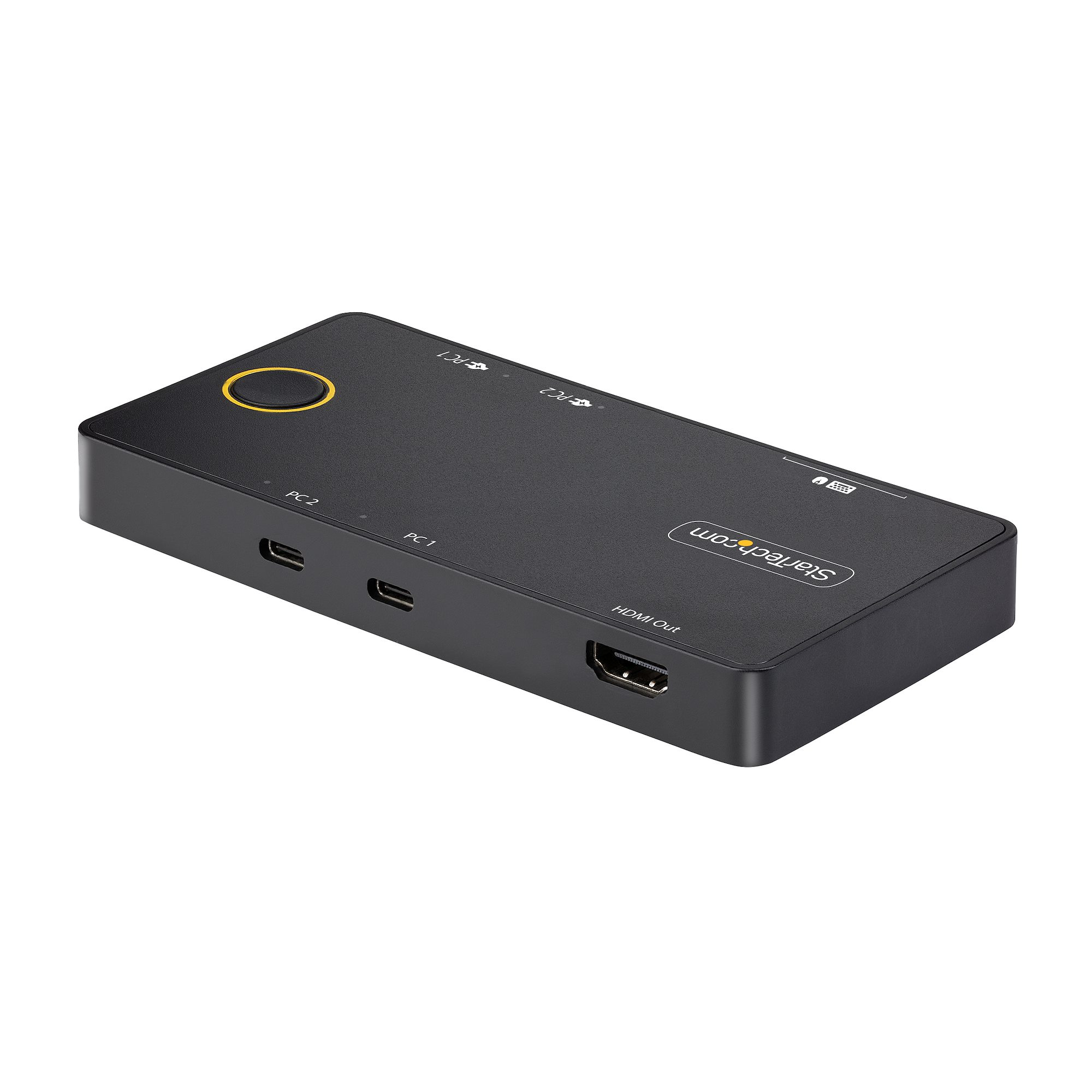

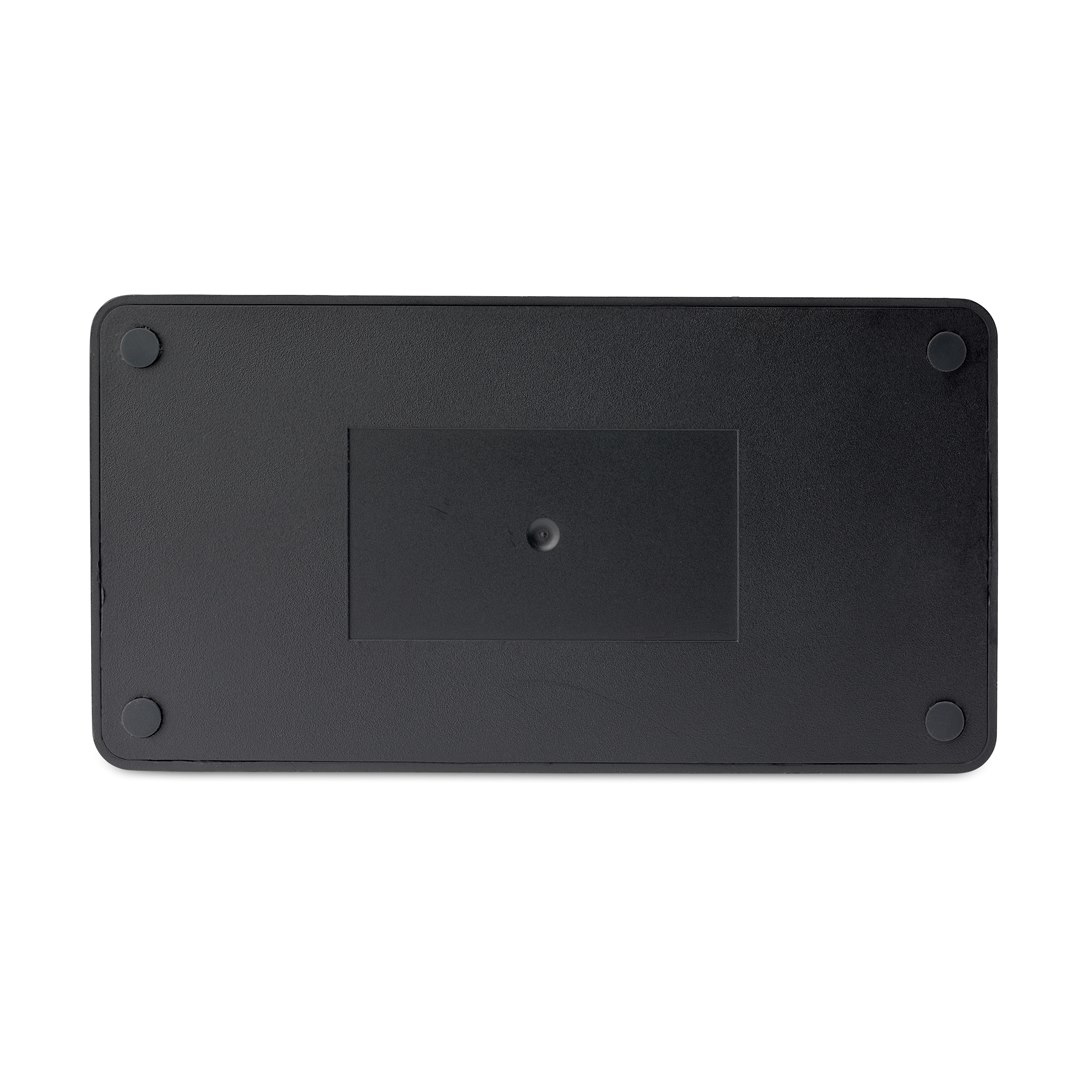

2-Port USB-C KVM Switch, Single-4K
60Hz HDMI Monitor, Dual-100W Power Delivery Pass-through Ports, Bus Powered, USB Type-C/USB4/Thunderbolt 3/4 Com
Model C2-H46-UC2-PD-KVMEAN 065030897648
46 specifications
- Weight200 g
- ColourBlack
- Number of computers controlled2
- HD type4K Ultra HD
- Rack mountingNo
- Power consumption (typical)10 W
Overview
- Weight
- 200 g
- Colour
- Black
- Number of computers controlled
- 2
- HD type
- 4K Ultra HD
- Rack mounting
- No
- Power consumption (typical)
- 10 W
- Brand
- StarTech.com
- Category
- KVM Switch
- Model
- C2-H46-UC2-PD-KVM
- Part number
- C2-H46-UC2-PD-KVM
- EAN / UPC
- 065030897648
- Also known as
- StarTech.com 2-Port USB-C KVM Switch, Single-4K 60Hz HDMI Monitor, Dual-100W Power Delivery Pass-through Ports, Bus Powered, USB Type-C/USB4/Thunderbolt 3/4 Com
Specifications
46 specifications in 12 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Number of computers controlled | 2 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | HDMI |
| Console USB ports quantity | 4 |
| Console ports | HDMI, USB A, USB C |
| Console HDMI ports quantity | 1 |
Performance
| Specification | Value |
|---|---|
| HD type | 4K Ultra HD |
| Maximum resolution | 4096 x 2160 pixels |
| Video bandwidth | 75 Hz |
| Data transfer rate (max) | 0.48 Gbit/s |
| Plug and Play | Yes |
| Audio channels | 7.1 |
| Chipset | VLI - VL103R, VLI - VL171, Parade - PS186, VLI - VL817 |
Design
| Specification | Value |
|---|---|
| Rack mounting | No |
| Product colour | Black |
| Housing material | Acrylonitrile butadiene styrene (ABS) |
| Cable length | 1 m |
| LED indicators | Power |
| Push button | Yes |
| Hot keys | No |
| Mean time between failures (MTBF) | 50000 h |
Display
| Specification | Value |
|---|---|
| Built-in display | No |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 10 W |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery up to | 100 W |
Sustainability
| Specification | Value |
|---|---|
| Compliance certificates | CE, RoHS |
| Sustainability compliance | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 55 °C |
| Storage temperature (T-T) | -20 - 50 °C |
| Operating relative humidity (H-H) | 20 - 80% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 70 mm |
| Depth | 140 mm |
| Height | 15 mm |
| Weight | 200 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 120 mm |
| Package depth | 172 mm |
| Package height | 85 mm |
| Package weight | 440 g |
Packaging content
| Specification | Value |
|---|---|

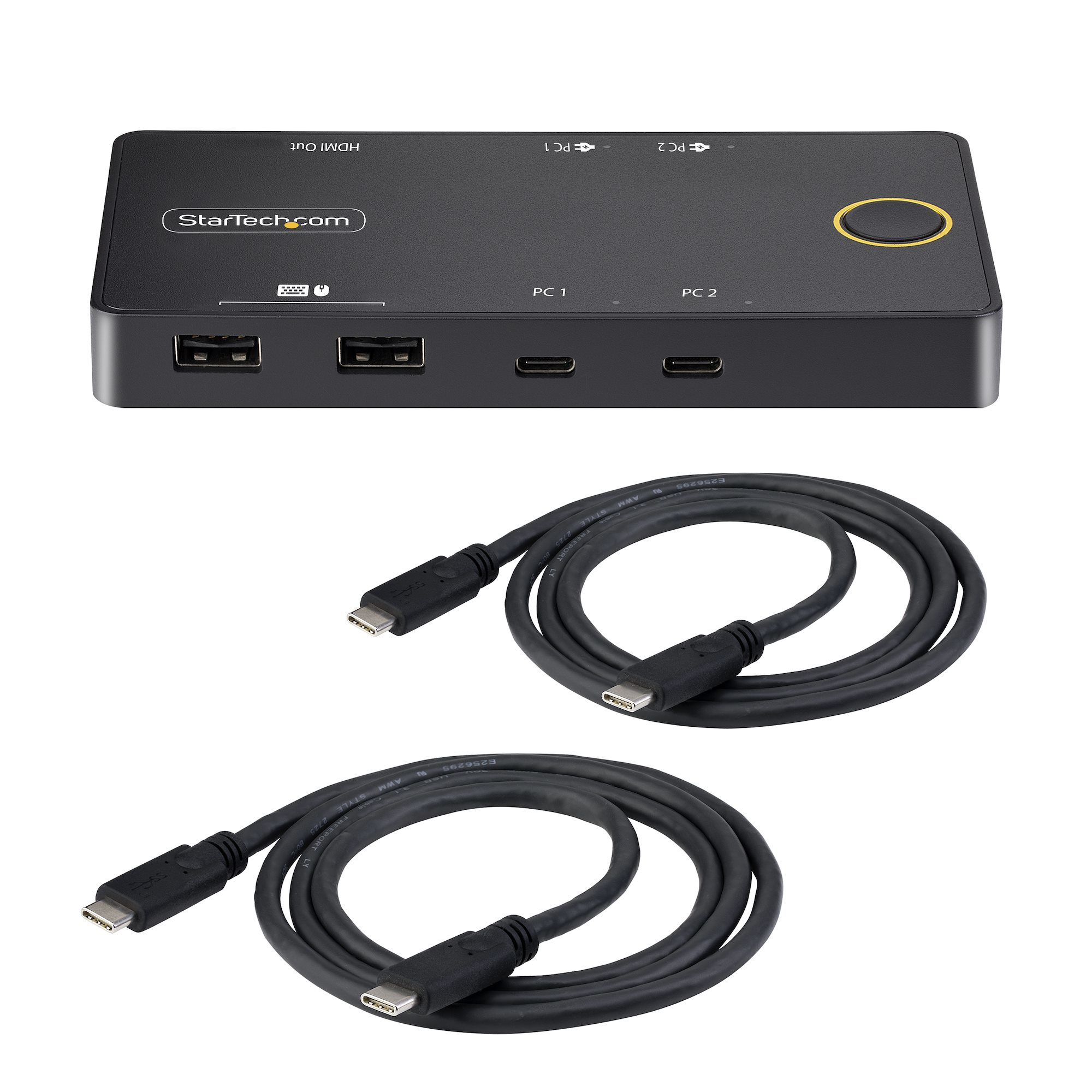

| Cables included | USB Type-C |
| Quick installation guide | Yes |
Other features
| Specification | Value |
|---|---|
| IP control | No |
Logistics data
| Specification | Value |
|---|---|
| Master (outer) case width | 410 mm |
| Master (outer) case length | 470 mm |
| Master (outer) case height | 310 mm |
| Products per master (outer) case | 20 pc(s) |
