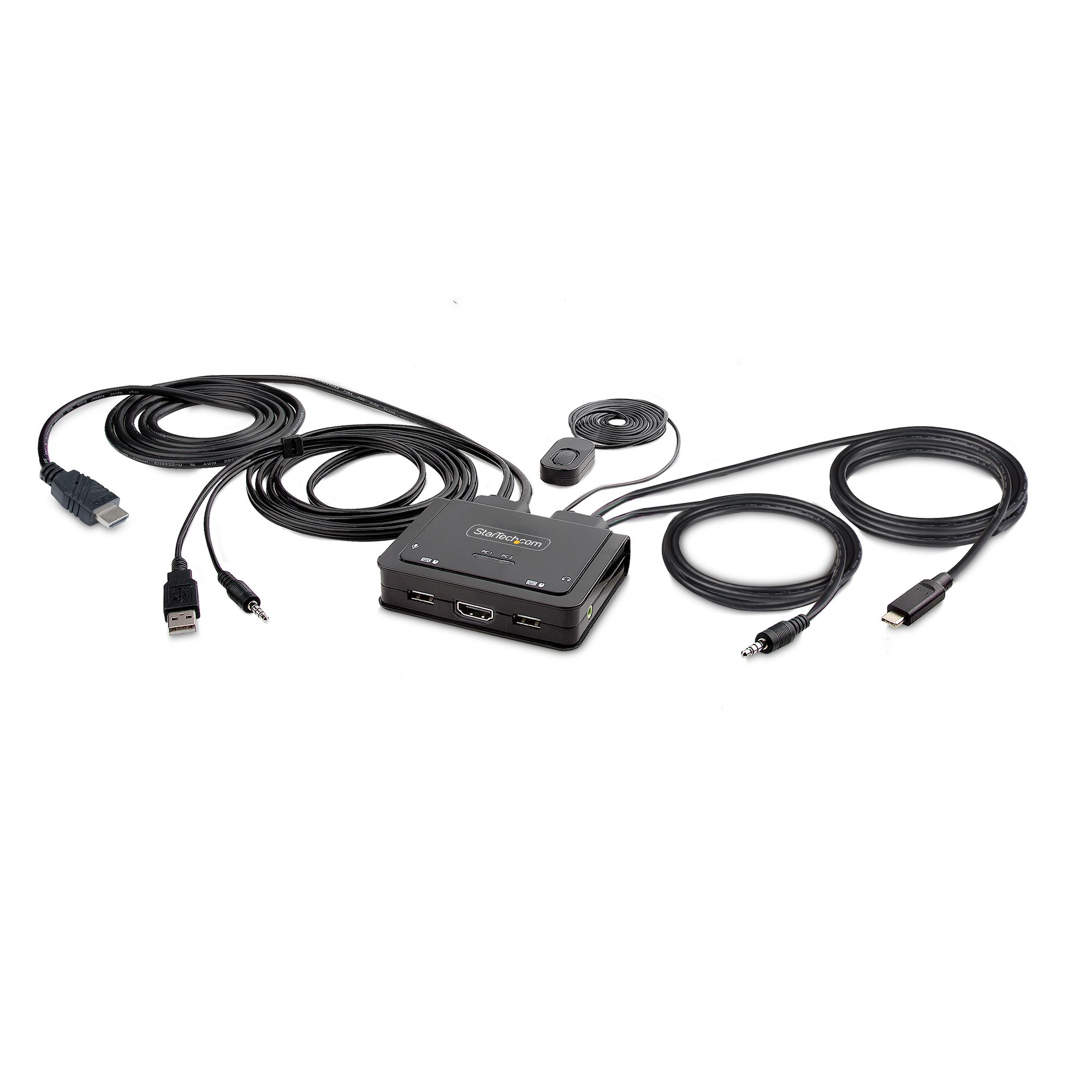

StarTech.com 2-Port Hybrid USB-C HDMI Cable KVM Switch, 4K
StarTech.com

2-Port Hybrid USB-C HDMI Cable KVM Switch, 4K

60Hz, Compact KVM with 6ft/1.8m USB-A/HDMI/Audio & 4ft/1.2m USB-C Integrated Host Cables, Bus Powered

Model C2-H46-UAC-CBL-KVMEAN 065030899345

53 specifications
  • Weight265 g
  • ColourBlack
  • Number of computers controlled2
  • HD type4K Ultra HD
  • Rack mountingNo
  • Power sourceUSB
See all specifications

Overview

Weight
265 g
Colour
Black
Number of computers controlled
2
HD type
4K Ultra HD
Rack mounting
No
Power source
USB
Brand
StarTech.com
Category
KVM Switch
Model
C2-H46-UAC-CBL-KVM
Part number
C2-H46-UAC-CBL-KVM
EAN / UPC
065030899345
Also known as
StarTech.com 2-Port Hybrid USB-C HDMI Cable KVM Switch, 4K 60Hz, Compact KVM with 6ft/1.8m USB-A/HDMI/Audio & 4ft/1.2m USB-C Integrated Host Cables, Bus Powered

Specifications

53 specifications in 13 groups

Ports & interfaces

Number of computers controlled2
Keyboard port typeUSB
Mouse port typeUSB
Video port typeHDMI
HDMI ports quantity1
HDMI version2.0b
Console USB ports quantity2
Console ports3.5mm headphone, 3.5mm mic, HDMI, USB A
Console HDMI ports quantity1
USB connector typeUSB Type-A, USB Type-C
Audio connectionsYes
Headphone outputs1
Number of microphone inputs1

Performance

HD type4K Ultra HD
Maximum resolution4096 x 2160 pixels
Video bandwidth60 Hz
Data transfer rate (max)0.48 Gbit/s
Scan interval10,20,30,40,50,60 s
Audio channels2.0
Number of displays supported1

Design

Rack mountingNo
Product colourBlack
Housing materialAcrylonitrile butadiene styrene (ABS)
Cable length1.8 m
LED indicatorsYes
Push buttonYes
Hot keysYes
Mean time between failures (MTBF)345059 h

Display

Built-in displayNo
On Screen Display (OSD)No

Power

Power sourceUSB

System requirements

Windows operating systems supportedWindows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterp
Mac operating systems supportedMac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey
Other operating systems supportedChromeOS

Sustainability

Compliance certificatesRoHS
Sustainability complianceYes

Operational conditions

Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-20 - 60 °C
Operating relative humidity (H-H)0 - 90%

Weight & dimensions

Width92 mm
Depth97 mm
Height24 mm
Weight265 g

Packaging data

Package width163 mm
Package depth247 mm
Package height61 mm
Package weight500 g

Packaging content

Quick installation guideYes

Other features

IP controlNo

Logistics data

Master (outer) case width453 mm
Master (outer) case length354 mm
Master (outer) case height361 mm
Products per master (outer) case20 pc(s)
