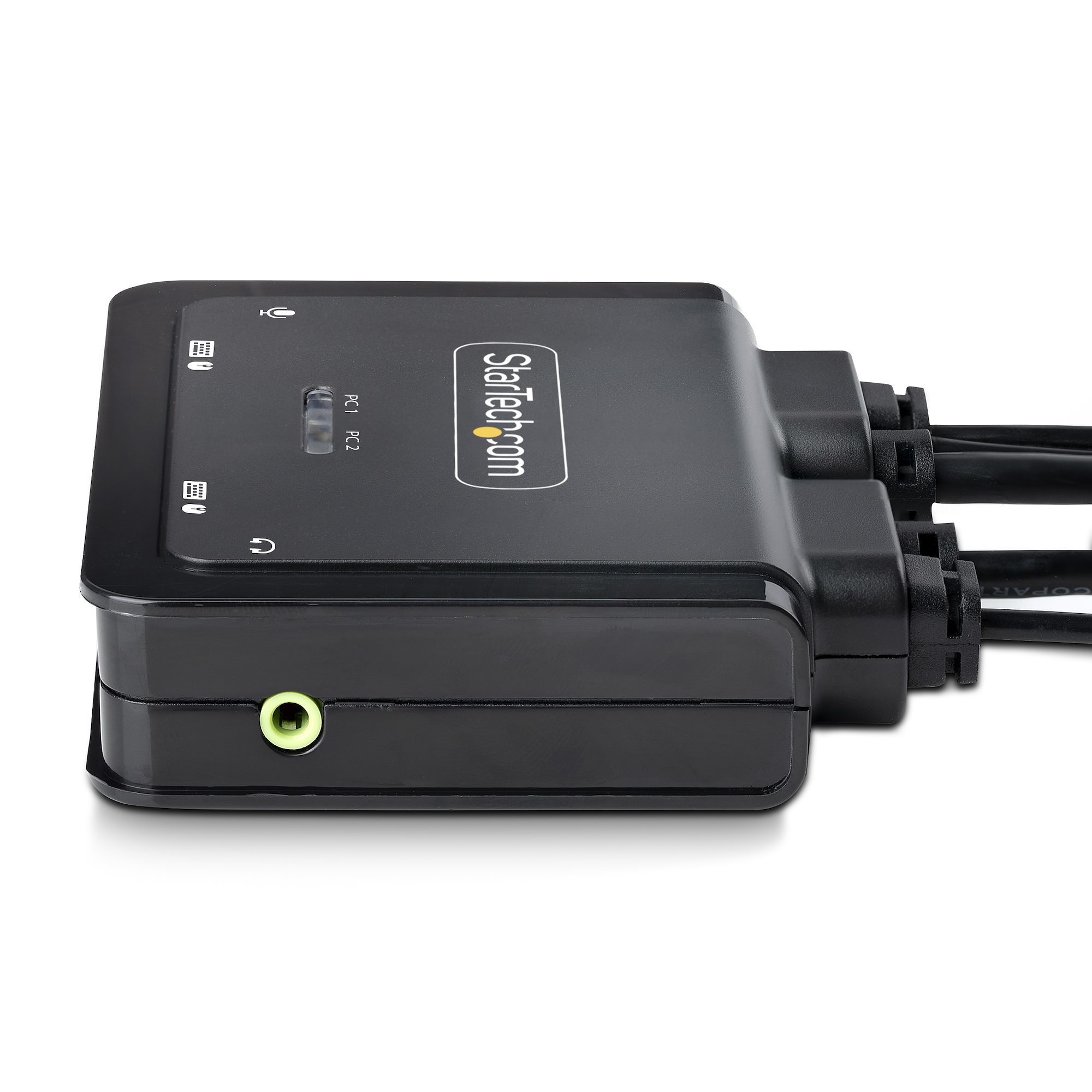

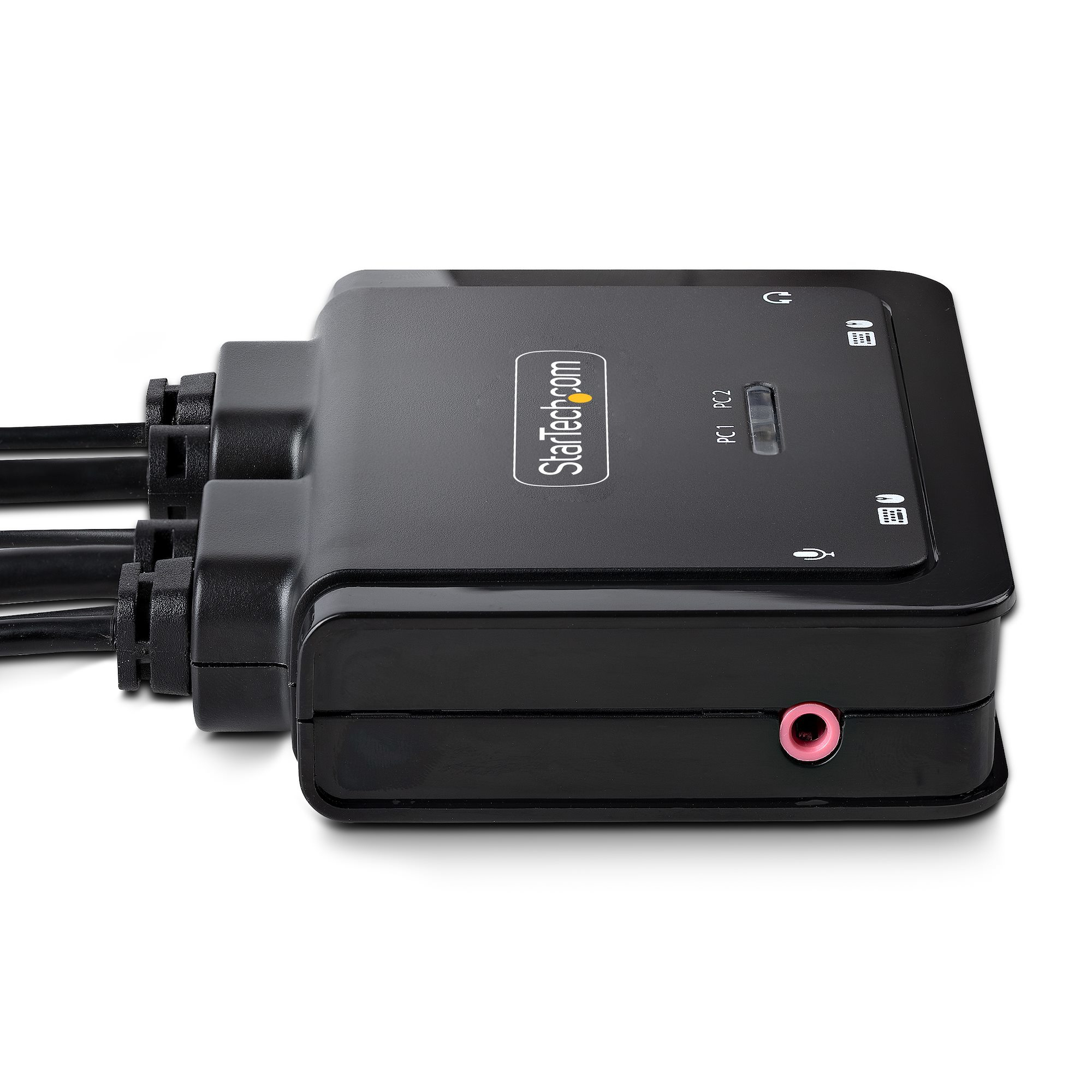

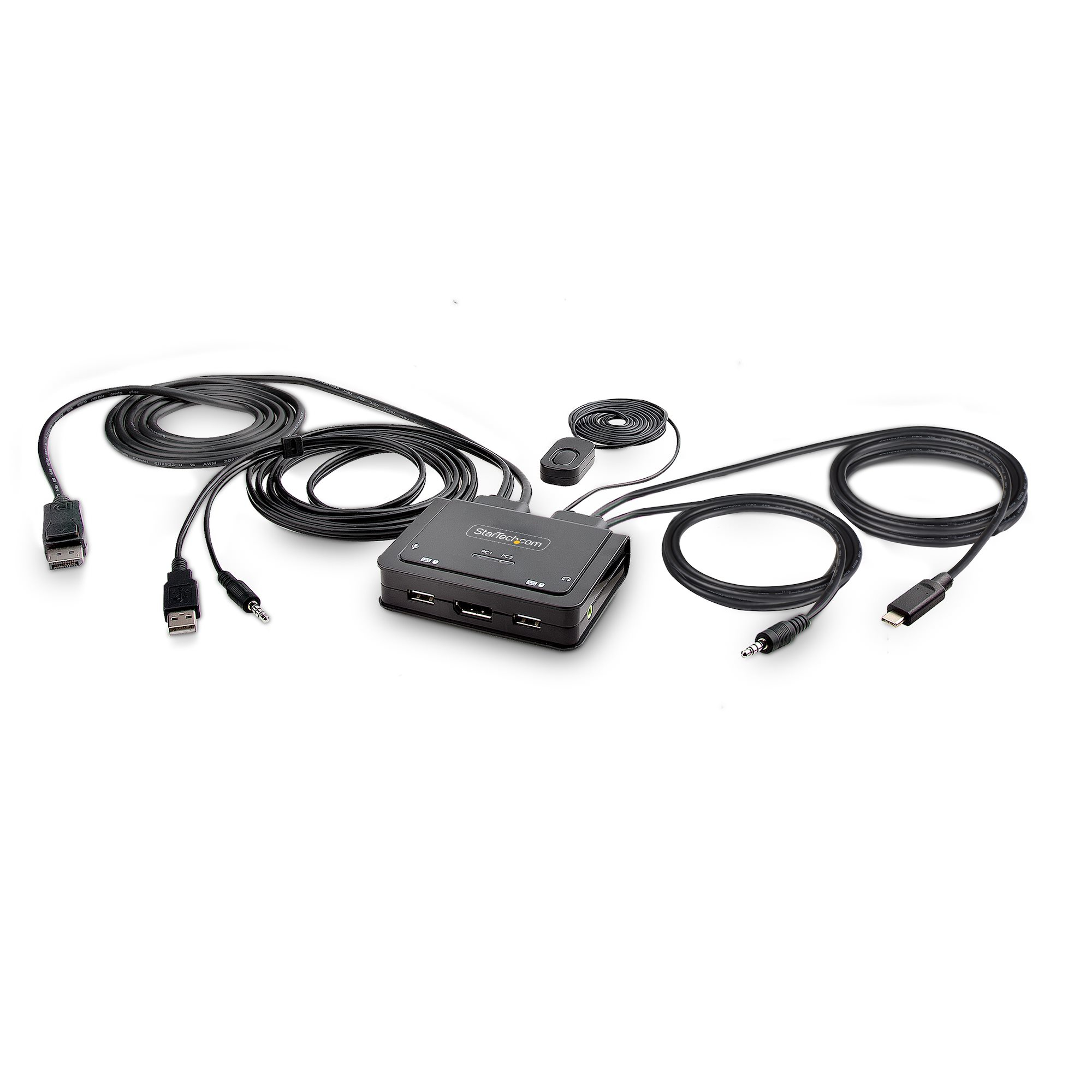

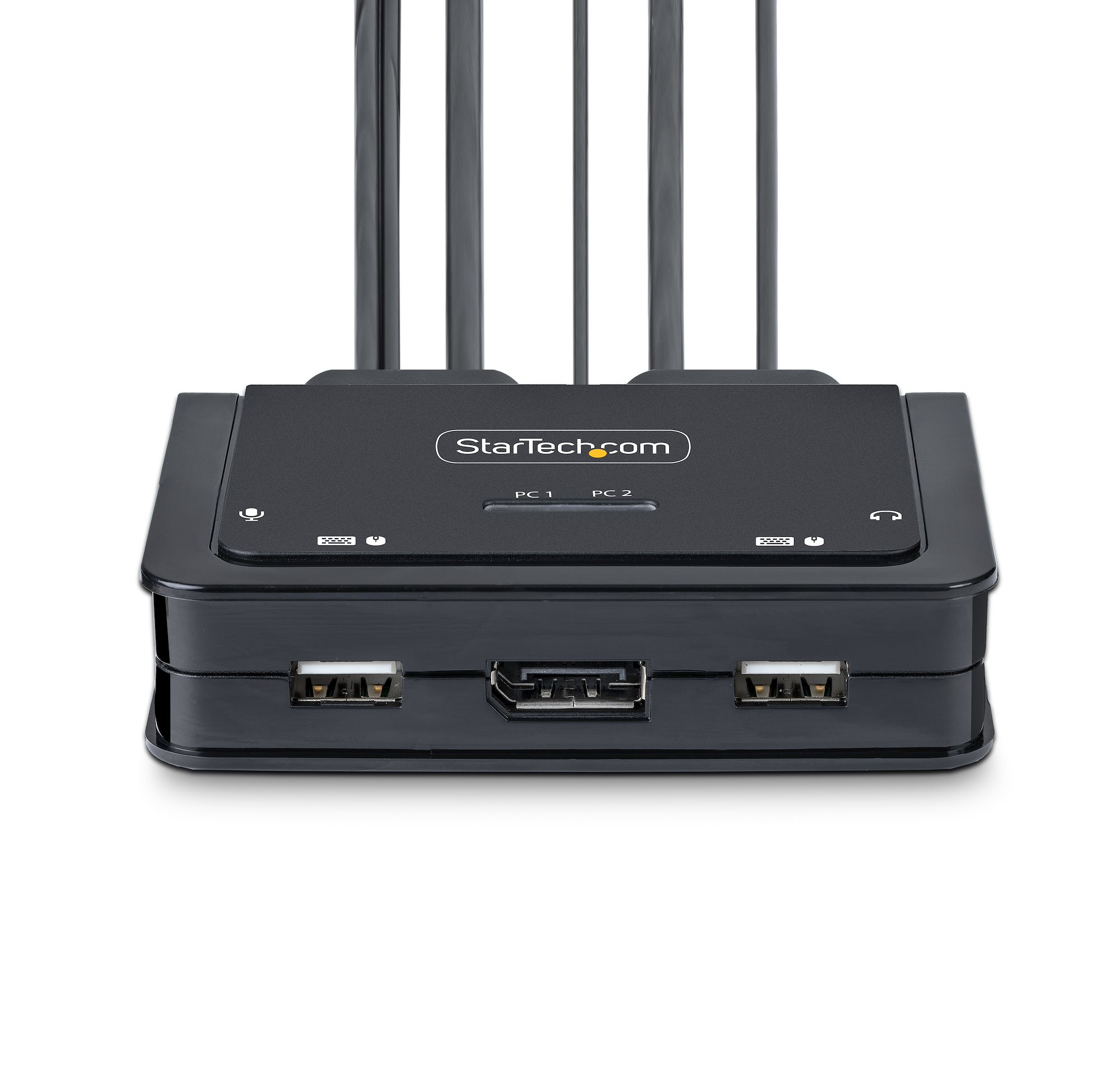

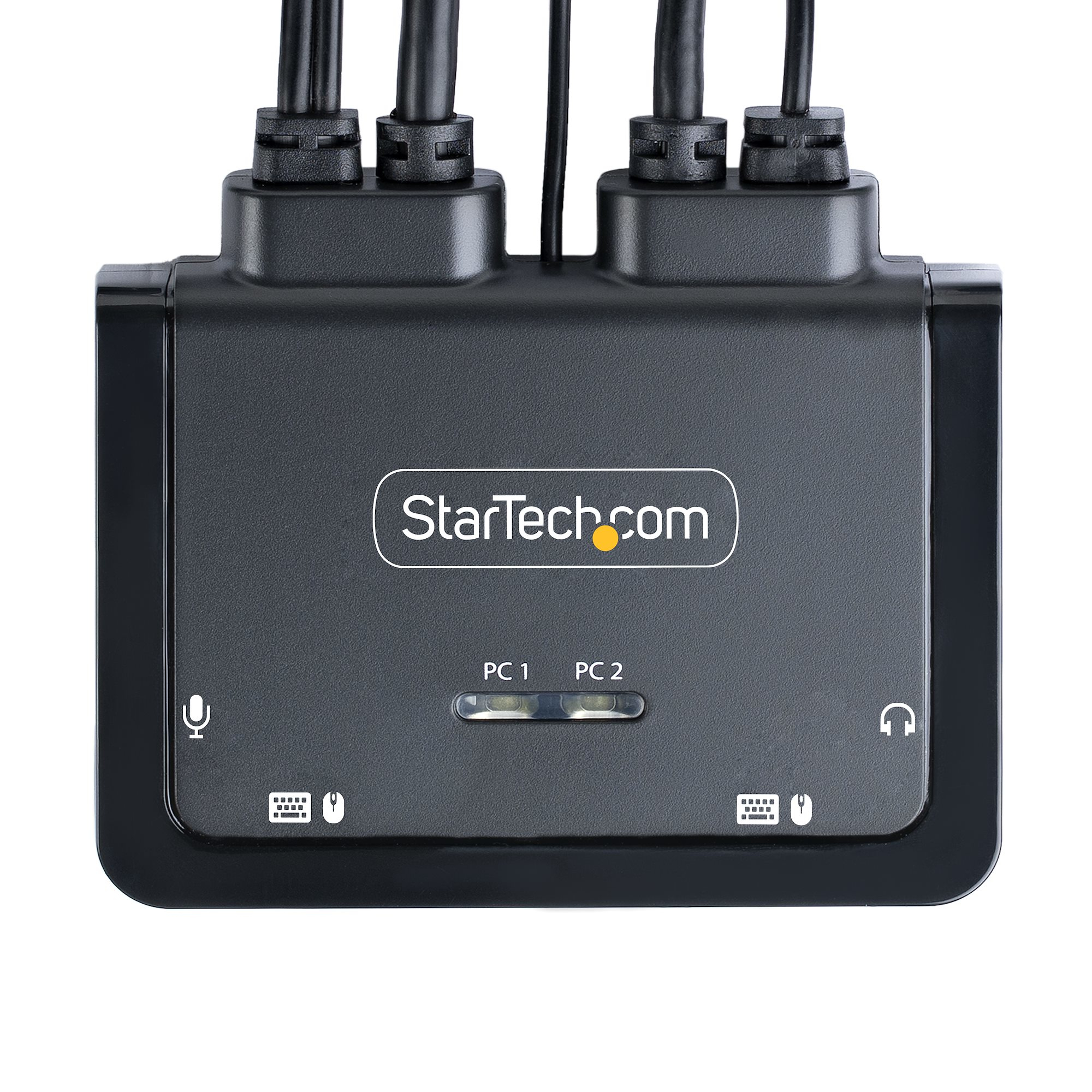

StarTech.com 2-Port Hybrid USB-C DisplayPort Cable KVM Switch, 4K
StarTech.com

2-Port Hybrid USB-C DisplayPort Cable KVM Switch, 4K

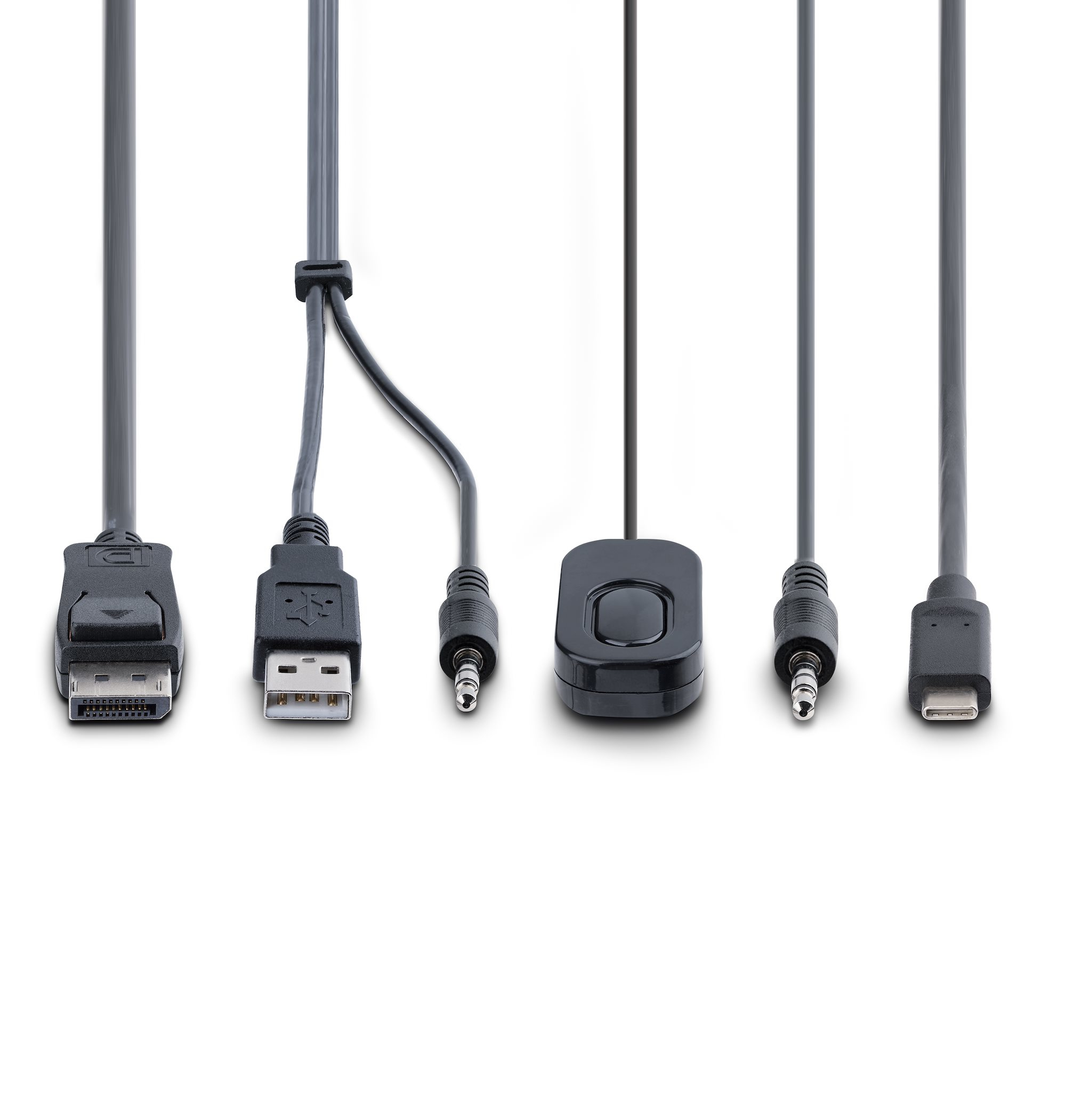

60Hz, Compact KVM with 6ft/1.8m USB-A/DisplayPort/Audio & 4ft/1.2m USB-C Integrated Host Cable

Model C2-D46-UAC-CBL-KVMEAN 065030899338

53 specifications
  • Weight380 g
  • ColourBlack
  • Number of computers controlled2
  • Ethernet LANNo
  • Maximum resolution5120 x 1440 pixels
  • Power sourceUSB
See all specifications

Overview

Weight
380 g
Colour
Black
Number of computers controlled
2
Ethernet LAN
No
Maximum resolution
5120 x 1440 pixels
Power source
USB
Brand
StarTech.com
Category
KVM Switch
Model
C2-D46-UAC-CBL-KVM
Part number
C2-D46-UAC-CBL-KVM
EAN / UPC
065030899338
Also known as
StarTech.com 2-Port Hybrid USB-C DisplayPort Cable KVM Switch, 4K 60Hz, Compact KVM with 6ft/1.8m USB-A/DisplayPort/Audio & 4ft/1.2m USB-C Integrated Host Cable

Specifications

53 specifications in 14 groups

Ports & interfaces

Number of computers controlled2
Keyboard port typeUSB
Mouse port typeUSB
Video port typeDisplayPort
DisplayPort version1.2
Console USB ports quantity2
Console ports3.5mm headphone, 3.5mm mic, DisplayPort, USB A
Console DisplayPorts ports quantity1
USB connector typeUSB Type-A, USB Type-C
Headphone outputs1
Number of microphone inputs1

Network

Ethernet LANNo

Performance

Maximum resolution5120 x 1440 pixels
Data transfer rate (max)0.48 Gbit/s
Scan interval10,20,30,40,50,60 s
Daisy chainNo
Audio channels2.0
ChipsetSN8P2202SG
Number of displays supported1

Design

Rack mountingNo
Product colourBlack
Housing materialAcrylonitrile butadiene styrene (ABS)
Cable length1.8 m
LED indicatorsYes
Push buttonYes
Hot keysYes
Mean time between failures (MTBF)261196 h

Display

Built-in displayNo
On Screen Display (OSD)No

Power

Power sourceUSB
Input voltage5 V

System requirements

Windows operating systems supportedWindows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterp
Mac operating systems supportedMac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey
Other operating systems supportedChromeOS

Sustainability

Compliance certificatesRoHS
Sustainability complianceYes

Operational conditions

Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-20 - 60 °C
Operating relative humidity (H-H)0 - 90%

Weight & dimensions

Width80 mm
Depth95 mm
Height24 mm
Weight380 g

Packaging data

Package width163 mm
Package depth252 mm
Package height60 mm
Package weight500 g

Packaging content

Quick installation guideYes

Other features

IP controlNo

Logistics data

Master (outer) case width352 mm
Master (outer) case length436 mm
Master (outer) case height350 mm
Products per master (outer) case20 pc(s)
