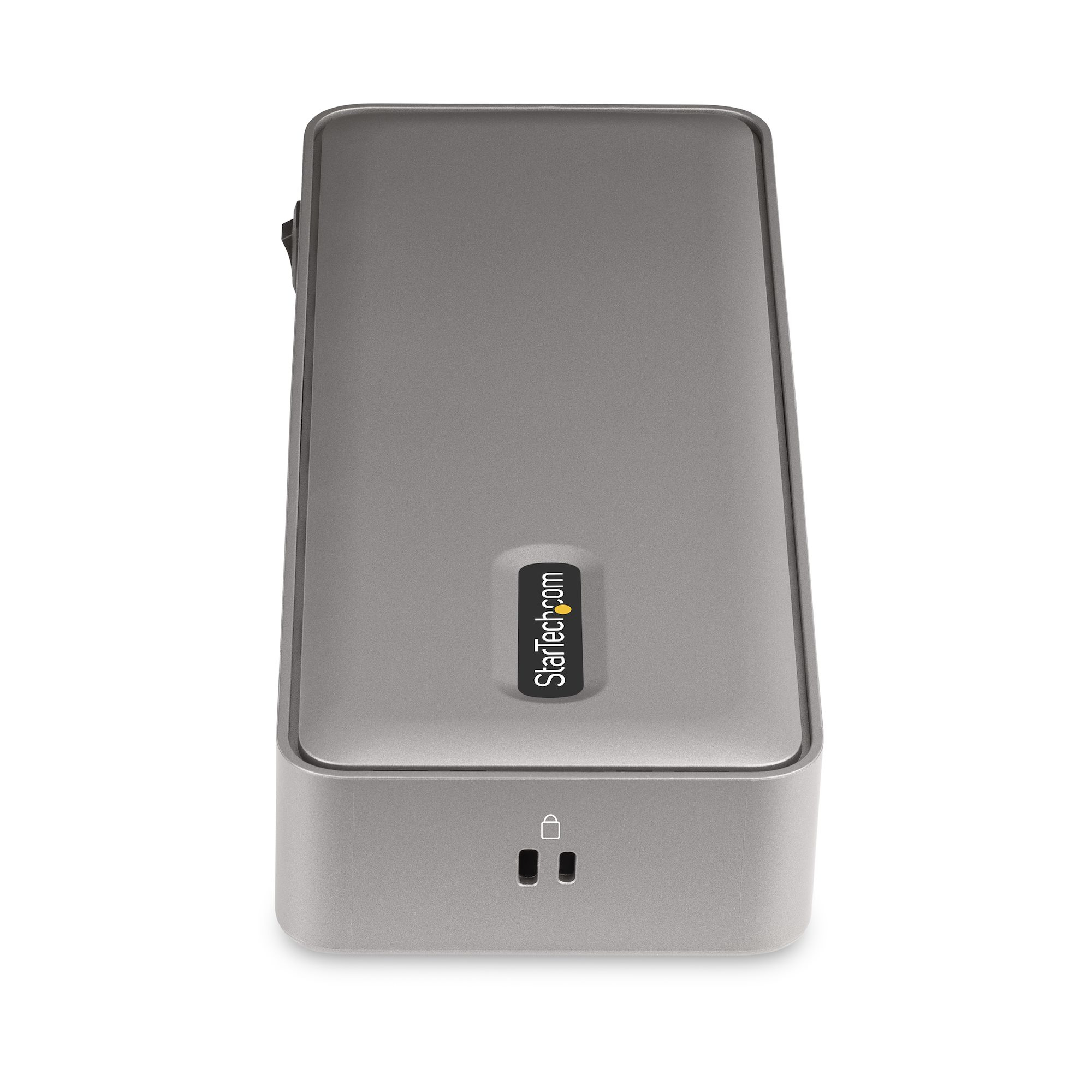

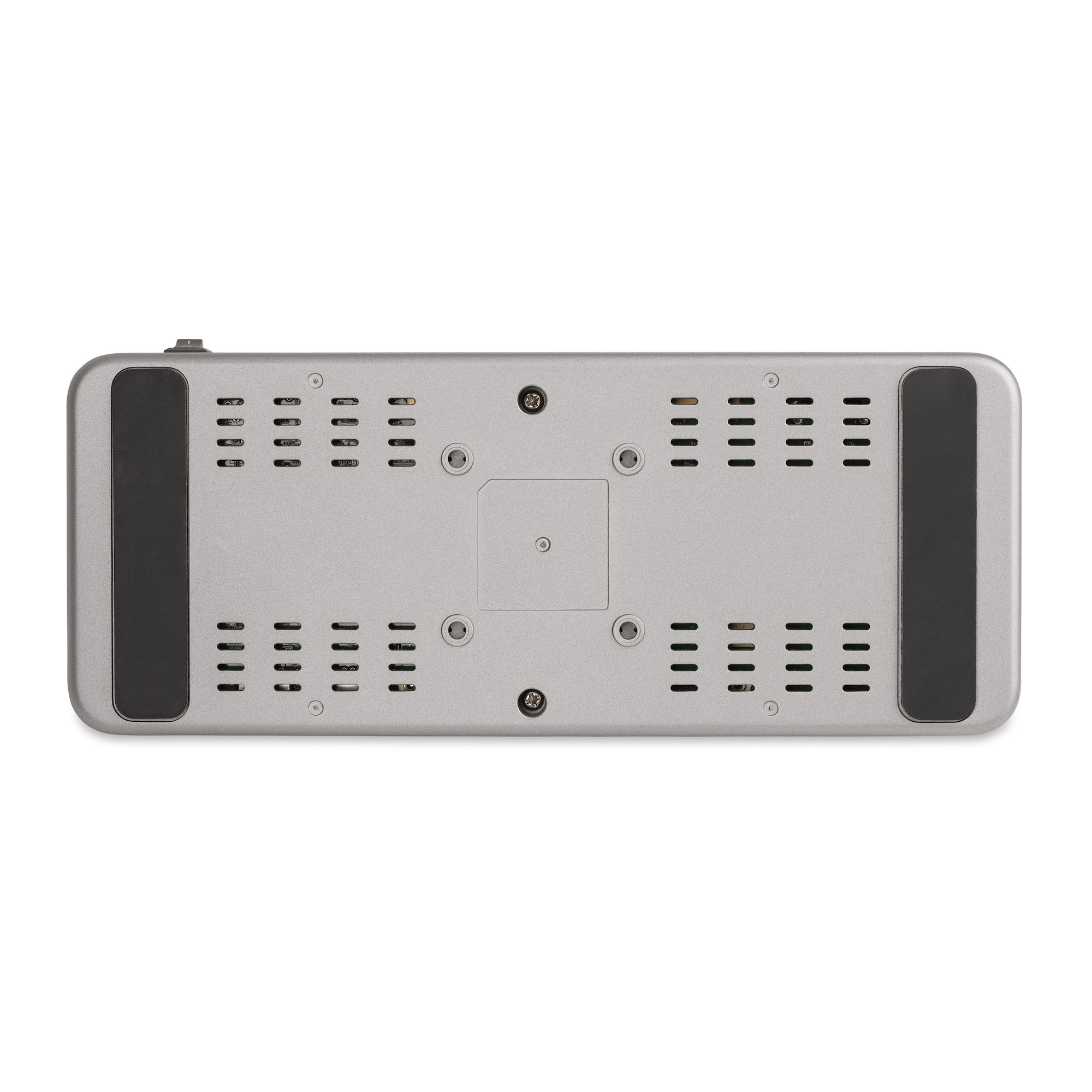

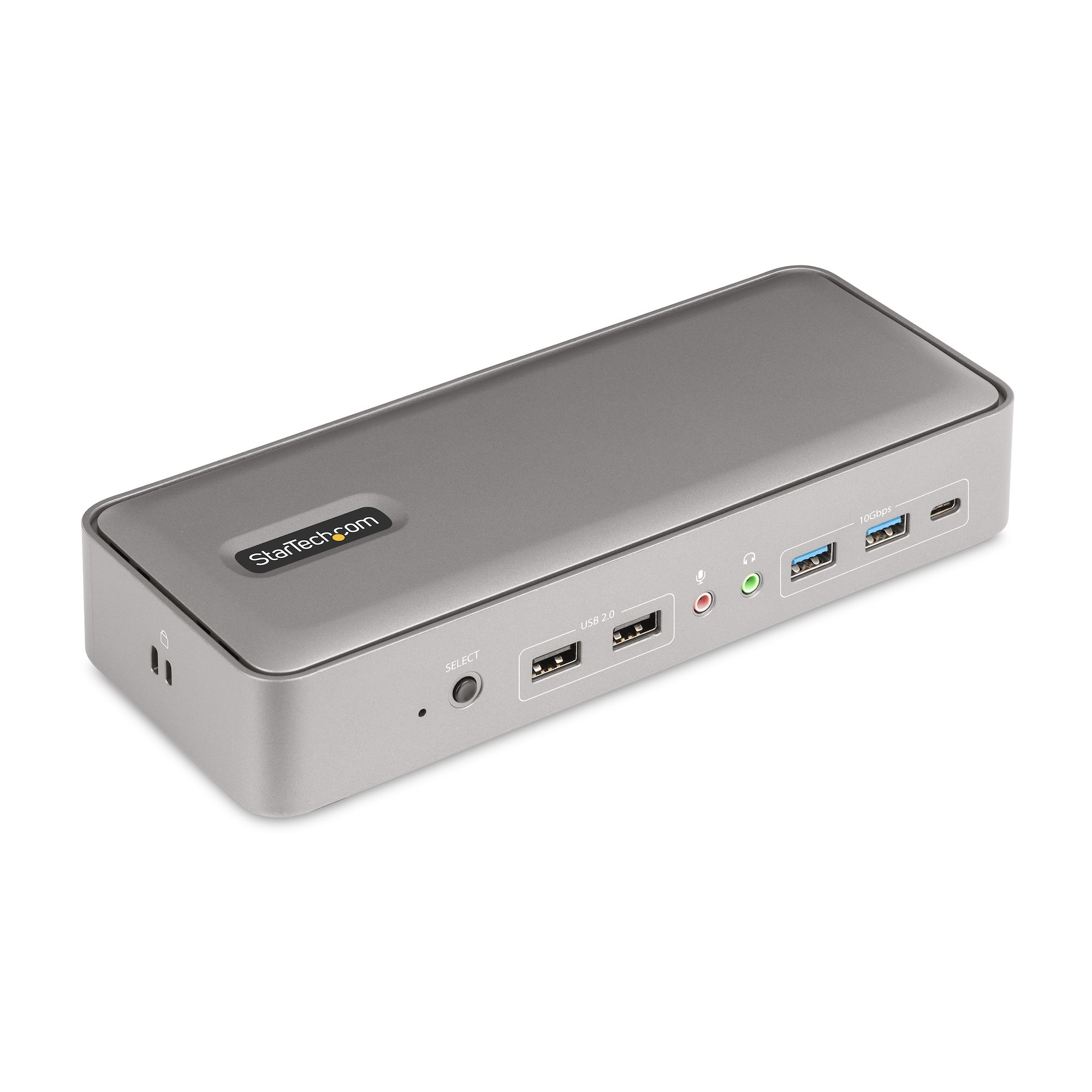

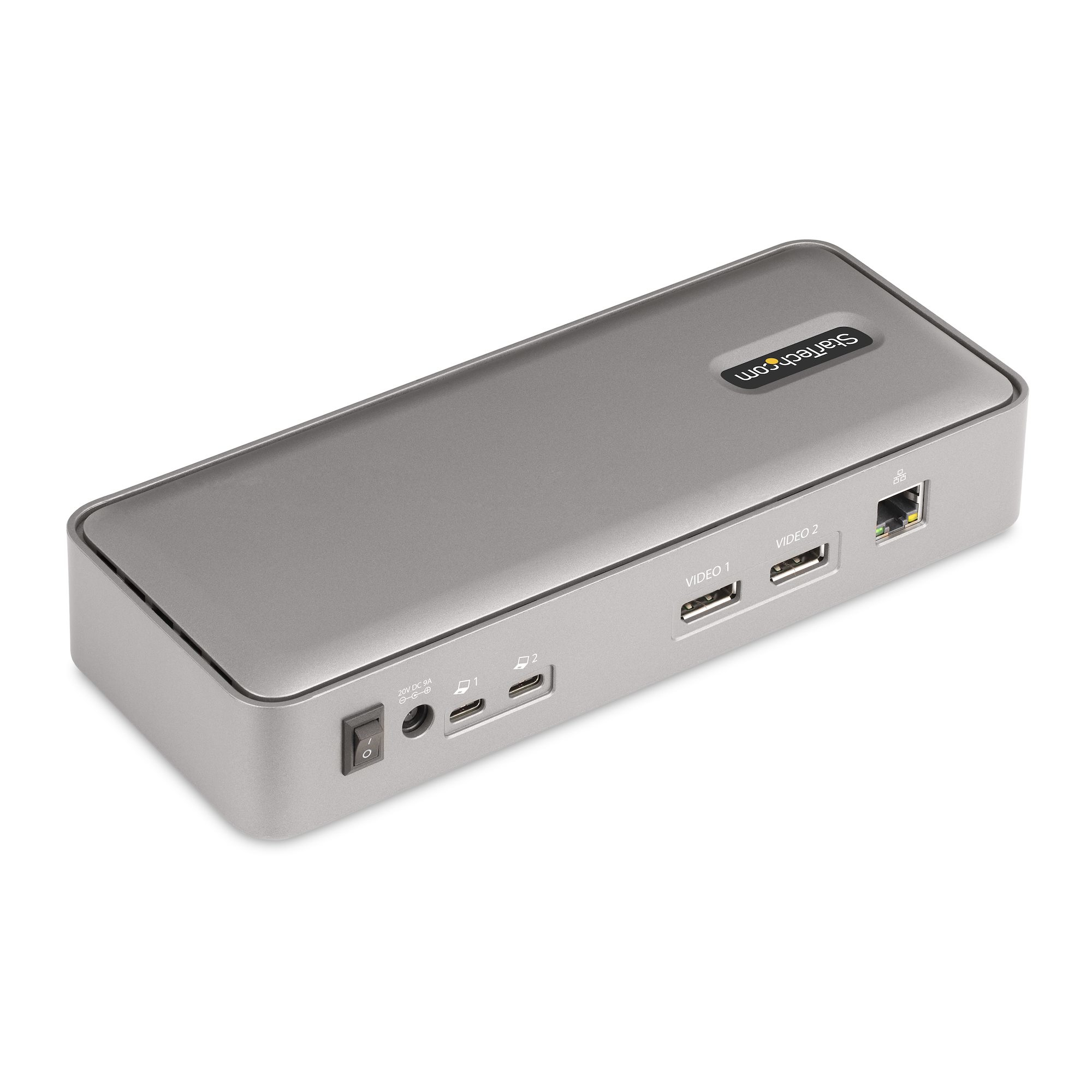

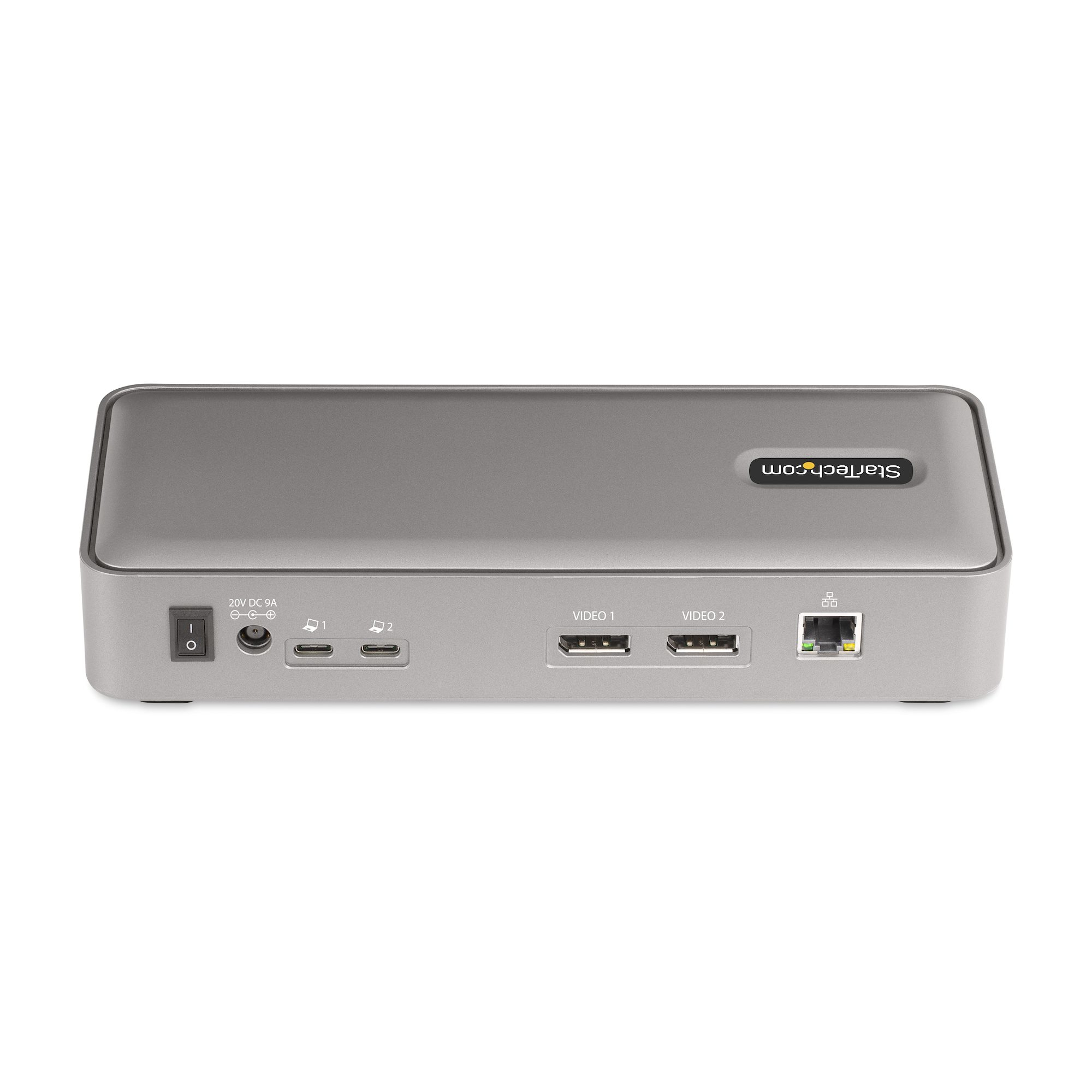

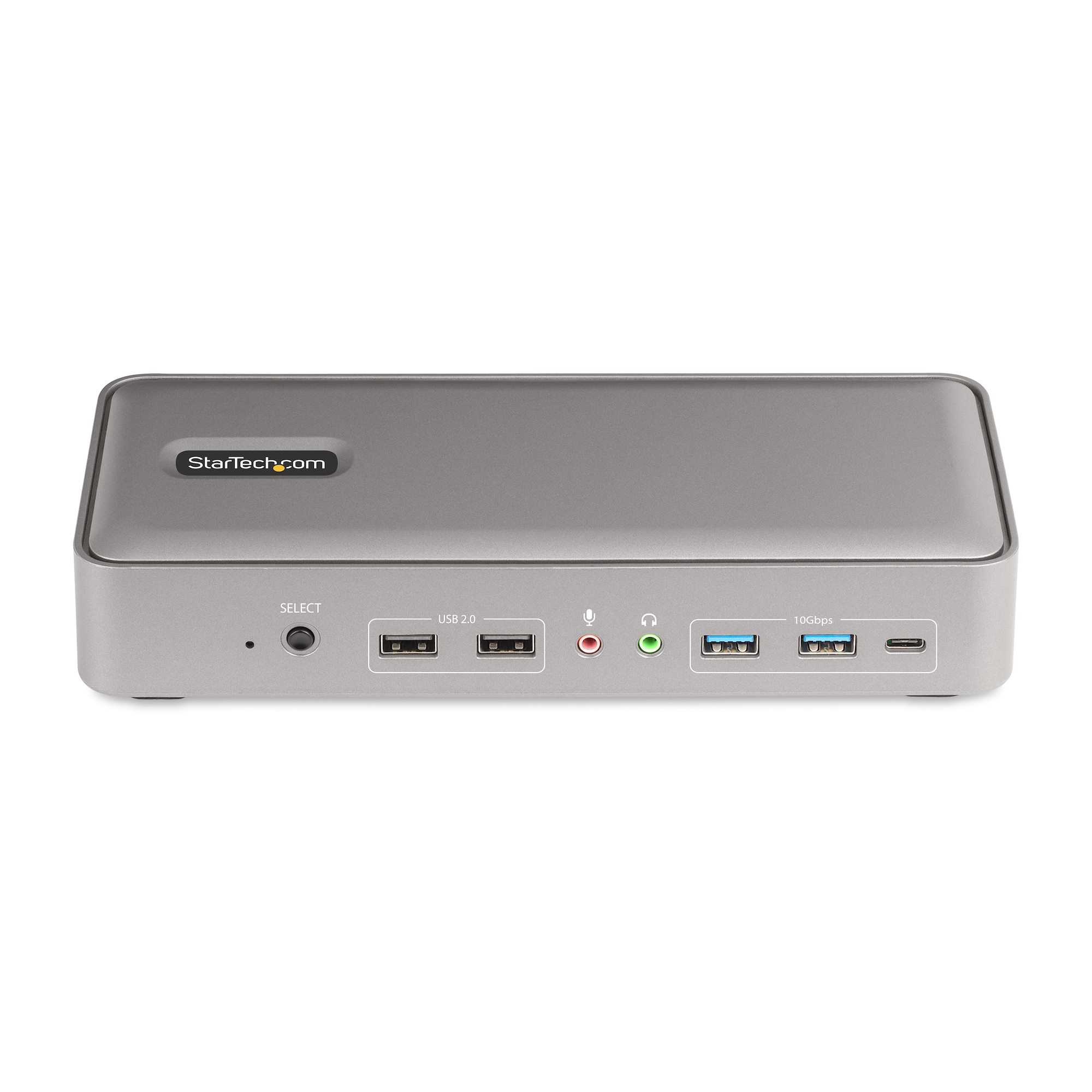

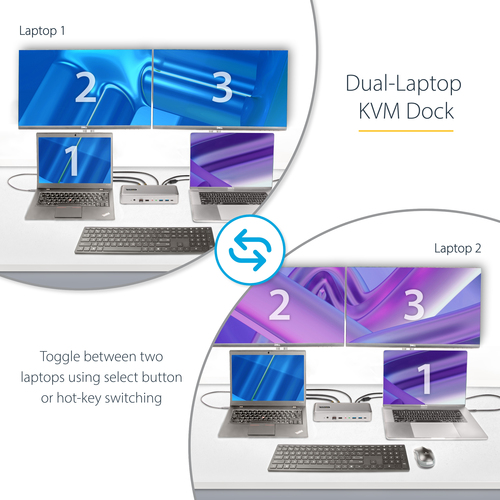

StarTech.com Dual-Laptop USB-C KVM Docking Station, Dual Monitor 4K
StarTech.com

Dual-Laptop USB-C KVM Docking Station, Dual Monitor 4K

60Hz DisplayPort Dock, 5-Port USB Hub, GbE, 90W/45W Power Delivery to Two Laptops, Windows/M

Model 129UE-USBC-KVM-DOCKEAN 065030898492

57 specifications
  • Weight402 g
  • ColourSilver
  • Number of computers controlled2
  • Ethernet LANYes
  • HD type4K Ultra HD
  • Built-in displayNo
See all specifications

Overview

Weight
402 g
Colour
Silver
Number of computers controlled
2
Ethernet LAN
Yes
HD type
4K Ultra HD
Built-in display
No
Brand
StarTech.com
Category
KVM Switch
Model
129UE-USBC-KVM-DOCK
Part number
129UE-USBC-KVM-DOCK
EAN / UPC
065030898492
Also known as
StarTech.com Dual-Laptop USB-C KVM Docking Station, Dual Monitor 4K 60Hz DisplayPort Dock, 5-Port USB Hub, GbE, 90W/45W Power Delivery to Two Laptops, Windows/M

Specifications

57 specifications in 13 groups

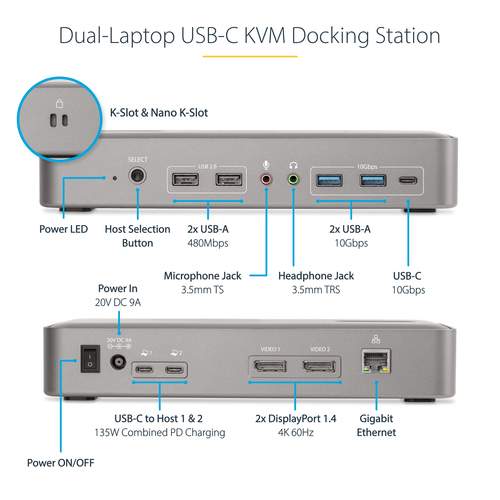

Ports & interfaces

Number of computers controlled2
Keyboard port typeUSB
Mouse port typeUSB
Video port typeDisplayPort
DisplayPorts quantity2
DisplayPort version1.4
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity3
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity2
Audio connectionsYes
Headphone outputs1
Number of microphone inputs1
DC-in jackYes

Network

Ethernet LANYes
Ethernet LAN (RJ-45) ports1
Cabling technology10/100/1000Base-T(X)
Networking standardsIEEE 802.3, IEEE 802.3ab, IEEE 802.3u

Performance

HD type4K Ultra HD
Maximum resolution3840 x 2160 pixels
ChipsetDisplayLink - DL6950, Genesys Logic - GL3590, Genesys Logic - GL9510, Parade - PS186, Realtek - RTL8211F

Design

Product colourSilver
Housing materialPlastic
LED indicatorsLAN, Power
Cable lock slotYes

Display

Built-in displayNo

Power

Input voltage100 - 240 V
Input current2.4 A
Output voltage20 V
Output current9 A
Compatible power plug typesEU, UK
External power adapterYes
Power consumption (typical)180 W

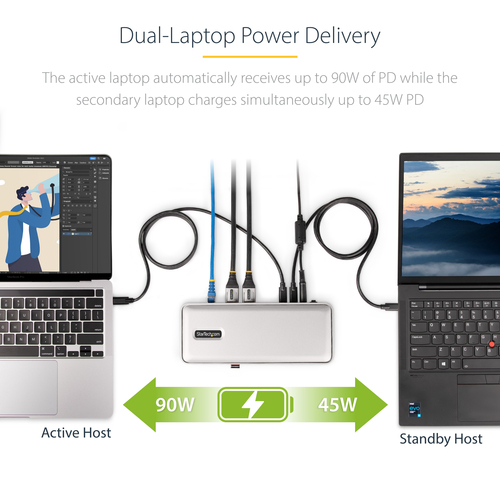

USB Power Delivery (USB PD)Yes
USB Power Delivery up to90 W

System requirements

Windows operating systems supportedWindows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterp
Linux operating systems supportedUbuntu 18.04 LTS, Ubuntu 20.04 LTS, Ubuntu 22.04
Mac operating systems supportedMac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura
Other operating systems supportedChromeOS

Sustainability

Compliance certificatesRoHS
Sustainability complianceYes

Operational conditions

Operating temperature (T-T)-10 - 45 °C
Storage temperature (T-T)-20 - 60 °C
Operating relative humidity (H-H)0 - 90%

Weight & dimensions

Width90 mm
Depth224 mm
Height40 mm
Weight402 g

Packaging data

Package width160 mm
Package depth285 mm
Package height90 mm
Package weight1.8 kg

Packaging content

Cables includedAC, USB Type-C
AC adapter includedYes
Quick installation guideYes

Logistics data

Master (outer) case width395 mm
Master (outer) case length380 mm
Master (outer) case height340 mm
Products per master (outer) case6 pc(s)
