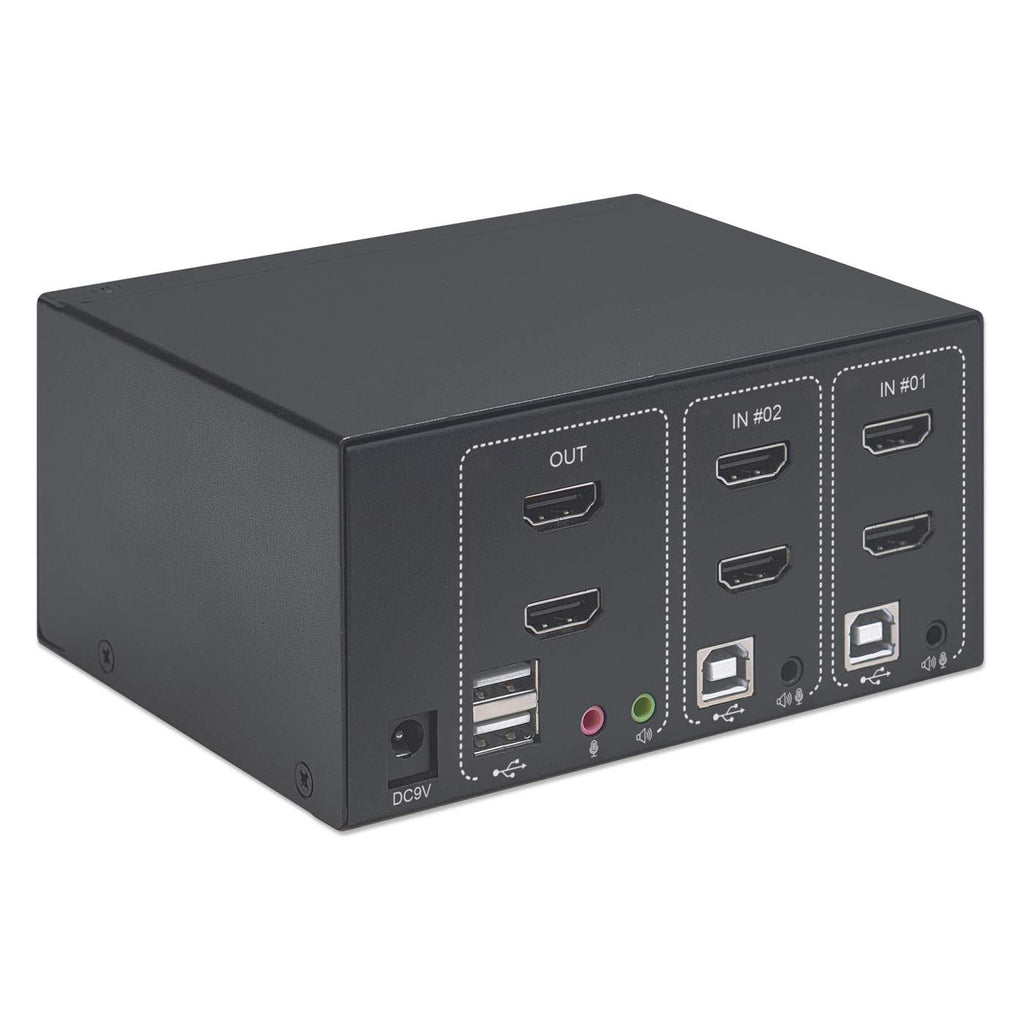

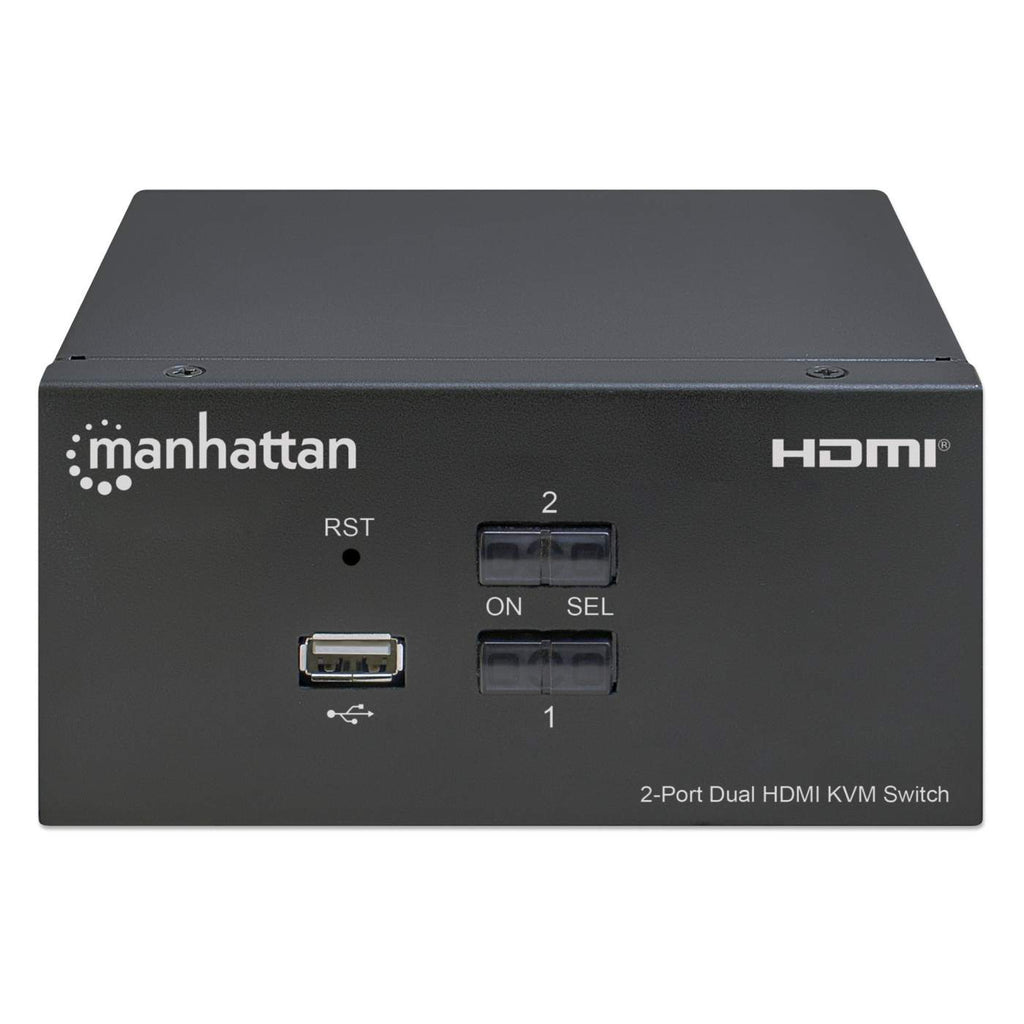

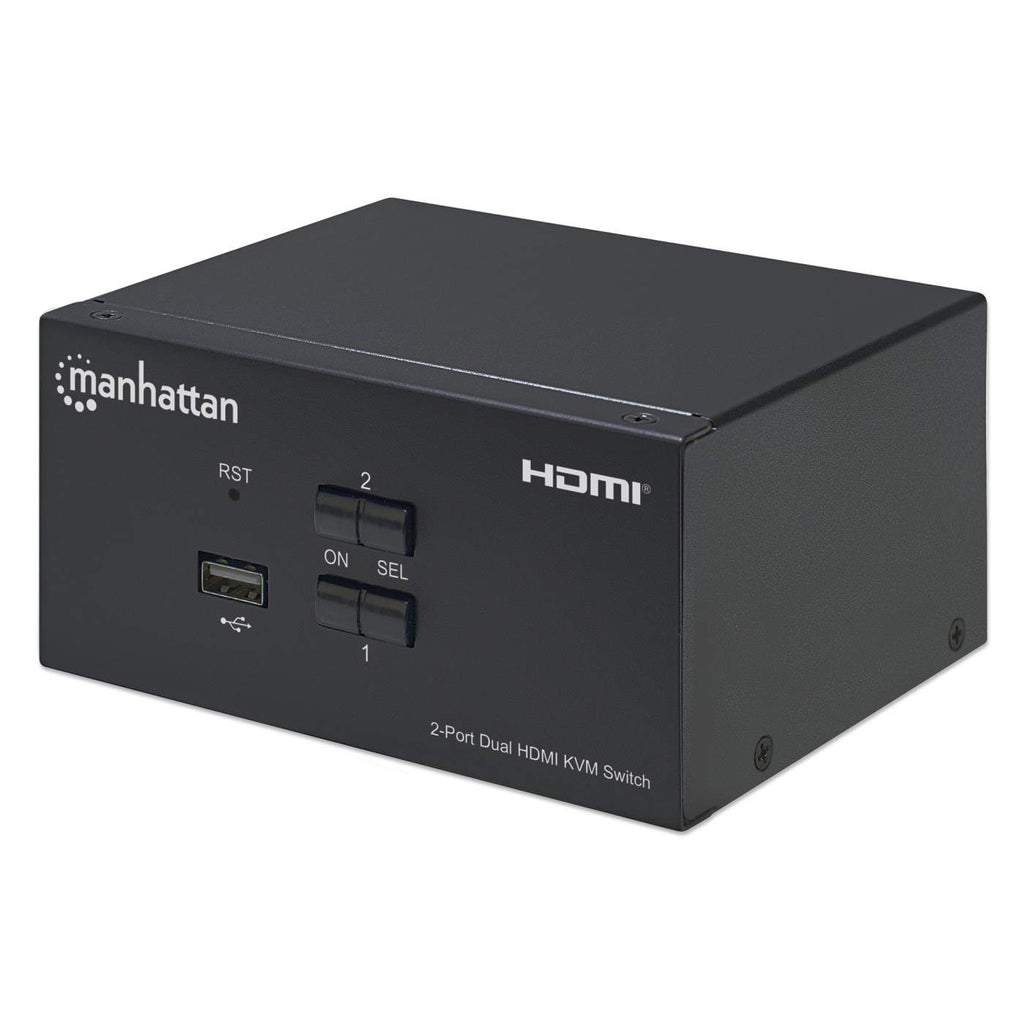

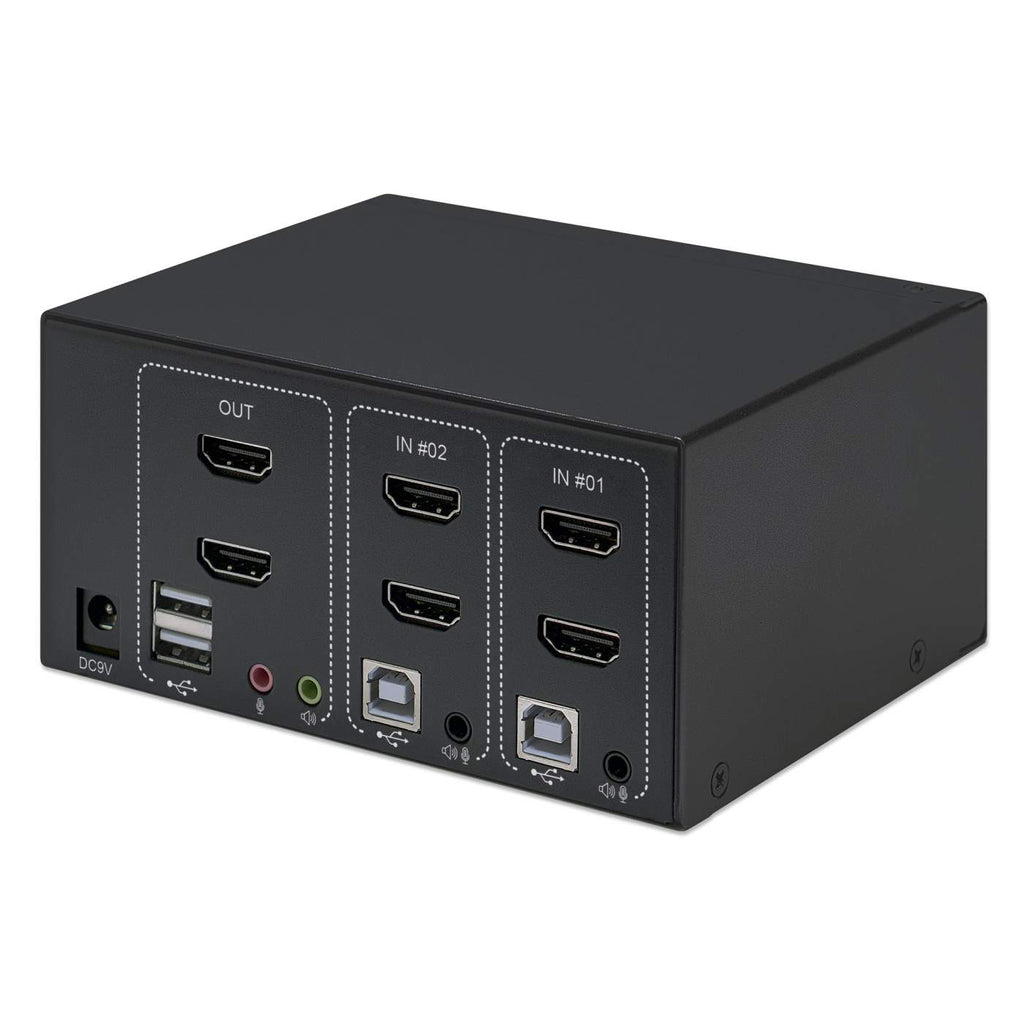

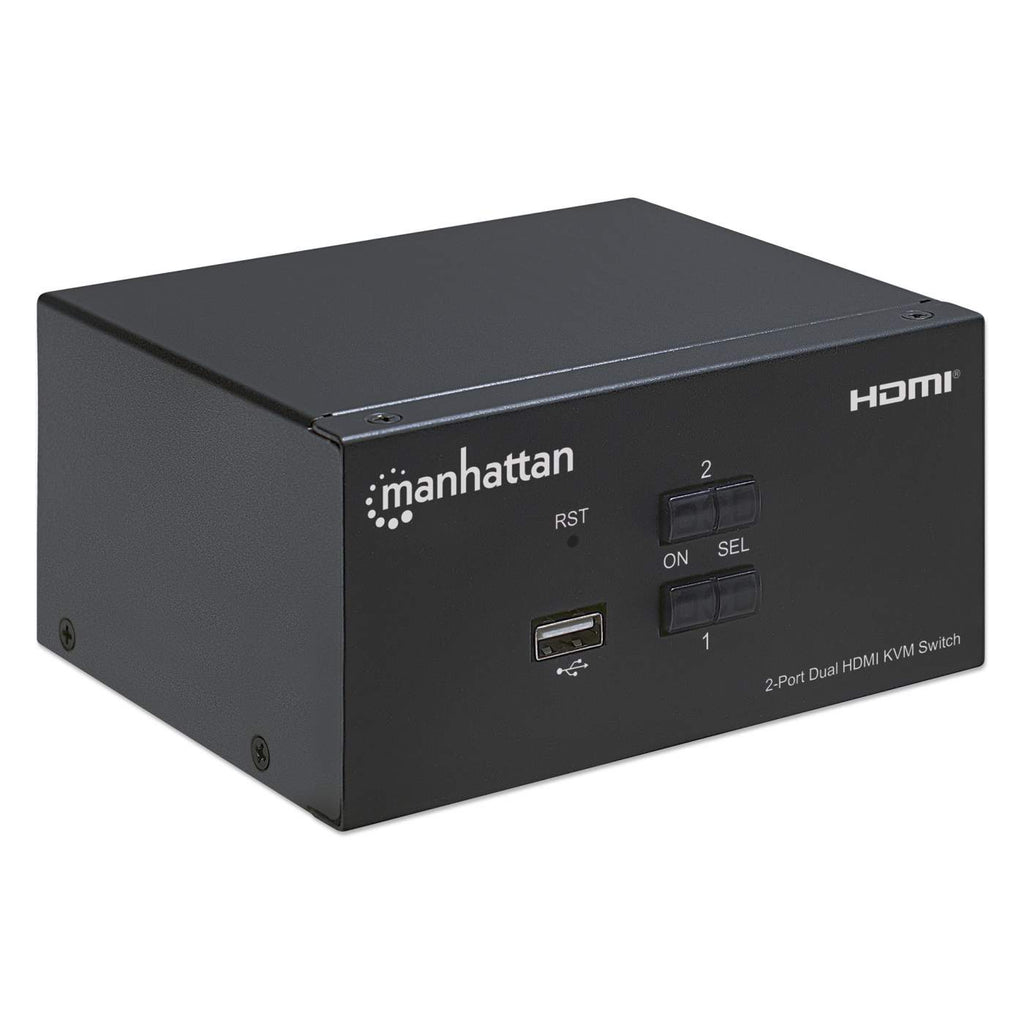

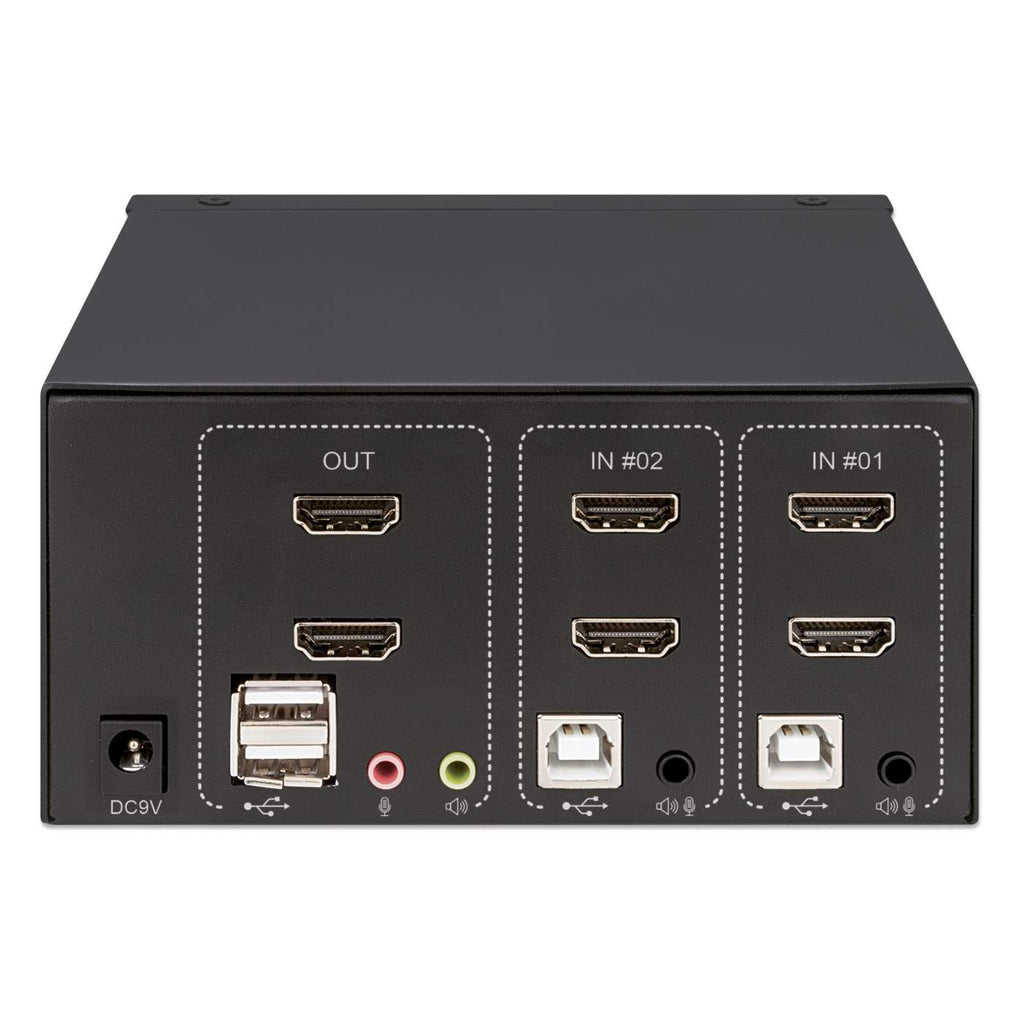

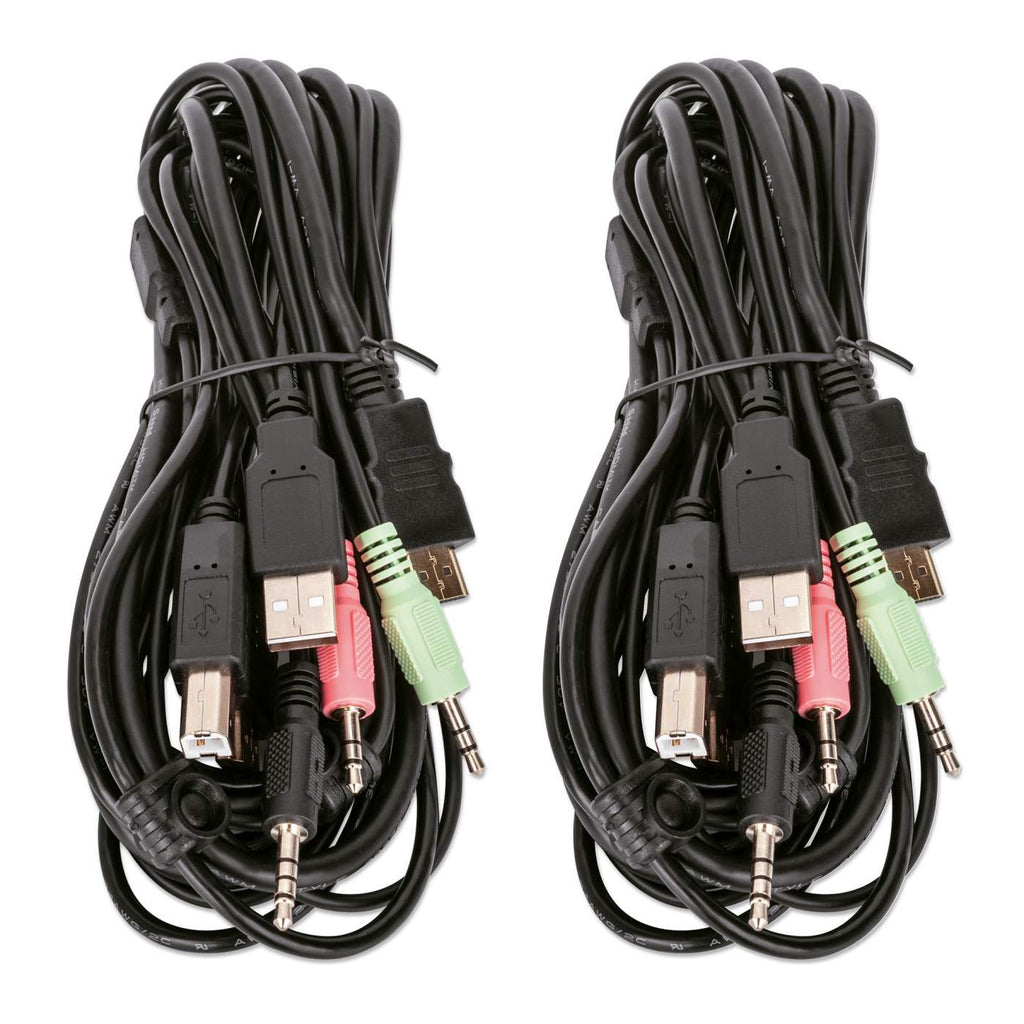

HDMI KVM Switch 2-Port, 4K@30Hz, USB-A/3.5mm Audio/Mic Connections, Cables included, Audio Support, Control 2x computers from one pc/mouse/screen, USB
Model 153522EAN 766623153522
33 specifications
- Weight600 g
- ColourBlack
- Number of computers controlled2
- HD type4K Ultra HD
- Built-in displayNo
- Linux operating systems supportedYes
Overview
- Weight
- 600 g
- Colour
- Black
- Number of computers controlled
- 2
- HD type
- 4K Ultra HD
- Built-in display
- No
- Linux operating systems supported
- Yes
- Brand
- Manhattan
- Category
- KVM Switch
- Model
- 153522
- Part number
- 153522
- EAN / UPC
- 766623153522
- Also known as
- Manhattan HDMI KVM Switch 2-Port, 4K@30Hz, USB-A/3.5mm Audio/Mic Connections, Cables included, Audio Support, Control 2x computers from one pc/mouse/screen, USB
Specifications
33 specifications in 9 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Number of computers controlled | 2 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | HDMI |
| HDMI ports quantity | 4 |
| USB 2.0 Type-B ports quantity | 2 |
| Console USB ports quantity | 6 |
| Console ports | 3.5mm headphone, 3.5mm mic, HDMI, USB A |
| USB 2.0 Type-A hub ports quantity | 1 |
| DC-in jack | Yes |
Performance
| Specification | Value |
|---|---|
| HD type | 4K Ultra HD |
| Maximum resolution | 3840 x 2160 pixels |
| Video bandwidth | 30 Hz |
| HDCP | Yes |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Housing material | Metal |
| LED indicators | Yes |
| Push button | Yes |
| Certification | CE RoHS FCC |
Display
| Specification | Value |
|---|---|
| Built-in display | No |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 10, Windows 2000, Windows 7, Windows 8, Windows 8.1, Windows Vista, Windows XP |
| Linux operating systems supported | Yes |
| Mac operating systems supported | Mac OS 9.0, Mac OS 9.1, Mac OS 9.2, Mac OS X 10.0 Cheetah, Mac OS X 10.1 Puma, Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 10.2 Jaguar, Mac OS X 10.3 Panther |
| Other operating systems supported | Novell NetWare 6.x |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 92 mm |
| Depth | 132 mm |
| Height | 66 mm |
| Weight | 600 g |
Packaging data
| Specification | Value |
|---|---|
| Package type | Box |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176200 |
