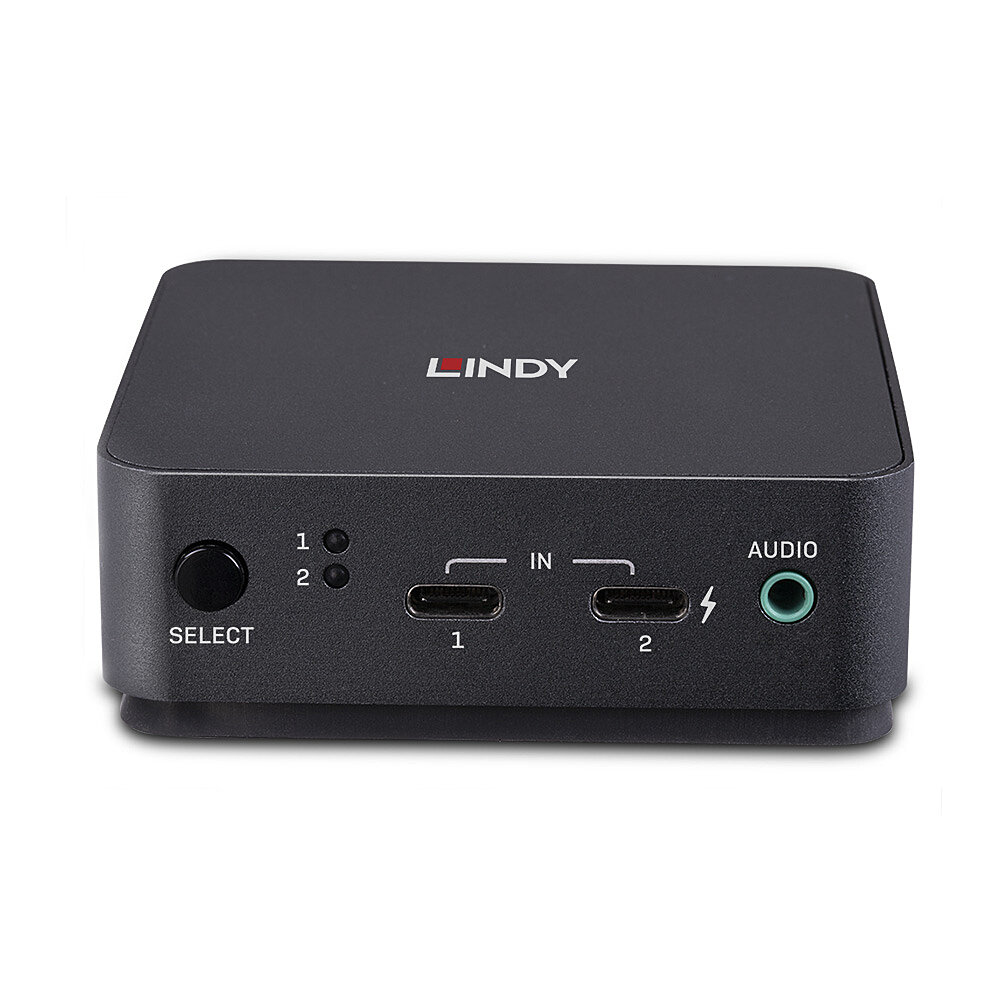

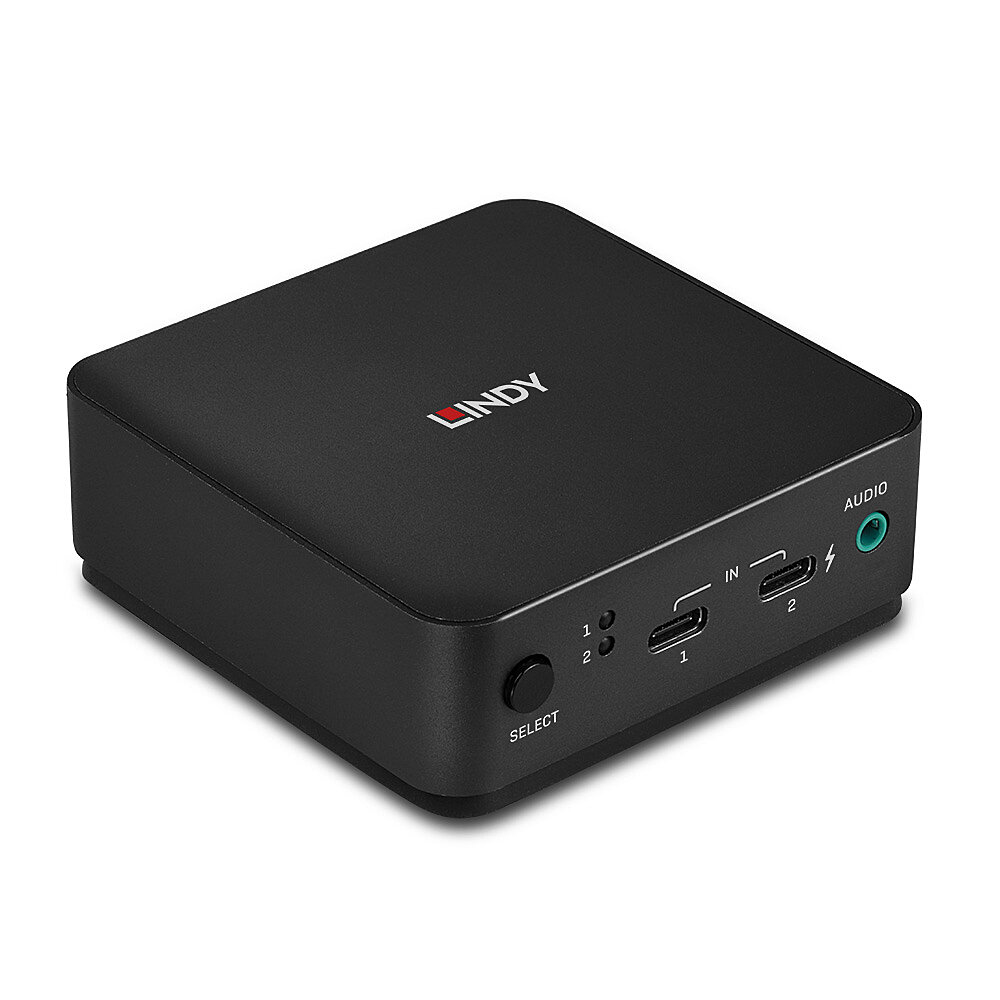

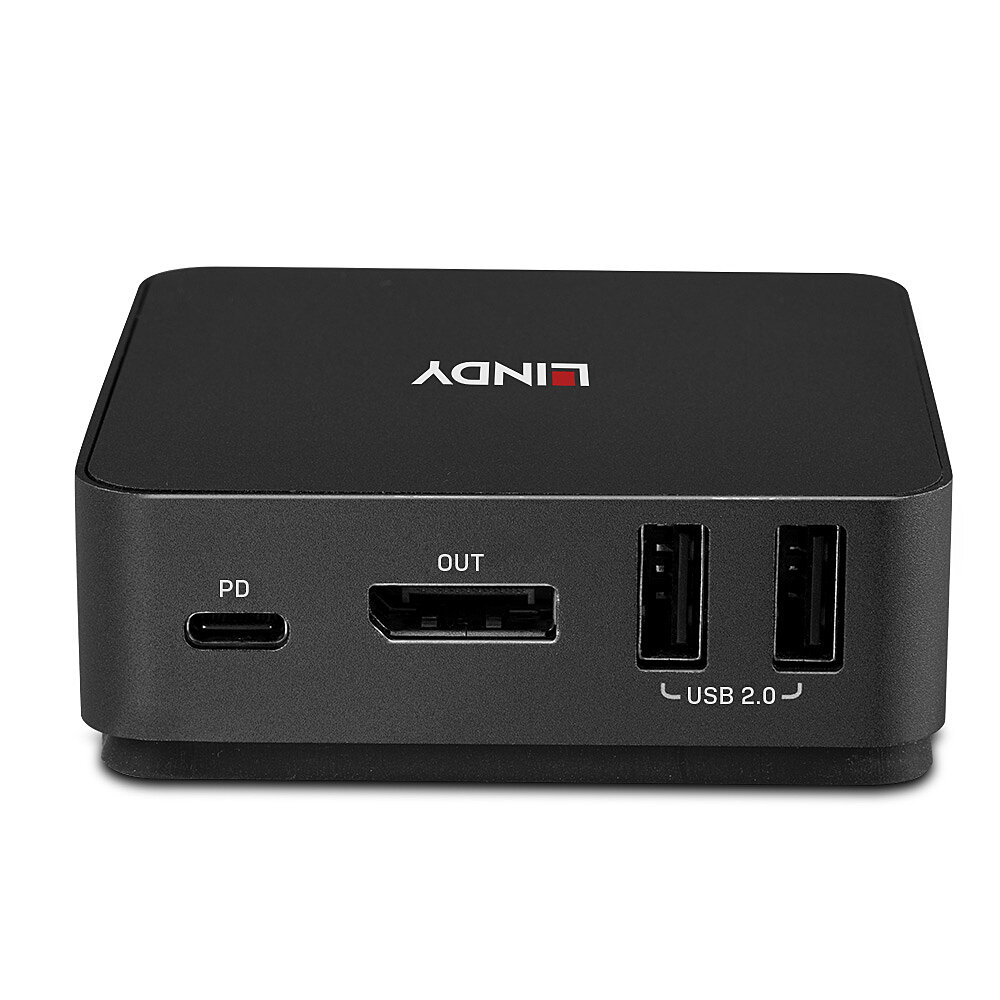

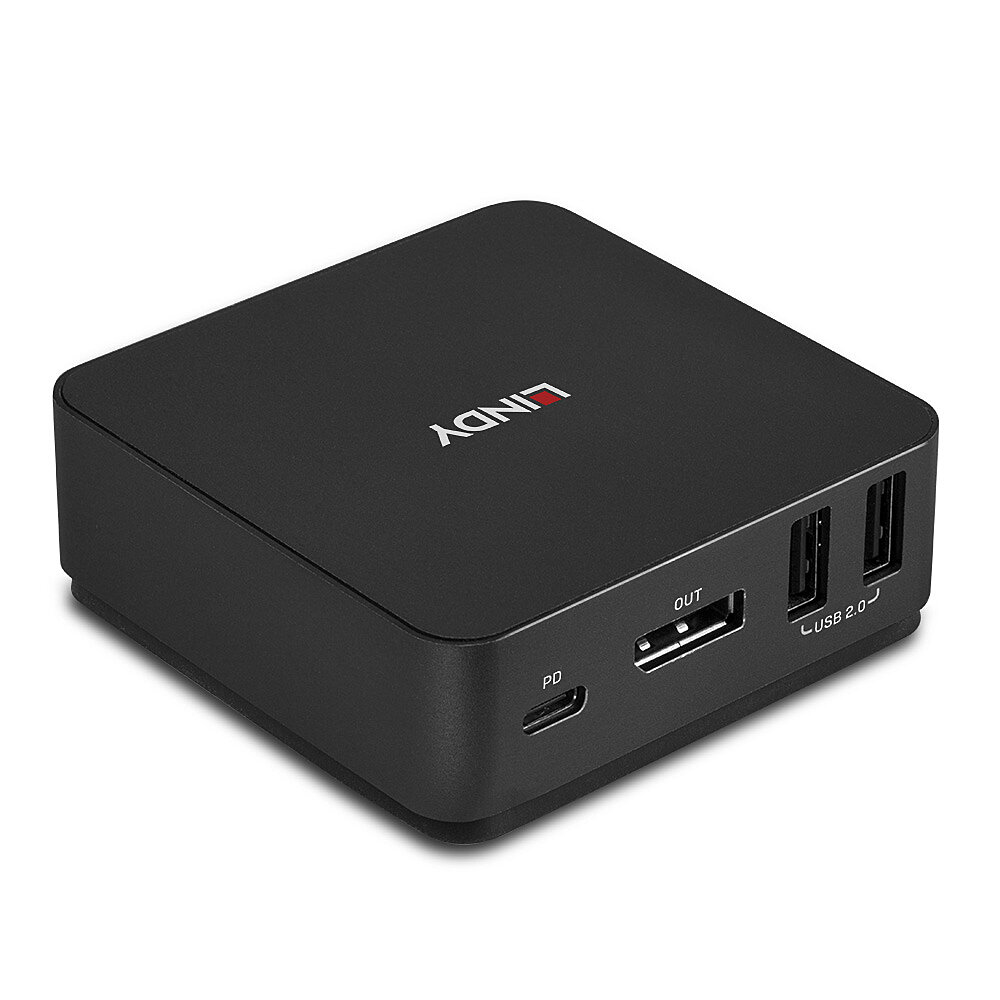

2 Port Type C, DisplayPort 1.2 KVM Switch
Model 42320EAN 4002888423205
41 specifications
- Weight210 g
- ColourGrey
- Number of computers controlled2
- Ethernet LANNo
- HD type4K Ultra HD
- USB Power Delivery (USB PD)Yes
Overview
- Weight
- 210 g
- Colour
- Grey
- Number of computers controlled
- 2
- Ethernet LAN
- No
- HD type
- 4K Ultra HD
- USB Power Delivery (USB PD)
- Yes
- Brand
- Lindy
- Category
- KVM Switch
- Model
- 42320
- Part number
- 42320
- EAN / UPC
- 4002888423205
- Also known as
- Lindy 2 Port Type C, DisplayPort 1.2 KVM Switch
Specifications
41 specifications in 11 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Number of computers controlled | 2 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | DisplayPort |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.2 |
| Console USB ports quantity | 2 |
| Console ports | 3.5mm headphone, DisplayPort, USB A |
| Console DisplayPorts ports quantity | 1 |
| Audio connections | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | No |
Performance
| Specification | Value |
|---|---|
| HD type | 4K Ultra HD |
| Maximum resolution | 3840 x 2160 pixels |
| Automatic switching | Yes |
| HDCP | Yes |
| HDCP version | 1.3 |
Design
| Specification | Value |
|---|---|
| Rack mounting | No |
| Product colour | Grey |
| Housing material | Metal |
| Cascadable | No |
| LED indicators | Yes |
| Push button | Yes |
Display
| Specification | Value |
|---|---|
| Built-in display | No |
Power
| Specification | Value |
|---|---|
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery revision | 3.0 |
| USB Power Delivery up to | 100 W |
Sustainability
| Specification | Value |
|---|---|
| Compliance certificates | CE, Federal Communications Commission (FCC), RoHS, UKCA |
| Sustainability compliance | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 45 °C |
| Storage temperature (T-T) | -15 - 60 °C |
| Operating relative humidity (H-H) | 0 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 78 mm |
| Depth | 78 mm |
| Height | 26.8 mm |
| Weight | 210 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 183 mm |
| Package depth | 138 mm |
| Package height | 53 mm |
| Package weight | 310 g |
Packaging content
| Specification | Value |
|---|---|
| Cables included | USB Type-C |
| Manual | Yes |
