2 Port Dual Head HDMI 4K60, USB 3.0 KVM Switch
Model 39314EAN 4002888393140
48 specifications
- Weight609 g
- ColourBlack
- Number of computers controlled4
- HD type4K Ultra HD
- Rack mountingNo
- Power sourceDC
Overview
- Weight
- 609 g
- Colour
- Black
- Number of computers controlled
- 4
- HD type
- 4K Ultra HD
- Rack mounting
- No
- Power source
- DC
- Brand
- Lindy
- Category
- KVM Switch
- Model
- 39314
- Part number
- 39314
- EAN / UPC
- 4002888393140
- Also known as
- Lindy 2 Port Dual Head HDMI 4K60, USB 3.0 KVM Switch
Specifications
48 specifications in 10 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Number of computers controlled | 4 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | HDMI |
| HDMI ports quantity | 4 |
| HDMI version | 2.0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity | 2 |
| Console USB ports quantity | 4 |

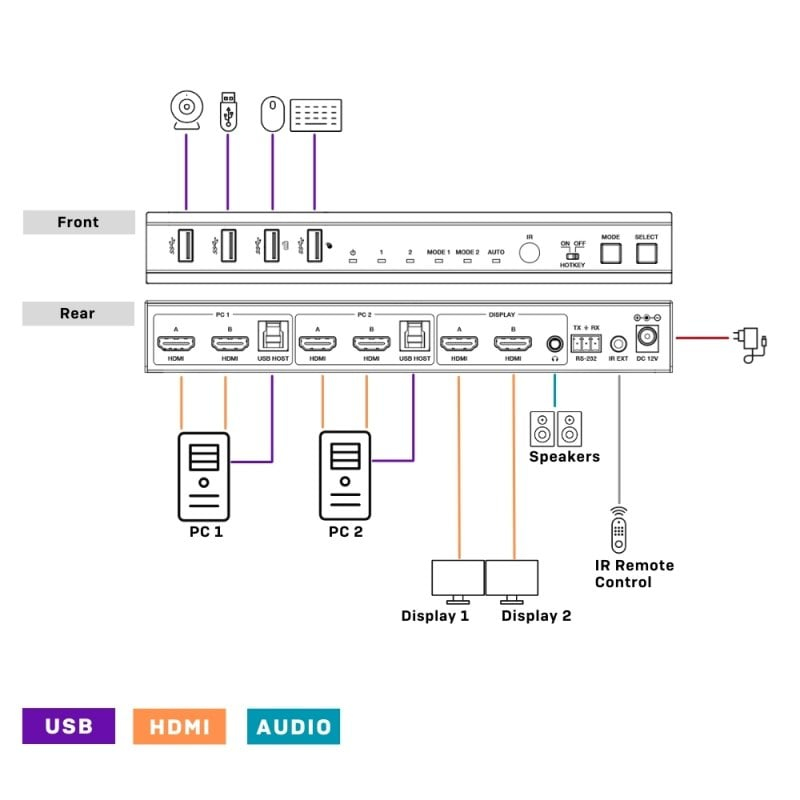

| Console ports | 3.5mm headphone, HDMI, USB A |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity | 4 |
| USB connector type | USB Type-A, USB Type-B |
| Audio connections | Yes |
| Headphone outputs | 2 |
| DC-in jack | Yes |
Performance
| Specification | Value |
|---|---|
| HD type | 4K Ultra HD |
| Maximum resolution | 4096 x 2160 pixels |
| Video bandwidth | 60 Hz |
| HDCP | Yes |
| HDCP version | 2.3 |
Design
| Specification | Value |
|---|---|
| Rack mounting | No |
| Product colour | Black |
| Housing material | Metal |
| LED indicators | Status |
| Push button | Yes |
| Hot keys | Yes |
| Certification | CE, UKCA, FCC, RoHS, REACH & California Proposition 65 |
Display
| Specification | Value |
|---|---|
| Built-in display | No |
Power
| Specification | Value |
|---|---|
| Power source | DC |
| Input voltage | 12 V |
| Output current | 1 A |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 20 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 220 mm |
| Depth | 100 mm |
| Height | 30 mm |
| Weight | 609 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 300 mm |
| Package depth | 185 mm |
| Package height | 115 mm |
| Package weight | 1.61 kg |
| Package type | Box |
Packaging content
| Specification | Value |
|---|---|
| Cables included | DC, HDMI, USB Type-A to Micro USB-B |
| Manual | Yes |
| Quick installation guide | Yes |
| Rack mount kit | Yes |
| Remote control included | Yes |
Other features
| Specification | Value |
|---|---|
| Warranty period | 2 year(s) |
