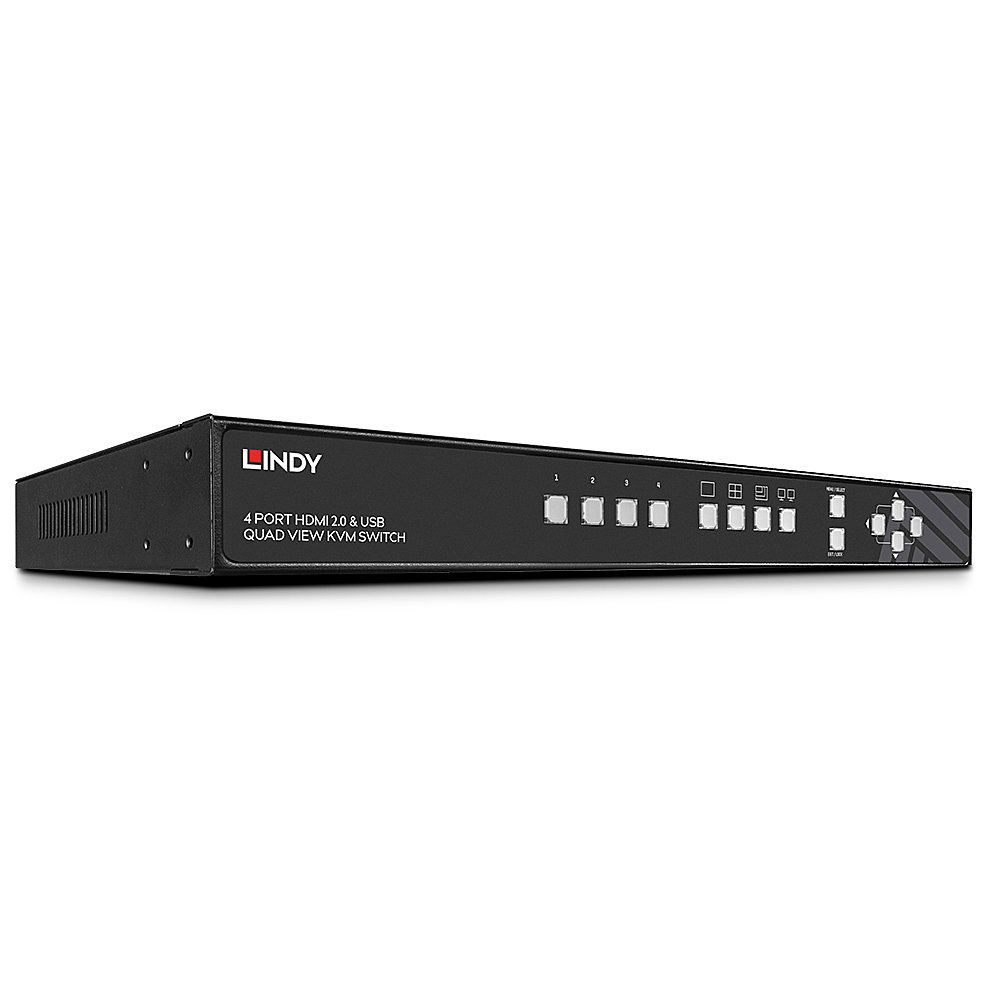

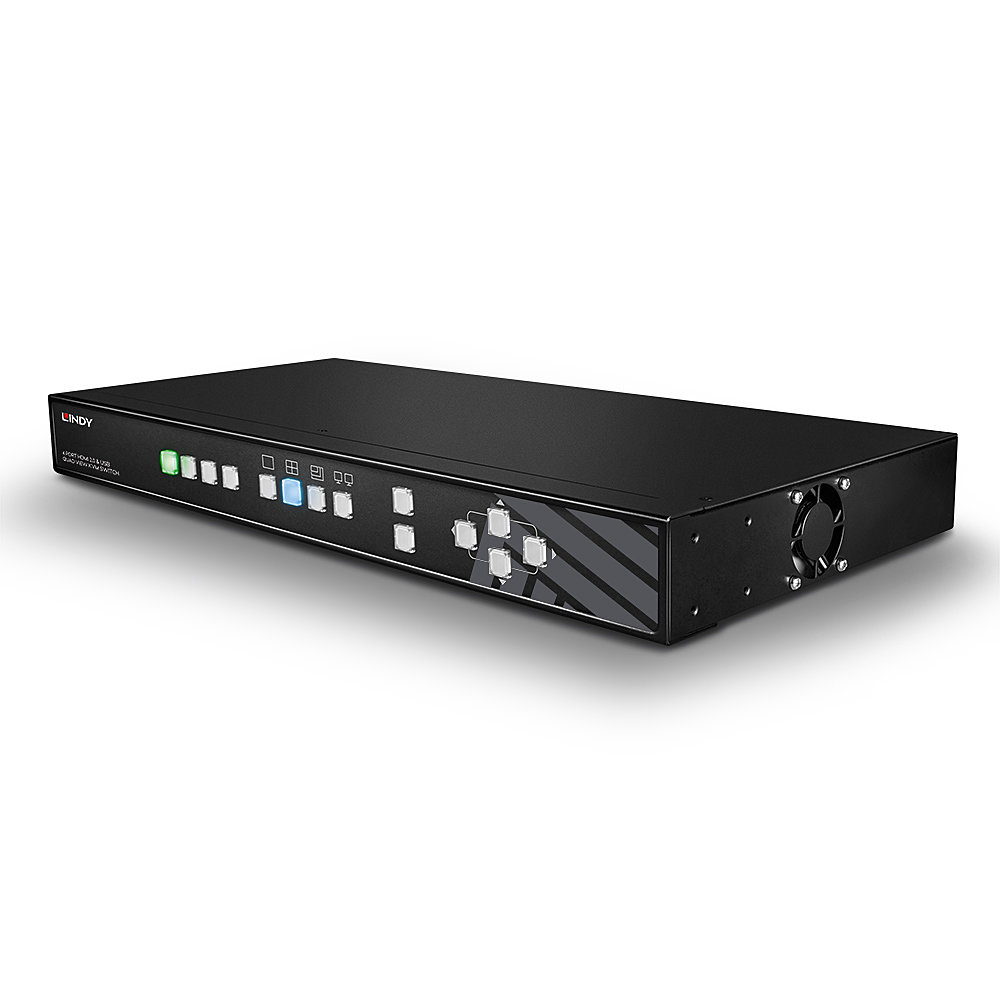

4 Port HDMI 4K Quad View KVM Switch
Model 32329EAN 4002888323291
39 specifications
- Weight2.7 kg
- ColourBlack
- Number of computers controlled4
- HD type4K Ultra HD
- Rack capacity1U
- Power sourceDC
Overview
- Weight
- 2.7 kg
- Colour
- Black
- Number of computers controlled
- 4
- HD type
- 4K Ultra HD
- Rack capacity
- 1U
- Power source
- DC
- Brand
- Lindy
- Category
- KVM Switch
- Model
- 32329
- Part number
- 32329
- EAN / UPC
- 4002888323291
- Also known as
- Lindy 4 Port HDMI 4K Quad View KVM Switch
Specifications
39 specifications in 10 groups

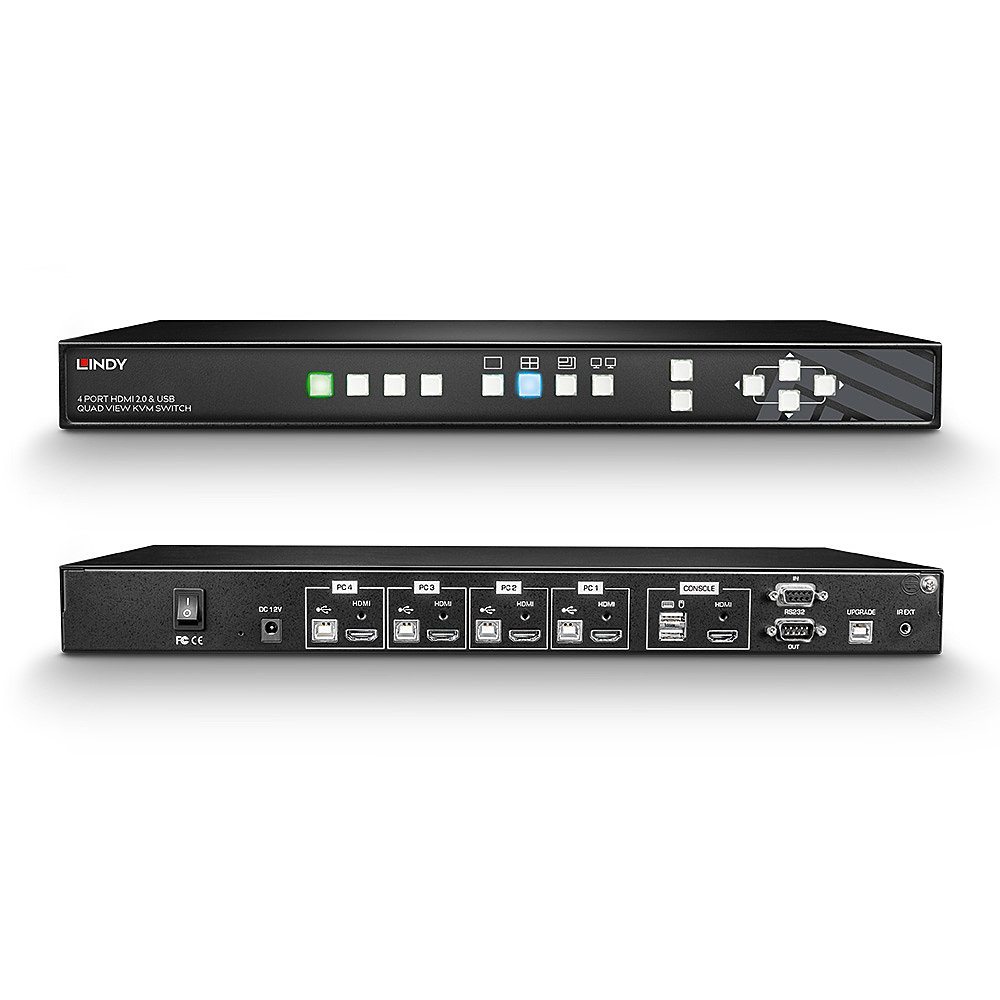

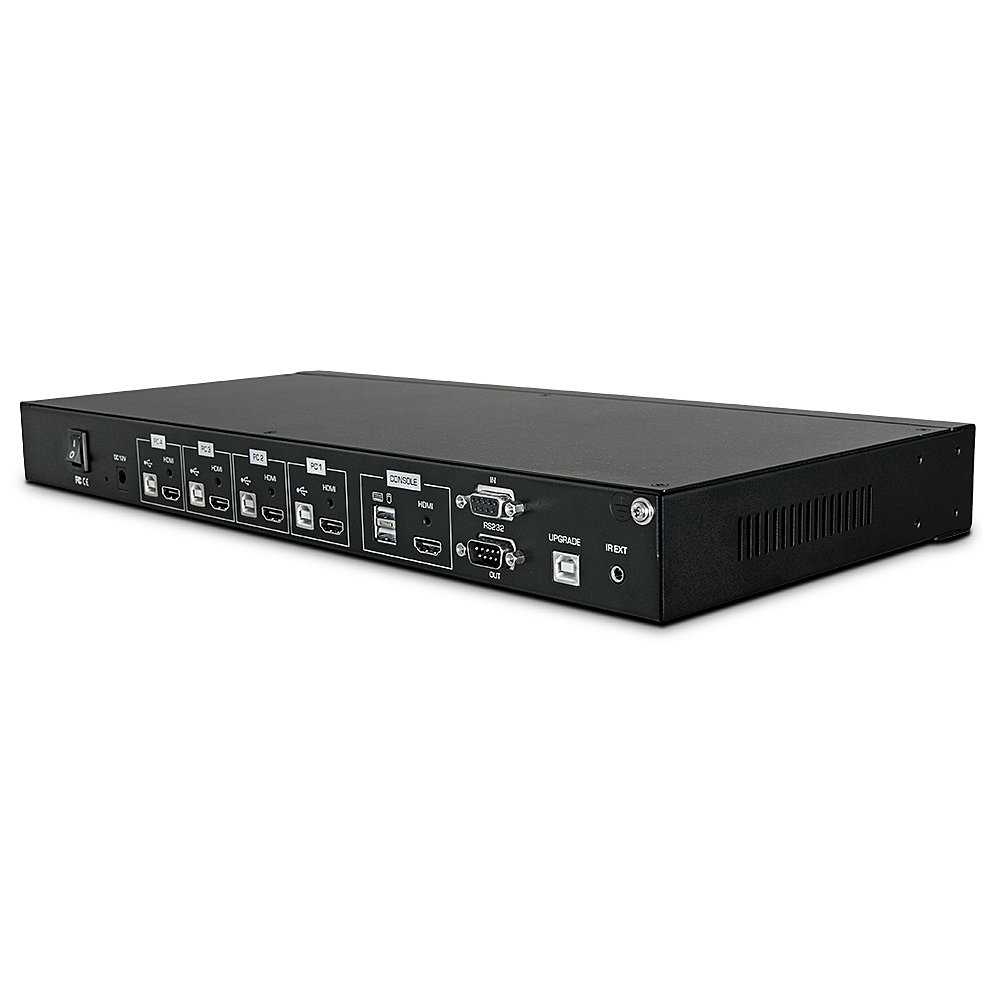

Ports & interfaces
| Specification | Value |
|---|---|
| Number of computers controlled | 4 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | HDMI |
| HDMI ports quantity | 6 |
| HDMI version | 2.0 |
| USB 2.0 Type-B ports quantity | 4 |
| Console USB ports quantity | 2 |
| Console ports | HDMI, USB A |
| USB 2.0 Type-A hub ports quantity | 2 |
Performance
| Specification | Value |
|---|---|
| HD type | 4K Ultra HD |
| Maximum resolution | 3840 x 2160 pixels |
| HDCP | Yes |
Design
| Specification | Value |
|---|---|
| Rack capacity | 1U |
| Rack mounting | Yes |
| Product colour | Black |
| Housing material | Metal |
| Cascadable | Yes |
| Certification | CE, FCC, REACH |
Power
| Specification | Value |
|---|---|
| Power source | DC |
| Input voltage | 12 V |
| Input current | 5 A |
Sustainability
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 438 mm |
| Depth | 200 mm |
| Height | 44 mm |
| Weight | 2.7 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 570 mm |
| Package depth | 245 mm |
| Package height | 105 mm |
| Package weight | 3.64 kg |
| Package type | Box |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Manual | Yes |
| Rack mount kit | Yes |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176200 |
