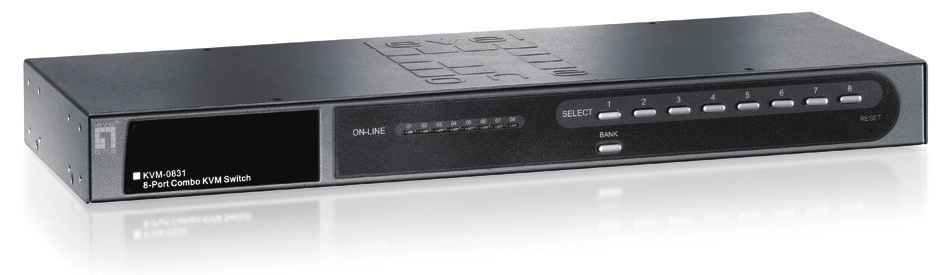

8-Port PS/2-USB VGA KVM Switch
Model KVM-0831EAN 4015867138076
46 specifications
- ColourBlack, Grey
- Number of computers controlled8
- Maximum resolution1920 x 1440 pixels
- Rack capacity1U
- Built-in displayYes
- Output voltage12 V
Overview
- Colour
- Black, Grey
- Number of computers controlled
- 8
- Maximum resolution
- 1920 x 1440 pixels
- Rack capacity
- 1U
- Built-in display
- Yes
- Output voltage
- 12 V
- Brand
- LevelOne
- Category
- KVM Switch
- Model
- KVM-0831
- Part number
- KVM-0831
- EAN / UPC
- 4015867138076, 878742001476
- Also known as
- LevelOne 8-Port PS/2-USB VGA KVM Switch
Specifications
46 specifications in 11 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Number of computers controlled | 8 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | VGA |
| VGA (D-Sub) ports quantity | 8 |
| Console USB ports quantity | 2 |
| Console ports | USB A, VGA (D-Sub) |
| USB connector type | USB Type-A |
| Audio connections | No |
| DC-in jack | Yes |
Performance
| Specification | Value |
|---|---|
| Maximum resolution | 1920 x 1440 pixels |
| Scan interval | 5,99 s |
| Hot-Plug support | Yes |
| Maximum operating distance | 300 m |
Design
| Specification | Value |
|---|---|
| Rack capacity | 1U |
| Rack mounting | Yes |
| Product colour | Black, Grey |
| Cascadable | Yes |
| LED indicators | Yes |
| Push button | Yes |
| Hot keys | Yes |
| Mean time between failures (MTBF) | 75138.181 h |
Display
| Specification | Value |
|---|---|
| Built-in display | Yes |
| On Screen Display (OSD) | Yes |
Power
| Specification | Value |
|---|---|
| Output voltage | 12 V |
| Output current | 1 A |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Other operating systems supported | Novell NetWare 3.x, Novell NetWare 4.x, Novell NetWare 6.x |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 160 mm |
| Depth | 445 mm |
| Height | 45 mm |
Packaging data
| Specification | Value |
|---|---|
| Package width | 325 mm |
| Package depth | 550 mm |
| Package height | 320 mm |
| Package weight | 9.6 kg |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Manual | Yes |
| Rack mount kit | Yes |
| Rubber feet | Yes |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176200 |
| Country of origin | China |
