8-Port PS/2 VGA KVM Switch
Model KVM-0811EAN 4015867138014
43 specifications
- Weight2 kg
- ColourBlack, Grey
- Number of computers controlled8
- Maximum resolution1920 x 1440 pixels
- Built-in displayYes
- Output voltage12 V
Overview
- Weight
- 2 kg
- Colour
- Black, Grey
- Number of computers controlled
- 8
- Maximum resolution
- 1920 x 1440 pixels
- Built-in display
- Yes
- Output voltage
- 12 V
- Brand
- LevelOne
- Category
- KVM Switch
- Model
- KVM-0811
- Part number
- KVM-0811
- EAN / UPC
- 4015867138014
- Also known as
- LevelOne 8-Port PS/2 VGA KVM Switch
Specifications
43 specifications in 11 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Number of computers controlled | 8 |
| Keyboard port type | PS/2 |
| Mouse port type | PS/2 |
| Video port type | VGA |
| VGA (D-Sub) ports quantity | 10 |
| Console ports | PS/2, VGA (D-Sub) |
| PS/2 ports quantity | 4 |
| Audio connections | No |
| DC-in jack | Yes |
Performance
| Specification | Value |
|---|---|
| Maximum resolution | 1920 x 1440 pixels |
| Video bandwidth | 200 Hz |
| Scan interval | 5,99 s |
| Hot-Plug support | Yes |
Design
| Specification | Value |
|---|---|
| Product colour | Black, Grey |
| Housing material | Metal |
| Cascadable | Yes |
| LED indicators | Yes |
| Push button | Yes |
| Hot keys | Yes |
Display
| Specification | Value |
|---|---|
| Built-in display | Yes |
| Display | LED |
| On Screen Display (OSD) | Yes |
Power
| Specification | Value |
|---|---|
| Output voltage | 12 V |
| Output current | 1 A |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 2000, Windows 95, Windows 98, Windows 98SE, Windows ME, Windows NT, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64 |
| Linux operating systems supported | Yes |
| Other operating systems supported | DOS, Novell NetWare 4.x, Novell NetWare 5.x, Novell NetWare 6.x, Novell Open Enterprise Server |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Storage relative humidity (H-H) | 0 - 80% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 165 mm |
| Depth | 410 mm |
| Height | 44 mm |
| Weight | 2 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 260 mm |
| Package depth | 100 mm |
| Package height | 545 mm |
| Package weight | 2.84 kg |
Packaging content
| Specification | Value |
|---|---|

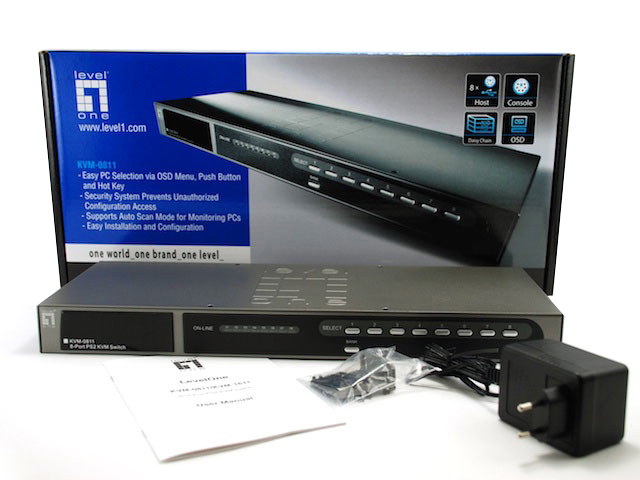

| AC adapter included | Yes |
| Manual | Yes |
| Rack mount kit | Yes |
Logistics data
| Specification | Value |
|---|---|
| Country of origin | China |
