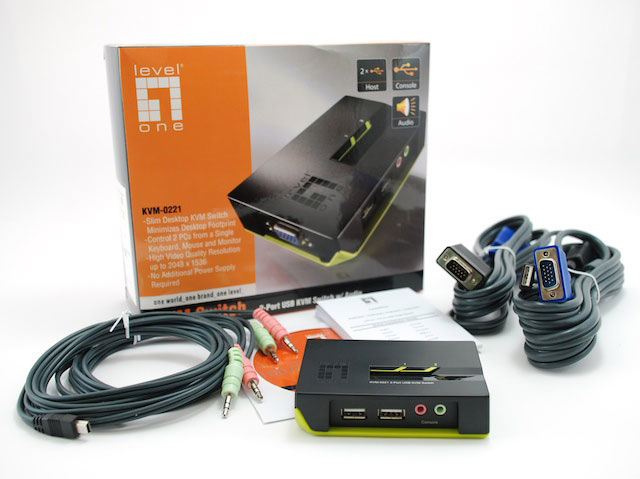

2-Port USB VGA KVM Switch, audio support
Model KVM-0221EAN 5054565104470
37 specifications
- Weight116 g
- ColourBlack, Green
- Number of computers controlled2
- Maximum resolution2048 x 1536 pixels
- Built-in displayNo
- USB poweredYes
Overview
- Weight
- 116 g
- Colour
- Black, Green
- Number of computers controlled
- 2
- Maximum resolution
- 2048 x 1536 pixels
- Built-in display
- No
- USB powered
- Yes
- Brand
- LevelOne
- Category
- KVM Switch
- Model
- KVM-0221
- Part number
- KVM-0221
- EAN / UPC
- 5054565104470, 4014619053995, 4015867137857, 4015867152294 +2 more
- Also known as
- LevelOne 2-Port USB VGA KVM Switch, audio support
Specifications
37 specifications in 11 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Number of computers controlled | 2 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | VGA |
| VGA (D-Sub) ports quantity | 3 |
| Console ports | 3.5mm headphone, 3.5mm mic, USB A, VGA (D-Sub) |
| USB 2.0 ports quantity | 4 |
| USB connector type | Mini-USB, USB Type-A |
| Audio connections | Yes |
| Headphone outputs | 1 |
| Number of microphone inputs | 1 |
Performance
| Specification | Value |
|---|---|
| Maximum resolution | 2048 x 1536 pixels |
| Scan interval | 25,35,45,55,50,40,10,15,20,30,60 s |
| Plug and Play | Yes |
Design
| Specification | Value |
|---|---|
| Product colour | Black, Green |
| Housing material | Plastic |
| LED indicators | Yes |
Display
| Specification | Value |
|---|---|
| Built-in display | No |
Power
| Specification | Value |
|---|---|
| USB powered | Yes |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Yes |
| Mac operating systems supported | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 96 mm |
| Depth | 61 mm |
| Height | 24 mm |
| Weight | 116 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 221 mm |
| Package depth | 76 mm |
| Package height | 190 mm |
| Package weight | 1.14 kg |
Packaging content
| Specification | Value |
|---|---|
| Cables included | KVM, Mini-USB |
| Manual | Yes |
| Quick installation guide | Yes |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176200 |
| Country of origin | China |
