KVM Desktop Switch, 4-port, Dual-Monitor DP 1.2, 4K, USB 3.0, Audio
Model 63654IEAN 4043718284696
41 specifications
- Weight2.15 kg
- ColourBlack, Grey
- Number of computers controlled4
- HD type4K Ultra HD
- Built-in displayNo
- Power sourceDC
Overview
- Weight
- 2.15 kg
- Colour
- Black, Grey
- Number of computers controlled
- 4
- HD type
- 4K Ultra HD
- Built-in display
- No
- Power source
- DC
- Brand
- InLine
- Category
- KVM Switch
- Model
- 63654I
- Part number
- 63654I
- EAN / UPC
- 4043718284696
- Also known as
- InLine KVM Desktop Switch, 4-port, Dual-Monitor DP 1.2, 4K, USB 3.0, Audio
Specifications
41 specifications in 10 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Number of computers controlled | 4 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | DisplayPort |
| DisplayPorts quantity | 8 |
| DisplayPort version | 1.2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity | 4 |
| Console USB ports quantity | 4 |
| Console ports | 3.5mm headphone, 3.5mm mic, DisplayPort, USB A |
| USB hub | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity | 2 |
| USB connector type | USB Type-A, USB Type-B |
| Audio connections | Yes |
| Headphone outputs | 4 |
| Number of microphone inputs | 4 |
| DC-in jack | Yes |
Performance
| Specification | Value |
|---|---|
| HD type | 4K Ultra HD |
| Maximum resolution | 3840 x 2160 pixels |
| Video bandwidth | 60 Hz |
| Audio channels | 2.0 |
| Number of displays supported | 2 |
Design
| Specification | Value |
|---|---|
| Product colour | Black, Grey |
| LED indicators | Yes |
Display
| Specification | Value |
|---|---|
| Built-in display | No |
Power
| Specification | Value |
|---|---|
| Power source | DC |
| Input voltage | 12 V |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Yes |
| Mac operating systems supported | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 100 mm |
| Depth | 255 mm |
| Height | 65 mm |
| Weight | 2.15 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 250 mm |
| Package depth | 330 mm |
| Package height | 180 mm |
| Package weight | 3.03 kg |
| Package type | Box |

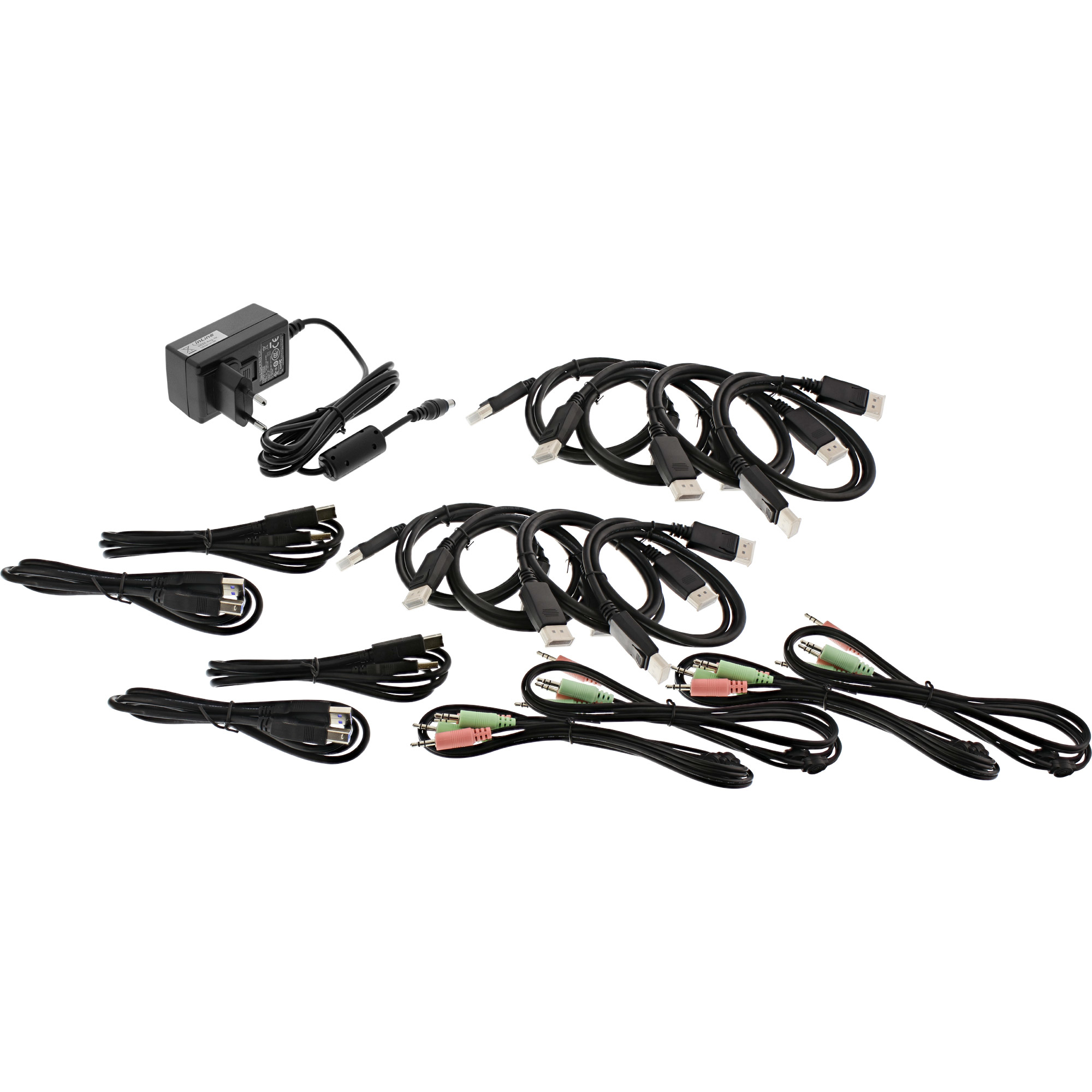

Packaging content
| Specification | Value |
|---|---|
| Cables included | KVM |
| AC adapter included | Yes |
| Manual | Yes |
Other features
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 100 x 255 x 65 mm |
