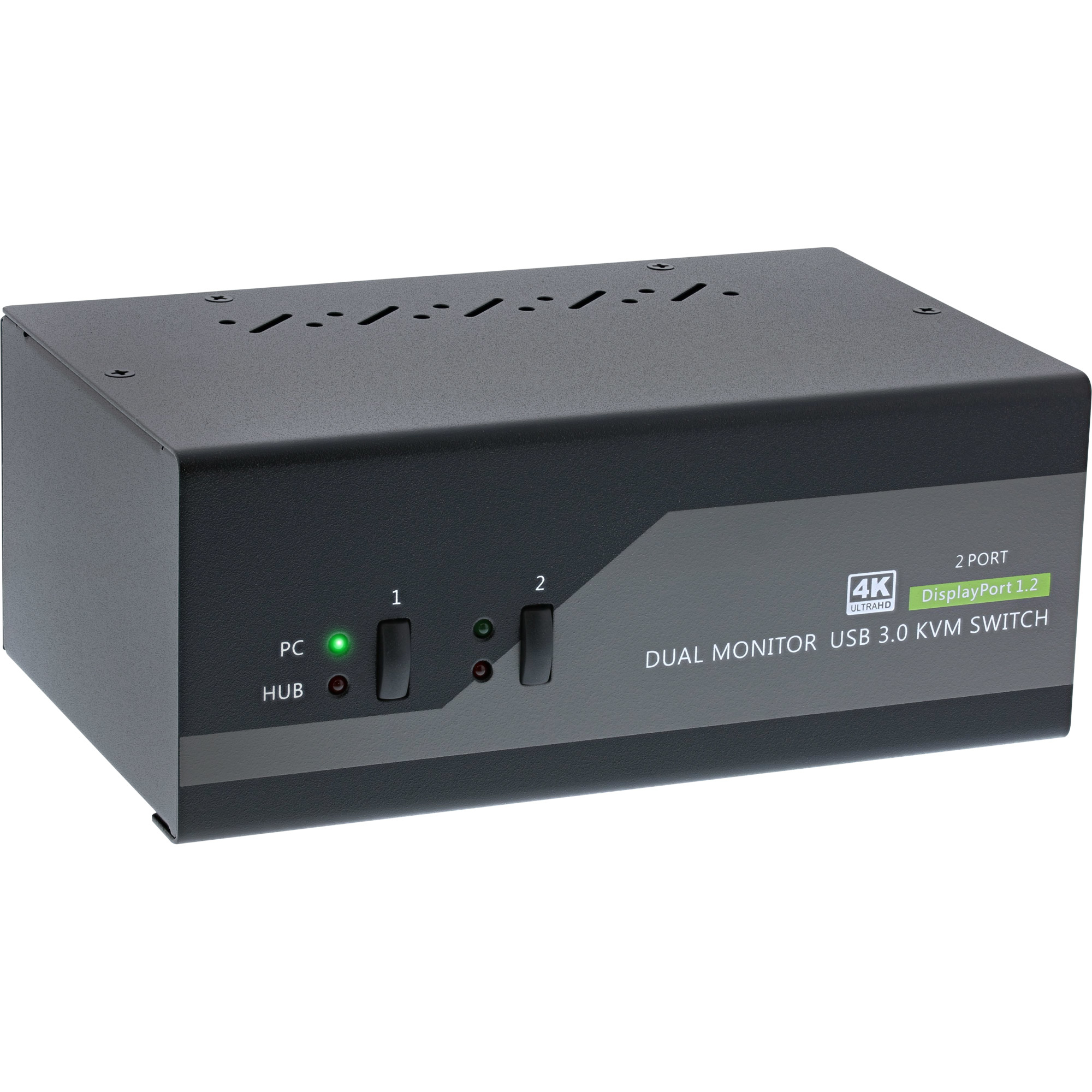

KVM Desktop Switch, 2-port, Dual Monitor DP 1.2, 4K, USB 3.0, Audio
Model 63652IEAN 4043718284689
37 specifications
- Weight747 g
- ColourBlack
- Number of computers controlled2
- HD type4K Ultra HD
- Rack mountingNo
- Power sourceAC
Overview
- Weight
- 747 g
- Colour
- Black
- Number of computers controlled
- 2
- HD type
- 4K Ultra HD
- Rack mounting
- No
- Power source
- AC
- Brand
- InLine
- Category
- KVM Switch
- Model
- 63652I
- Part number
- 63652I
- EAN / UPC
- 4043718284689
- Also known as
- InLine KVM Desktop Switch, 2-port, Dual Monitor DP 1.2, 4K, USB 3.0, Audio
Specifications
37 specifications in 9 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Number of computers controlled | 2 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | DisplayPort |
| DisplayPorts quantity | 6 |
| DisplayPort version | 1.2 |

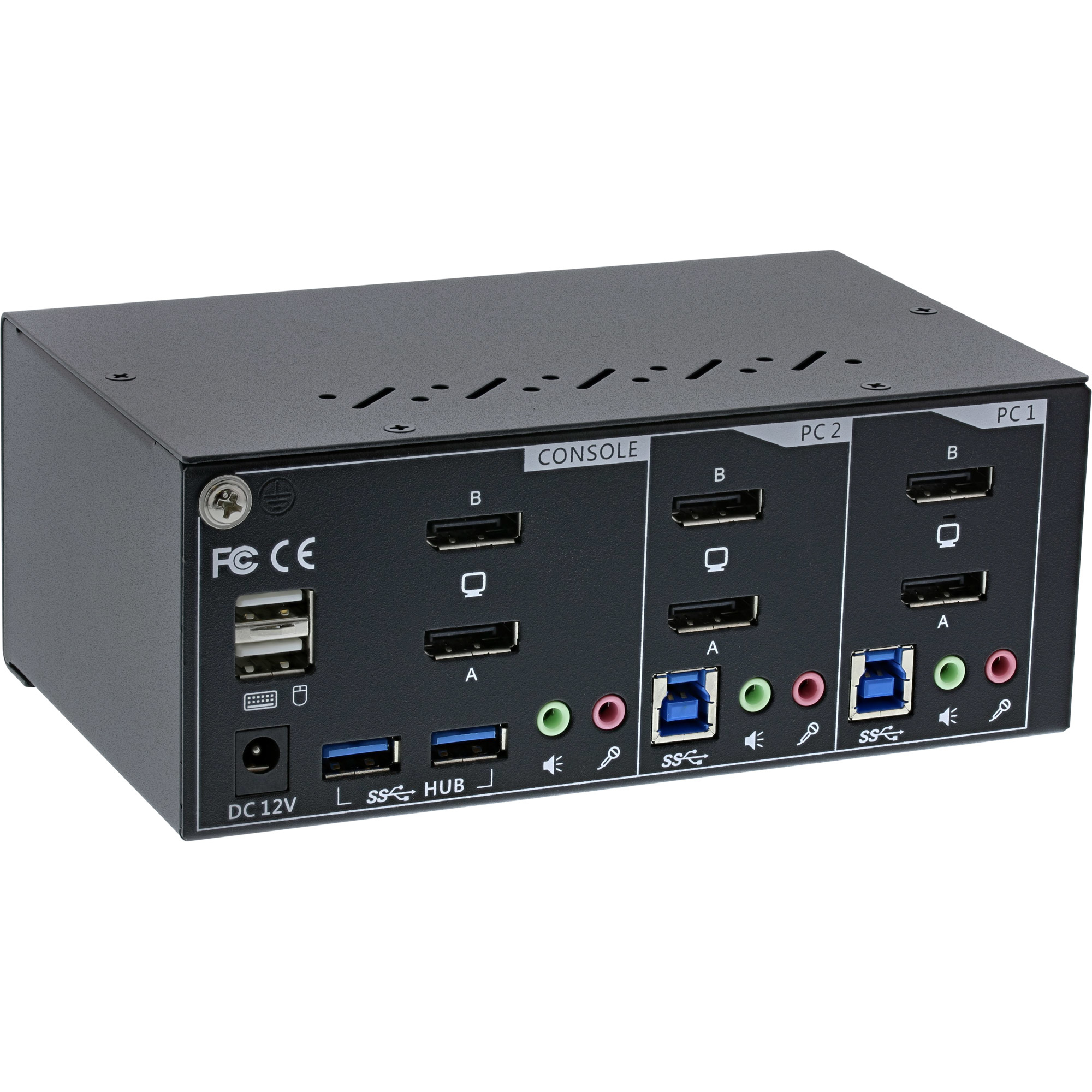

| Console ports | 3.5mm headphone, 3.5mm mic, DisplayPort, USB A |
| USB hub | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity | 2 |
| Audio connections | Yes |
| Headphone outputs | 3 |
| Number of microphone inputs | 3 |
| DC-in jack | Yes |
Performance
| Specification | Value |
|---|---|
| HD type | 4K Ultra HD |
| Maximum resolution | 3840 x 2160 pixels |
| Video bandwidth | 60 Hz |
| Number of displays supported | 2 |
Design
| Specification | Value |
|---|---|
| Rack mounting | No |
| Product colour | Black |
| LED indicators | Yes |
| Certification | FCC, CE |
Display
| Specification | Value |
|---|---|
| Built-in display | No |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Input voltage | 12 V |
| External power adapter | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 100 mm |
| Depth | 162 mm |
| Height | 66 mm |
| Weight | 747 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 160 mm |
| Package depth | 270 mm |
| Package height | 195 mm |
| Package weight | 1.83 kg |
Packaging content
| Specification | Value |
|---|---|

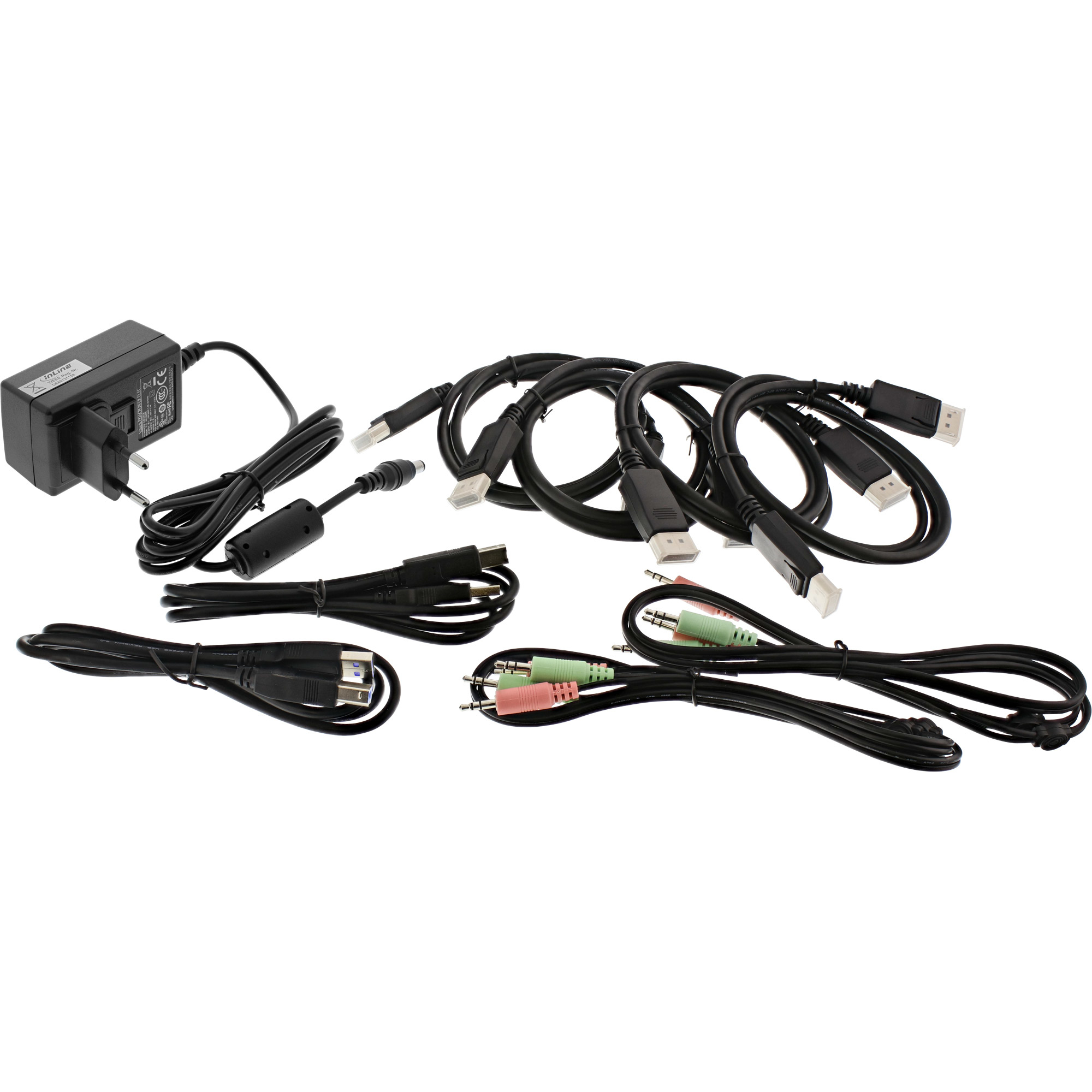

| Cables included | KVM |
| AC adapter included | Yes |
| Manual | Yes |
Other features
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 100 x 162 x 66 mm |
