57885D KVM switch Rack mounting Black
Model 57885DEAN 4043718344277
54 specifications
- Weight758 g
- ColourBlack
- Number of computers controlled2
- HD type8K Ultra HD
- Rack mountingYes
- Built-in displayNo
Overview
- Weight
- 758 g
- Colour
- Black
- Number of computers controlled
- 2
- HD type
- 8K Ultra HD
- Rack mounting
- Yes
- Built-in display
- No
- Brand
- InLine
- Category
- KVM Switch
- Model
- 57885D
- Part number
- 57885D
- EAN / UPC
- 4043718344277
- Also known as
- InLine 57885D KVM switch Rack mounting Black
Specifications
54 specifications in 12 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Number of computers controlled | 2 |
| Video port type | HDMI |
| HDMI ports quantity | 5 |
| HDMI version | 2.1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 4 |
| USB connector type | USB Type-A, USB Type-B |
| Serial port type | RS-232 |
| Serial ports quantity | 1 |
| Audio connections | Yes |
| DC-in jack | Yes |
Performance
| Specification | Value |
|---|---|
| HD type | 8K Ultra HD |
| Maximum resolution | 7680 x 4320 pixels |
| Data transfer rate (max) | 5 Gbit/s |
| High Dynamic Range (HDR) supported | Yes |
| HDCP | Yes |
| Maximum refresh rate | 240 Hz |
| Audio decoding technologies | DTS-HD, Dolby TrueHD, DTS-HD Master Audio, DTS:X, Dolby Digital EX, Dolby Atmos, Dolby Digital, Dolby Digital Plus |
| Consumer Electronics Control (CEC) support | Yes |
| HDCP version | 2.3 |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Product colour | Black |
| Housing material | Metal |
| LED indicators | Yes |
Display
| Specification | Value |
|---|---|
| Built-in display | No |
Power
| Specification | Value |
|---|---|
| Power source | DC |
| Input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Output voltage | 12 V |
| Output current | 1 A |
| External power adapter | Yes |
| Power consumption (typical) | 12 W |
Sustainability
| Specification | Value |
|---|---|
| Compliance certificates | TÜV mark |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 20 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 270 mm |
| Depth | 100 mm |
| Height | 30 mm |
| Weight | 758 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 330 mm |
| Package depth | 190 mm |
| Package height | 115 mm |
| Package volume | 14600 cm³ |
| Package weight | 1.97 kg |
| Package type | Box |
Packaging content
| Specification | Value |
|---|---|

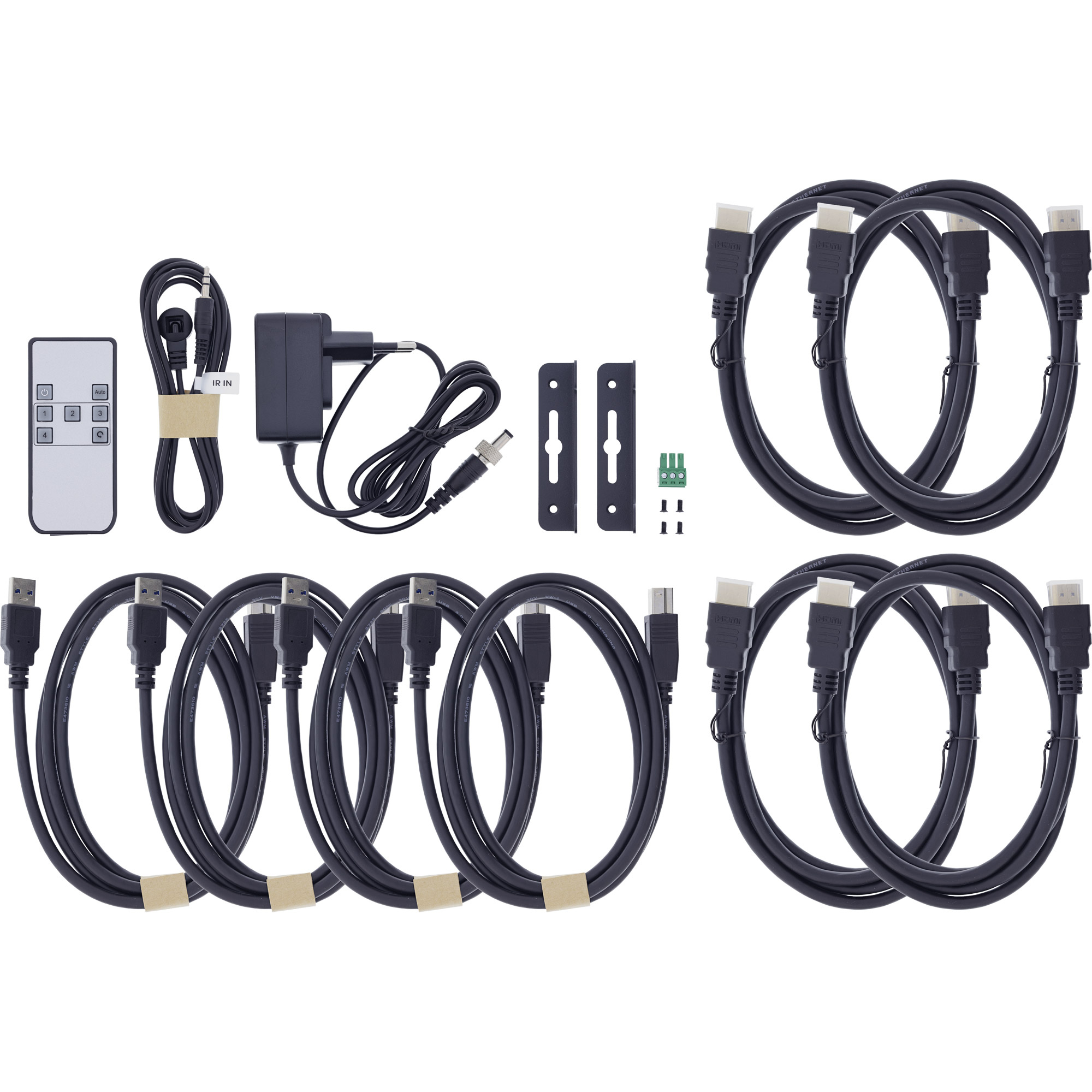

| Cables included | HDMI, IR, USB Type-A to USB Type-B |
| AC adapter included | Yes |
| Manual | Yes |
| Rack mount kit | Yes |
| Remote control included | Yes |
Other features
| Specification | Value |
|---|---|
| Colour depth | 12 bit |
| Dimensions (WxDxH) | 270 x 100 x 30 mm |
Logistics data
| Specification | Value |
|---|---|
| Country of origin | Taiwan |
