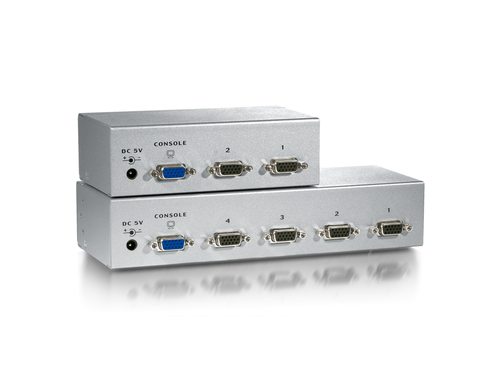

4-Port Desktop KVM Switch
Model 331504EAN 4014619283521
22 specifications
- Weight625 g
- ColourSilver
- Number of computers controlled4
- Maximum resolution2048 x 1536 pixels
- Built-in displayNo
- Windows operating systems supportedYes
Overview
- Weight
- 625 g
- Colour
- Silver
- Number of computers controlled
- 4
- Maximum resolution
- 2048 x 1536 pixels
- Built-in display
- No
- Windows operating systems supported
- Yes
- Brand
- Equip
- Category
- KVM Switch
- Model
- 331504
- Part number
- 331504
- EAN / UPC
- 4014619283521, 4015867132067
- Also known as
- Equip 4-Port Desktop KVM Switch
Specifications
22 specifications in 8 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Number of computers controlled | 4 |
| Keyboard port type | PS/2 |
| Mouse port type | PS/2 |
| Video port type | VGA |
| VGA (D-Sub) ports quantity | 4 |
| Console ports | PS/2, VGA (D-Sub) |
| Audio connections | No |
Performance
| Specification | Value |
|---|---|
| Maximum resolution | 2048 x 1536 pixels |
| Scan interval | 5,250 s |
Design
| Specification | Value |
|---|---|
| Product colour | Silver |
| Housing material | Metal |
| LED indicators | Yes |
Display
| Specification | Value |
|---|---|
| Built-in display | No |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Mac operating systems supported | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 215 mm |
| Depth | 85 mm |
| Height | 45 mm |
| Weight | 625 g |
Packaging content
| Specification | Value |
|---|---|
| Manual | Yes |
