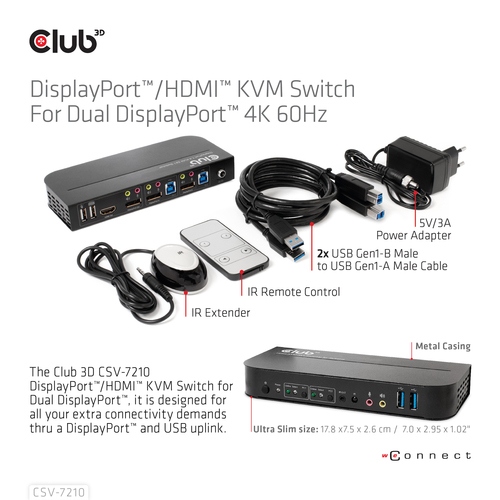

DisplayPort/HDMI KVM Switch For Dual DisplayPort 4K
60Hz
Model CSV-7210EAN 841615102457
54 specifications
- Weight370 g
- ColourBlack
- Number of computers controlled2
- HD type4K Ultra HD
- Rack mountingNo
- Power sourceDC
Overview
- Weight
- 370 g
- Colour
- Black
- Number of computers controlled
- 2
- HD type
- 4K Ultra HD
- Rack mounting
- No
- Power source
- DC
- Brand
- CLUB3D
- Category
- KVM Switch
- Model
- CSV-7210
- Part number
- CSV-7210
- EAN / UPC
- 841615102457, 8719214472238
- Also known as
- CLUB3D DisplayPort/HDMI KVM Switch For Dual DisplayPort 4K 60Hz
Specifications
54 specifications in 11 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Number of computers controlled | 2 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | HDMI/DisplayPort |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity | 2 |
| Console ports | 3.5mm headphone, 3.5mm mic, HDMI, USB B |
| Audio connections | Yes |
| Headphone outputs | 4 |
| Number of microphone inputs | 4 |
| DC-in jack | Yes |
Performance
| Specification | Value |
|---|---|
| HD type | 4K Ultra HD |
| Maximum resolution | 4096 x 2160 pixels |
| Video bandwidth | 60 Hz |
| Data transfer rate (max) | 32.4 Gbit/s |
| High Dynamic Range (HDR) supported | Yes |
| HDCP | Yes |
| Plug and Play | Yes |
| HDCP version | 1.4/2.2 |
Design
| Specification | Value |
|---|---|
| Rack mounting | No |
| Product colour | Black |
| Housing material | Metal |
| LED indicators | Yes |
Display
| Specification | Value |
|---|---|
| Built-in display | No |
Power
| Specification | Value |
|---|---|
| Power source | DC |
| Input voltage | 5 V |
| External power adapter | Yes |
| Power consumption (typical) | 12 W |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Mac operating systems supported | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -10 - 80 °C |
| Operating relative humidity (H-H) | 10 - 85% |
| Storage relative humidity (H-H) | 5 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 178 mm |
| Depth | 75 mm |
| Height | 26 mm |
| Weight | 370 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 230 mm |
| Package depth | 65 mm |
| Package height | 210 mm |
| Package weight | 787 g |
| Package type | Box |
| Paper/cardboard packaging weight | 147 g |
| Plastic packaging weight | 6 g |
| Total paper/cardboard packaging weight | 735 g |
| Total plastic packaging weight | 30 g |
Packaging content
| Specification | Value |
|---|---|
| Cables included | USB Type-A to USB Type-B |
| AC adapter included | Yes |
| Quick installation guide | Yes |
| Remote control included | Yes |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 8473 3020 |
