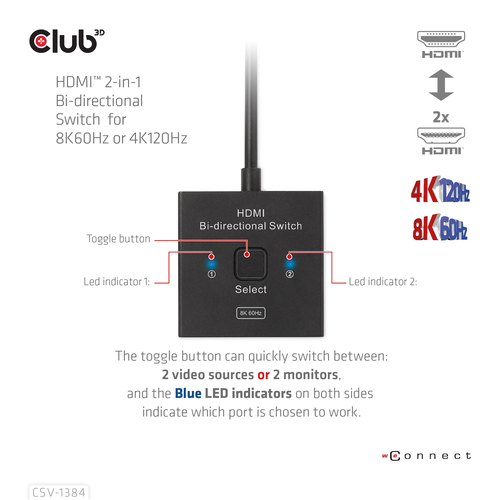

HDMI 2-in-1 Bi-directional Switch for 8K60Hz or 4K120Hz
Model CSV-1384EAN 8719214472832
33 specifications
- Weight70 g
- ColourBlack
- Number of computers controlled2
- HD type8K Ultra HD
- Built-in displayNo
- Windows operating systems supportedYes
Overview
- Weight
- 70 g
- Colour
- Black
- Number of computers controlled
- 2
- HD type
- 8K Ultra HD
- Built-in display
- No
- Windows operating systems supported
- Yes
- Brand
- CLUB3D
- Category
- KVM Switch
- Model
- CSV-1384
- Part number
- CSV-1384
- EAN / UPC
- 8719214472832
- Also known as
- CLUB3D HDMI 2-in-1 Bi-directional Switch for 8K60Hz or 4K120Hz
Specifications
33 specifications in 8 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Number of computers controlled | 2 |
| Keyboard port type | No |
| Mouse port type | No |
| Video port type | HDMI |
| HDMI ports quantity | 3 |
| HDMI version | 2.1 |
| Console ports | HDMI |
Performance
| Specification | Value |
|---|---|
| HD type | 8K Ultra HD |
| Maximum resolution | 7680 x 4320 pixels |
| Video bandwidth | 60 Hz |
| High Dynamic Range (HDR) supported | Yes |
| HDCP | Yes |
| Plug and Play | Yes |
| Number of displays supported | 2 |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Display switch button | Yes |
Display
| Specification | Value |
|---|---|
| Built-in display | No |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Yes |
| Mac operating systems supported | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 55 mm |
| Depth | 55 mm |
| Height | 15 mm |
| Weight | 70 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 145 mm |
| Package depth | 145 mm |
| Package height | 45 mm |
| Package weight | 117 g |
| Package type | Box |
| Paper/cardboard packaging weight | 45 g |
| Plastic packaging weight | 2 g |
| Total paper/cardboard packaging weight | 0 g |
| Total plastic packaging weight | 0 g |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 8473 3020 |
