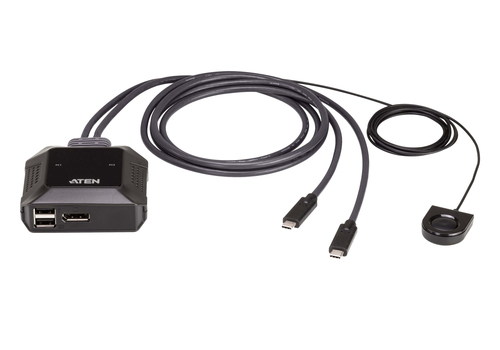

US3312 KVM switch Black
Model US3312EAN 672792013737
32 specifications
- Weight190 g
- ColourBlack
- Number of computers controlled2
- HD type4K DCI
- Rack mountingNo
- Power sourceUSB
Overview
- Weight
- 190 g
- Colour
- Black
- Number of computers controlled
- 2
- HD type
- 4K DCI
- Rack mounting
- No
- Power source
- USB
- Brand
- ATEN
- Category
- KVM Switch
- Model
- US3312
- Part number
- US3312
- EAN / UPC
- 672792013737
- Also known as
- ATEN US3312 KVM switch Black
Specifications
32 specifications in 9 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Number of computers controlled | 2 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | DisplayPort |
| DisplayPort version | 1.2 |
| Console USB ports quantity | 2 |
| Console ports | DisplayPort, USB A |
| Console DisplayPorts ports quantity | 1 |
| USB connector type | USB Type-C |
Performance
| Specification | Value |
|---|---|
| HD type | 4K DCI |
| Maximum resolution | 4096 x 2160 pixels |
| Video bandwidth | 60 Hz |
Design
| Specification | Value |
|---|---|
| Rack mounting | No |
| Product colour | Black |
| Housing material | Plastic |
| Wired remote switch | Yes |
| Cable length | 1.2 m |
| Remote switch cable length | 1.8 m |
| LED indicators | Yes |
Display
| Specification | Value |
|---|---|
| Built-in display | No |
Power
| Specification | Value |
|---|---|
| Power source | USB |
| Input voltage | 5 V |
| Power consumption (typical) | 0.74 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 84.2 mm |
| Depth | 83.4 mm |
| Height | 29.9 mm |
| Weight | 190 g |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 270 g |
Logistics data
| Specification | Value |
|---|---|
| Country of origin | China |
