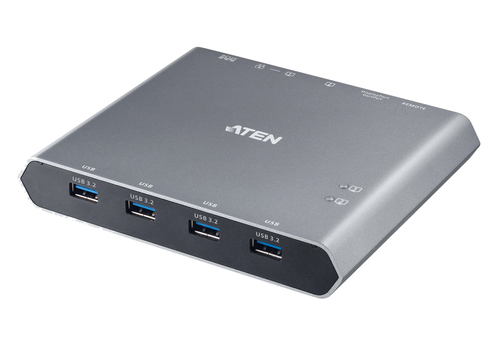

ATEN 2-Port 4K DisplayPort USB-C KVM Dock Switch with Power Pass-through
ATEN

2-Port 4K DisplayPort USB-C KVM Dock Switch with Power Pass-through

Model US3311-AT-E

51 specifications
  • Weight350 g
  • ColourSilver
  • Number of computers controlled2
  • HD type4K Ultra HD
  • Built-in displayNo
  • Power sourceDC
See all specifications

Overview

Weight
350 g
Colour
Silver
Number of computers controlled
2
HD type
4K Ultra HD
Built-in display
No
Power source
DC
Brand
ATEN
Category
KVM Switch
Model
US3311-AT-E
Part number
US3311-AT-E
Also known as
ATEN 2-Port 4K DisplayPort USB-C KVM Dock Switch with Power Pass-through

Specifications

51 specifications in 11 groups

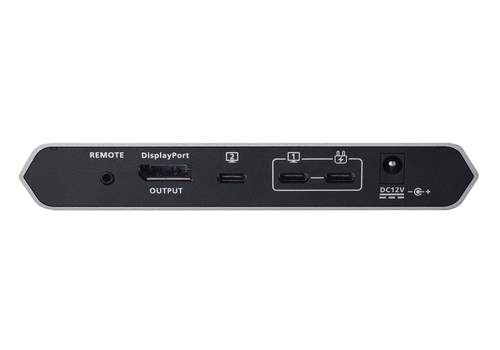

Ports & interfaces

Number of computers controlled2
Keyboard port typeUSB
Mouse port typeUSB
Video port typeDisplayPort
DisplayPorts quantity1
USB hubYes

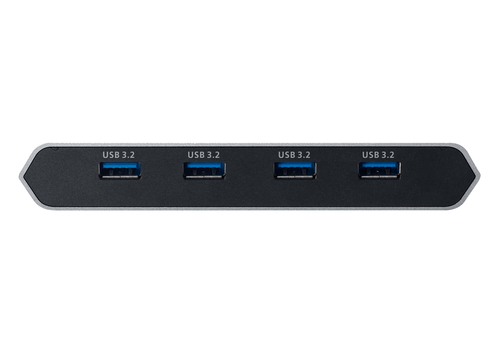

USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity4
USB Type-C ports quantity3
DC-in jackYes

Performance

HD type4K Ultra HD
Maximum resolution3840 x 2160 pixels
Video bandwidth60 Hz
Data transfer rate (max)5 Gbit/s
Plug and PlayYes

Design

Product colourSilver
Housing materialAluminium
Wired remote switchYes
LED indicatorsYes

Display

Built-in displayNo

Power

Power sourceDC
Input voltage12 V
Input current3 A
USB Power Delivery (USB PD)Yes
USB Power Delivery revision3.0
USB Power Delivery up to100 W

System requirements

Windows operating systems supportedWindows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterp
Mac operating systems supportedMac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura
Other operating systems supportedAndroid

Operational conditions

Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-20 - 60 °C
Operating relative humidity (H-H)0 - 80%

Weight & dimensions

Width119 mm
Depth143 mm
Height23.8 mm
Weight350 g

Packaging data

Package width62 mm
Package depth283 mm
Package height173 mm
Package volume1982.18 cm³
Package weight1.01 kg

Packaging content

Cables includedUSB Type-C
AC adapter includedYes
ManualYes
Remote control includedYes

Logistics data

Master (outer) case net weight4.25 kg
Master (outer) case width300 mm
Master (outer) case length336 mm
Master (outer) case height194 mm
Master (outer) case gross weight5.43 kg
Master (outer) case volume19538.62 cm³
Country of originTaiwan
