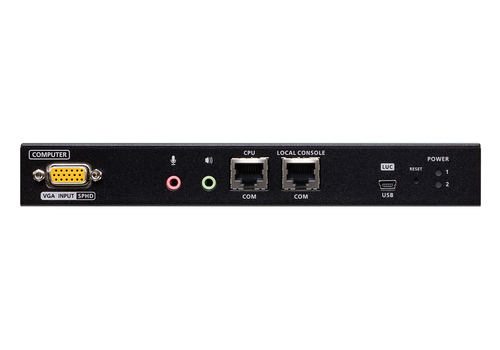

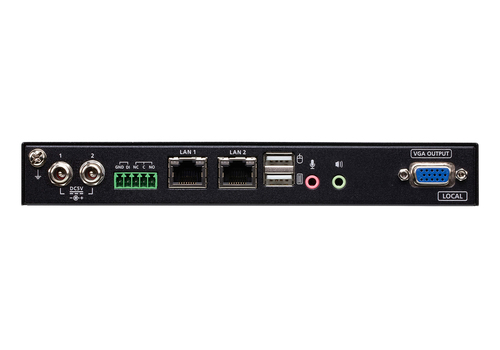

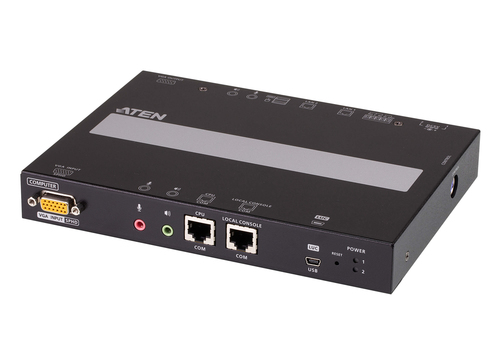

1-Local/Remote Share Access Single Port VGA KVM over IP Switch
Model RCMVGA101Part no. RCMVGA101-AX-GEAN 4710469341151
39 specifications
- Weight860 g
- ColourBlack
- Number of computers controlled1
- Ethernet LANYes
- HD typeFull HD
- Built-in displayNo
Overview
- Weight
- 860 g
- Colour
- Black
- Number of computers controlled
- 1
- Ethernet LAN
- Yes
- HD type
- Full HD
- Built-in display
- No
- Brand
- ATEN
- Category
- KVM Switch
- Model
- RCMVGA101
- Part number
- RCMVGA101-AX-G
- EAN / UPC
- 4710469341151
- Also known as
- ATEN 1-Local/Remote Share Access Single Port VGA KVM over IP Switch
Specifications
39 specifications in 9 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Number of computers controlled | 1 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | VGA |
| VGA (D-Sub) ports quantity | 2 |
| Console USB ports quantity | 2 |
| Console ports | 3.5mm headphone, 3.5mm mic, USB A, VGA (D-Sub) |
| Audio connections | Yes |
| Headphone outputs | 2 |
| Number of microphone inputs | 2 |
| DC-in jack | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 4 |
Performance
| Specification | Value |
|---|---|
| HD type | Full HD |
| Maximum resolution | 1920 x 1200 pixels |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Housing material | Metal |
| LED indicators | Yes |
Display
| Specification | Value |
|---|---|
| Built-in display | No |
| On Screen Display (OSD) | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 154.1 mm |
| Depth | 200 mm |
| Height | 28.5 mm |
| Weight | 860 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 98 mm |
| Package depth | 325 mm |
| Package height | 210 mm |
| Package volume | 6796.04 cm³ |
| Package weight | 1.68 kg |
Logistics data
| Specification | Value |
|---|---|
| Master (outer) case net weight | 6.3 kg |
| Master (outer) case width | 342 mm |
| Master (outer) case length | 512 mm |
| Master (outer) case height | 232 mm |
| Master (outer) case gross weight | 9.03 kg |
| Master (outer) case volume | 40776.25 cm³ |
| Country of origin | Taiwan |
