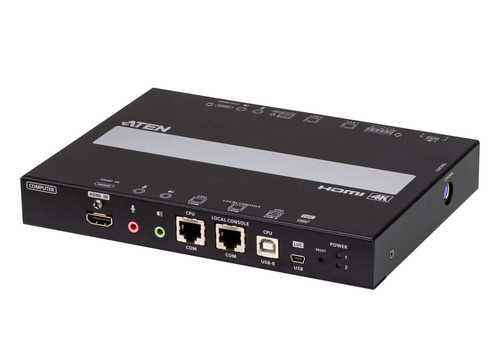

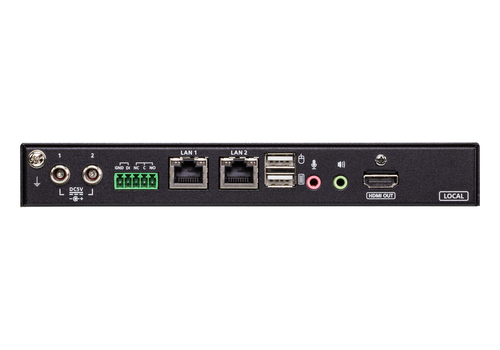

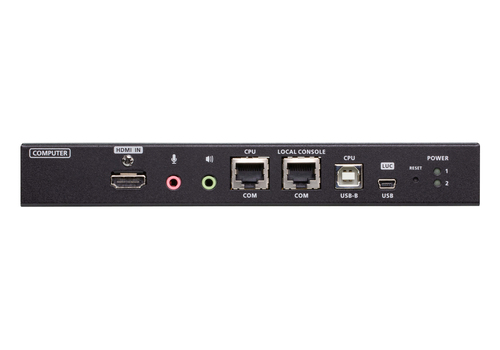

ATEN 1-Local / Remote Shared Access Single Port 4K HDMI KVM over IP Switch
ATEN

1-Local / Remote Shared Access Single Port 4K HDMI KVM over IP Switch

Model RCMHD101UPart no. RCMHD101U-AX-GEAN 4710469342288

51 specifications
  • Weight840 g
  • ColourBlack
  • Keyboard port typeUSB
  • Ethernet LANYes
  • HD type4K Ultra HD
  • Built-in displayNo
See all specifications

Overview

Weight
840 g
Colour
Black
Keyboard port type
USB
Ethernet LAN
Yes
HD type
4K Ultra HD
Built-in display
No
Brand
ATEN
Category
KVM Switch
Model
RCMHD101U
Part number
RCMHD101U-AX-G
EAN / UPC
4710469342288
Also known as
ATEN 1-Local / Remote Shared Access Single Port 4K HDMI KVM over IP Switch

Specifications

51 specifications in 10 groups

Ports & interfaces

Keyboard port typeUSB
Mouse port typeUSB
Video port typeHDMI
HDMI ports quantity1
USB 2.0 Type-B ports quantity1
Console USB ports quantity2
Console ports3.5mm headphone, 3.5mm mic, HDMI, USB A
Console HDMI ports quantity1
Serial port typeRJ-45
Serial ports quantity2
Audio connectionsYes
Headphone outputs2
Number of microphone inputs2
DC-in jackYes

Network

Ethernet LANYes
Ethernet LAN (RJ-45) ports2

Performance

HD type4K Ultra HD
Maximum resolution4096 x 2160 pixels
Video bandwidth30 Hz
Number of users64 user(s)
Firmware upgradeableYes

Design

Product colourBlack
Housing materialMetal
LED indicatorsPower
Push buttonYes

Display

Built-in displayNo
On Screen Display (OSD)Yes

Operational conditions

Operating temperature (T-T)0 - 50 °C
Storage temperature (T-T)-20 - 60 °C
Operating relative humidity (H-H)0 - 80%

Weight & dimensions

Width150.5 mm
Depth200 mm
Height28.4 mm
Weight840 g

Packaging data

Package width98 mm
Package depth325 mm
Package height210 mm
Package volume6796.04 cm³
Package weight1.37 kg
Package net weight6.85 kg

Packaging content

Cables includedKVM, Mini-USB
AC adapter includedYes
ManualYes
Rack mount kitYes
Rubber feetYes

Logistics data

Master (outer) case width342 mm
Master (outer) case length512 mm
Master (outer) case height232 mm
Master (outer) case gross weight8.76 kg
Master (outer) case volume40776.26 cm³
Country of originTaiwan
