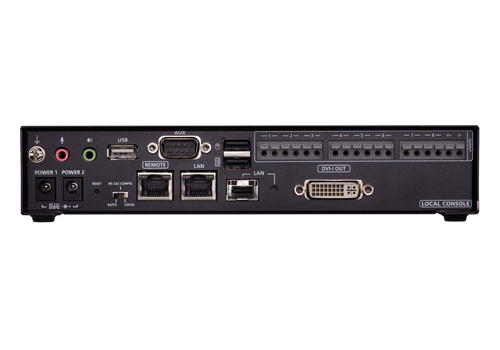

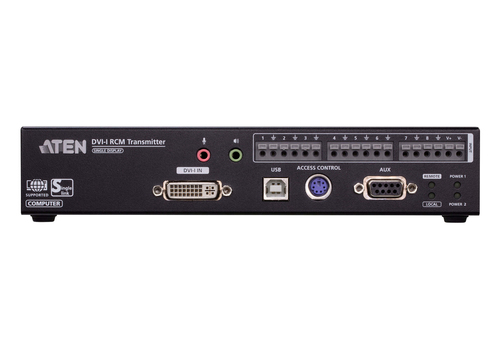

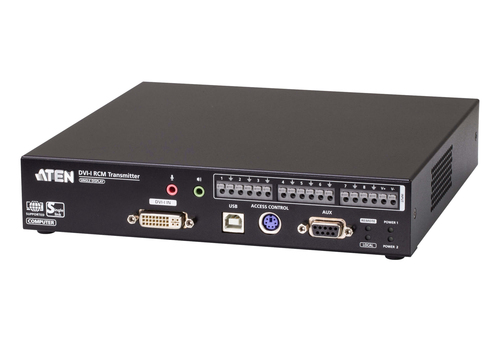

DVI-I Single Display KVM over IP Transmitter with Remote Access
Model RCMDVI00BTPart no. RCMDVI00BT-AX-GEAN 4710469341731
44 specifications
- Weight1.51 kg
- ColourBlack
- Number of computers controlled1
- Ethernet LANYes
- HD typeFull HD
- Built-in displayNo
Overview
- Weight
- 1.51 kg
- Colour
- Black
- Number of computers controlled
- 1
- Ethernet LAN
- Yes
- HD type
- Full HD
- Built-in display
- No
- Brand
- ATEN
- Category
- KVM Switch
- Model
- RCMDVI00BT
- Part number
- RCMDVI00BT-AX-G
- EAN / UPC
- 4710469341731
- Also known as
- ATEN DVI-I Single Display KVM over IP Transmitter with Remote Access
Specifications
44 specifications in 10 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Number of computers controlled | 1 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | DVI-I |
| DVI-I ports quantity | 2 |
| USB 2.0 Type-B ports quantity | 1 |
| Console USB ports quantity | 2 |
| Console ports | 3.5mm headphone, 3.5mm mic, DVI-I, USB A |
| Serial port type | DE-9 (DB-9) |
| Serial ports quantity | 2 |
| Audio connections | Yes |
| Headphone outputs | 2 |
| Number of microphone inputs | 2 |
| DC-in jack | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Cabling technology | 10/100/1000Base-T(X) |
Performance
| Specification | Value |
|---|---|
| HD type | Full HD |
| Maximum resolution | 1920 x 1200 pixels |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Housing material | Metal |
| LED indicators | Yes |
Display
| Specification | Value |
|---|---|
| Built-in display | No |
| On Screen Display (OSD) | No |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 16.9 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 123.3 mm |
| Depth | 215 mm |
| Height | 41.8 mm |
| Weight | 1.51 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 266 mm |
| Package depth | 383 mm |
| Package height | 115 mm |
| Package volume | 11609.9 cm³ |
| Package weight | 2.75 kg |
Logistics data
| Specification | Value |
|---|---|
| Master (outer) case net weight | 6.98 kg |
| Master (outer) case width | 362 mm |
| Master (outer) case length | 396 mm |
| Master (outer) case height | 279 mm |
| Master (outer) case gross weight | 8.92 kg |
| Master (outer) case volume | 39926.75 cm³ |
| Country of origin | Taiwan |
