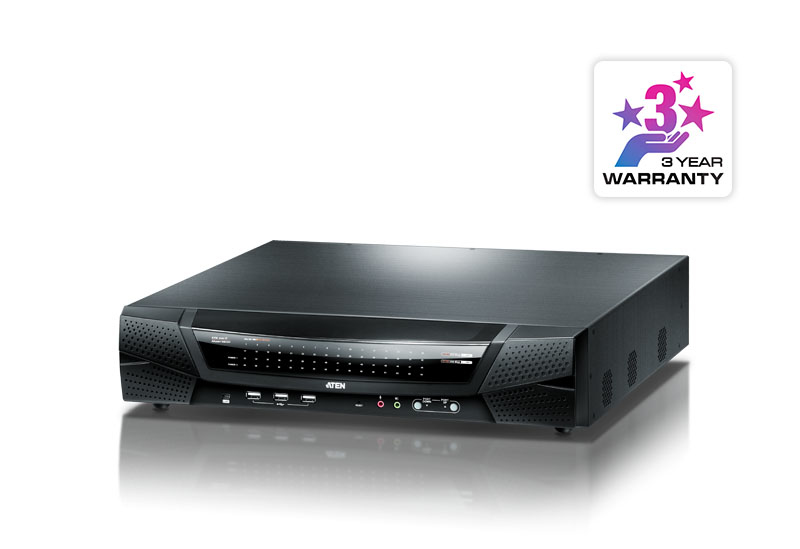

KN8164V-AX-E KVM switch Black
Model KN8164V-AX-E
39 specifications
- Weight7.66 kg
- ColourBlack
- Number of computers controlled64
- Ethernet LANYes
- HD typeWUXGA
- Rack mountingNo
Overview
- Weight
- 7.66 kg
- Colour
- Black
- Number of computers controlled
- 64
- Ethernet LAN
- Yes
- HD type
- WUXGA
- Rack mounting
- No
- Brand
- ATEN
- Category
- KVM Switch
- Model
- KN8164V-AX-E
- Part number
- KN8164V-AX-E
- Also known as
- ATEN KN8164V-AX-E KVM switch Black
Specifications
39 specifications in 9 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Number of computers controlled | 64 |
| Keyboard port type | USB, PS/2 |
| Mouse port type | USB, PS/2 |
| Video port type | DVI-D/VGA |
| DVI-D ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
| Console USB ports quantity | 2 |
| Console ports | DVI-D, RJ–45, USB A, VGA (D-Sub) |
| USB hub | Yes |
| USB 2.0 Type-A hub ports quantity | 3 |
| USB connector type | USB Type-A |
| Audio connections | Yes |
| Headphone outputs | 2 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 2 |
Performance
| Specification | Value |
|---|---|
| HD type | WUXGA |
| Maximum resolution | 1920 x 1200 pixels |
| Video bandwidth | 60 Hz |
| Scan interval | 1,255 s |
Design
| Specification | Value |
|---|---|
| Rack mounting | No |
| Product colour | Black |
| Housing material | Metal |
| LED indicators | Yes |
| Push button | Yes |
| Hot keys | Yes |
Display
| Specification | Value |
|---|---|
| Built-in display | No |
Power
| Specification | Value |
|---|---|
| Input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 1 A |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Storage relative humidity (H-H) | 0 - 80% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 433.6 mm |
| Depth | 412.6 mm |
| Height | 88 mm |
| Weight | 7.66 kg |
Packaging content
| Specification | Value |
|---|---|
| Manual | Yes |
| Quick installation guide | Yes |
