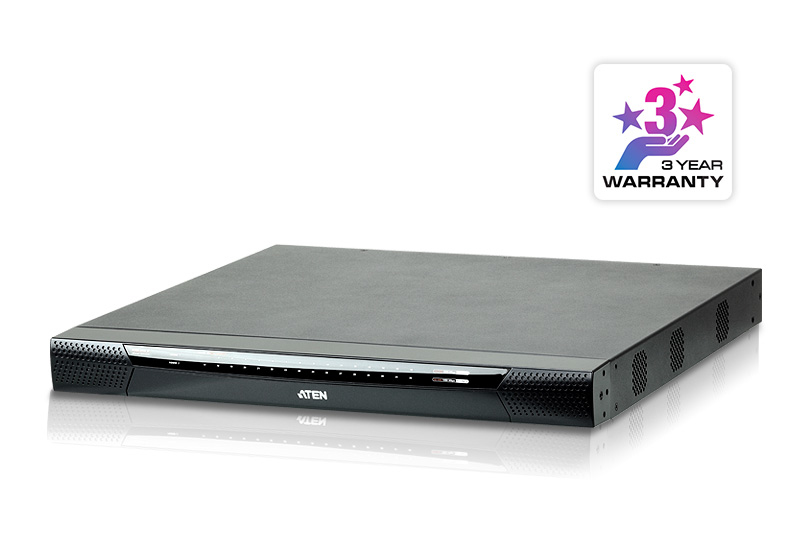

ATEN 32-Port 5-Bus CAT5e/6 KVM Over IP Switch, with Audio & Virtual Media Support

ATEN 32-Port 5-Bus CAT5e/6 KVM Over IP Switch, with Audio & Virtual Media Support

Model KN4132VA-AX-GEAN 4710423778559

59 specifications
  • Weight6.13 kg
  • ColourMetallic
  • Number of computers controlled32
  • Ethernet LANYes
  • HD typeWUXGA
  • Rack capacity1U
See all specifications

Overview

Weight
6.13 kg
Colour
Metallic
Number of computers controlled
32
Ethernet LAN
Yes
HD type
WUXGA
Rack capacity
1U
Brand
ATEN
Category
KVM Switch
Model
KN4132VA-AX-G
Part number
KN4132VA-AX-G
EAN / UPC
4710423778559, 4719264643460
Also known as
ATEN 32-Port 5-Bus CAT5e/6 KVM Over IP Switch, with Audio & Virtual Media Support

Specifications

59 specifications in 12 groups

Ports & interfaces

Number of computers controlled32
Keyboard port typeUSB
Mouse port typeUSB
Video port typeDVI-I
DVI-I ports quantity1
Console USB ports quantity2
Console portsDVI-I, USB A
USB hubYes
USB 2.0 Type-A hub ports quantity3
USB connector typeMini-USB B, USB Type-A
Serial port typeRJ-45
Serial ports quantity1
Audio connectionsYes
DC-in jackNo

Network

Ethernet LANYes
Ethernet LAN (RJ-45) ports36
Cabling technology10/100/1000Base-T(X)
Networking standardsIEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Security algorithms3DES, 128-bit RC4, 256-bit AES, DES, FIPS 140-2, RSA, SSL/TLS

Performance

HD typeWUXGA
Maximum resolution1920 x 1200 pixels
Video bandwidth60 Hz
Scan interval1,255 s

Design

Rack capacity1U
Rack mountingYes
Product colourMetallic
Housing materialMetal
CascadableYes
LED indicatorsYes
Push buttonYes

Display

Built-in displayNo

Power

Power sourceAC
Input voltage100-240 V
AC input frequency50 - 60 Hz
Input current1 A

System requirements

Windows operating systems supportedYes
Linux operating systems supportedYes
Mac operating systems supportedYes

Operational conditions

Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-20 - 60 °C
Operating relative humidity (H-H)0 - 80%

Weight & dimensions

Width412.1 mm
Depth433.6 mm
Height44 mm
Weight6.13 kg

Packaging data

Package width521 mm
Package depth570 mm
Package height152 mm
Package weight7.68 kg

Packaging content

Cables includedAC
ManualYes
Rack mount kitNo

Logistics data

Harmonized System (HS) code85176200
Master (outer) case net weight6.13 kg
Master (outer) case width506 mm
Master (outer) case length575 mm
Master (outer) case height130 mm
Master (outer) case gross weight7.68 kg
Products per master (outer) case1 pc(s)
