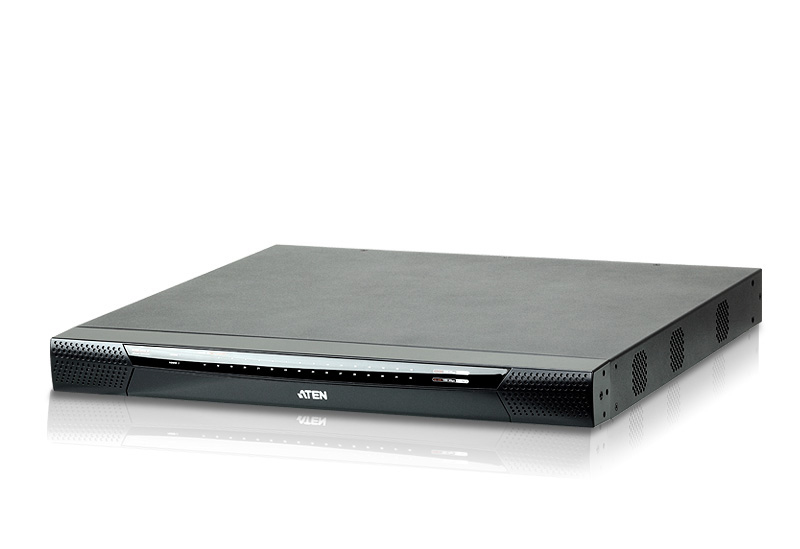

KN4132VA-AX-E KVM switch Rack mounting Grey
Model KN4132VA-AX-E
43 specifications
- ColourGrey
- Number of computers controlled32
- Ethernet LANYes
- HD typeWUXGA
- Rack capacity1U
- Built-in displayNo
Overview
- Colour
- Grey
- Number of computers controlled
- 32
- Ethernet LAN
- Yes
- HD type
- WUXGA
- Rack capacity
- 1U
- Built-in display
- No
- Brand
- ATEN
- Category
- KVM Switch
- Model
- KN4132VA-AX-E
- Part number
- KN4132VA-AX-E
- Also known as
- ATEN KN4132VA-AX-E KVM switch Rack mounting Grey
Specifications
43 specifications in 9 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Number of computers controlled | 32 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | DVI-I |
| DVI-I ports quantity | 1 |
| Console USB ports quantity | 2 |
| Console ports | DVI-I, USB A |
| USB hub | Yes |
| USB 2.0 Type-A hub ports quantity | 3 |
| USB connector type | Micro-USB, USB Type-A |
| Serial port type | RJ-45 |
| Serial ports quantity | 1 |
| Audio connections | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 36 |
| Cabling technology | 10/100/1000Base-T(X) |
Performance
| Specification | Value |
|---|---|
| HD type | WUXGA |
| Maximum resolution | 1920 x 1200 pixels |
| Video bandwidth | 60 Hz |
| Scan interval | 1,255 s |
| Auto scan delay (min) | 1 s |
| Auto scan delay (max) | 255 s |
Design
| Specification | Value |
|---|---|
| Rack capacity | 1U |
| Rack mounting | Yes |
| Product colour | Grey |
| Housing material | Metal |
| Cascadable | Yes |
| LED indicators | Yes |
| Push button | Yes |
Display
| Specification | Value |
|---|---|
| Built-in display | No |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 1 A |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 412.1 mm |
| Depth | 433.6 mm |
| Height | 44 mm |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC |
| Manual | Yes |
| Rack mount kit | Yes |
