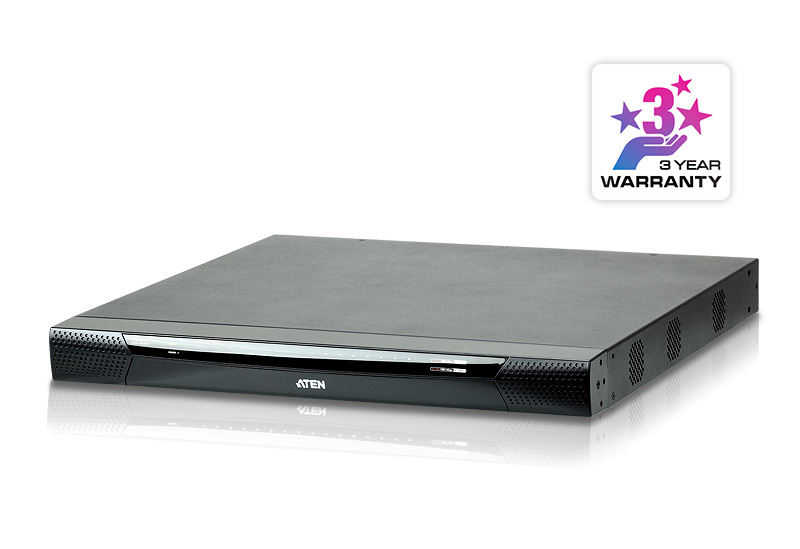

ATEN 16-Port 5-Bus CAT5e/6 KVM Over IP Switch, with Audio & Virtual Media Support

ATEN 16-Port 5-Bus CAT5e/6 KVM Over IP Switch, with Audio & Virtual Media Support

Model KN4116VA-AX-GEAN 4710423778535

58 specifications
  • Weight6.63 kg
  • ColourMetallic
  • Number of computers controlled16
  • Ethernet LANYes
  • HD typeWUXGA
  • Rack capacity1U
See all specifications

Overview

Weight
6.63 kg
Colour
Metallic
Number of computers controlled
16
Ethernet LAN
Yes
HD type
WUXGA
Rack capacity
1U
Brand
ATEN
Category
KVM Switch
Model
KN4116VA-AX-G
Part number
KN4116VA-AX-G
EAN / UPC
4710423778535, 4719264643453
Also known as
ATEN 16-Port 5-Bus CAT5e/6 KVM Over IP Switch, with Audio & Virtual Media Support

Specifications

58 specifications in 11 groups

Ports & interfaces

Number of computers controlled16
Keyboard port typeUSB
Mouse port typeUSB
Video port typeDVI-D/VGA
DVI-D ports quantity1
VGA (D-Sub) ports quantity1
Console USB ports quantity2
Console portsDVI-D, RJ–45, USB A, VGA (D-Sub)
USB hubYes
USB 2.0 Type-A hub ports quantity3
USB connector typeMini-USB B, USB Type-A
Serial port typeRJ-45
Serial ports quantity1
Audio connectionsYes
Headphone outputs1
Number of microphone inputs1
DC-in jackYes

Network

Ethernet LANYes
Ethernet LAN (RJ-45) ports20
Cabling technology10/100/1000Base-T(X)
Security algorithmsFIPS 140-2

Performance

HD typeWUXGA
Maximum resolution1920 x 1200 pixels
Video bandwidth60 Hz
Scan interval1,255 s

Design

Rack capacity1U
Rack mountingYes
Product colourMetallic
Housing materialMetal
CascadableYes
LED indicatorsLink, Power
Push buttonYes
Hot keysNo

Display

Built-in displayNo

Power

Power sourceAC
Input voltage100-240 V
AC input frequency50 - 60 Hz
Input current1 A

Operational conditions

Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-20 - 60 °C
Operating relative humidity (H-H)0 - 80%

Weight & dimensions

Width433.6 mm
Depth412.1 mm
Height44 mm
Weight6.63 kg

Packaging data

Package width521 mm
Package depth570 mm
Package height152 mm
Package weight7.63 kg

Packaging content

Cables includedAC
ManualYes
Rack mount kitYes

Logistics data

Master (outer) case net weight6.63 kg
Master (outer) case width506 mm
Master (outer) case length575 mm
Master (outer) case height130 mm
Master (outer) case gross weight7.63 kg
Products per master (outer) case1 pc(s)
