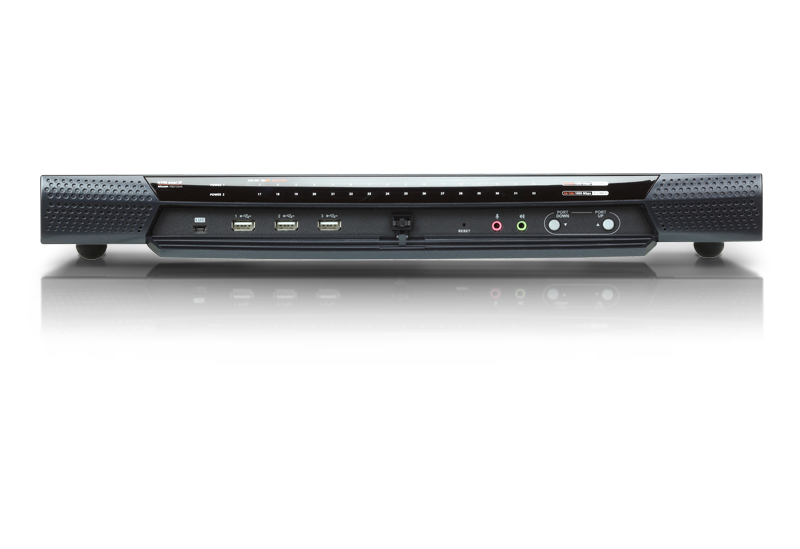

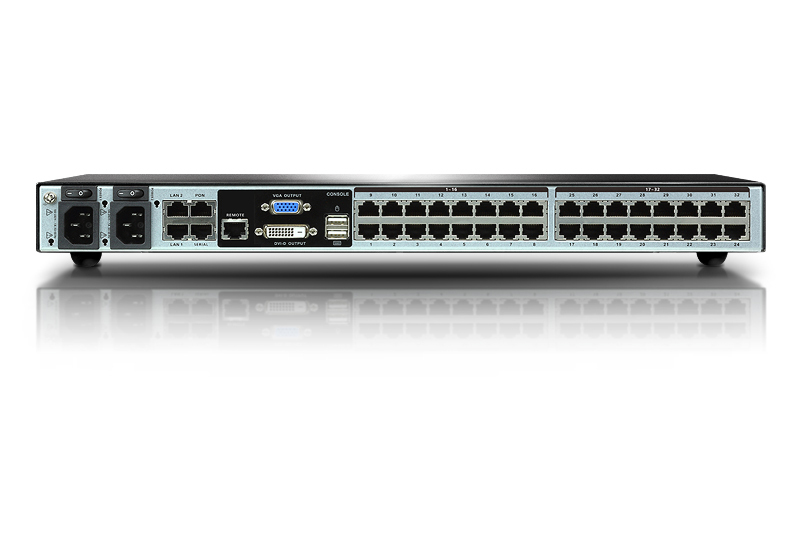

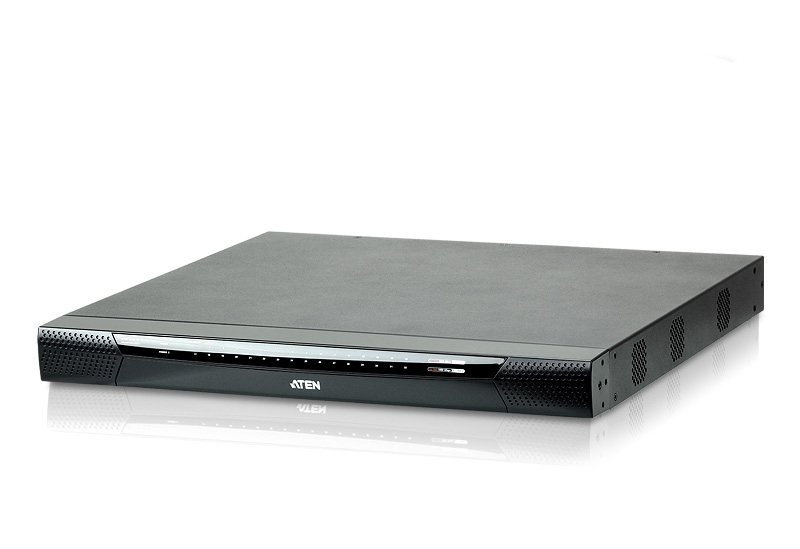

KN2132VA-AX-E KVM switch Rack mounting Black, Grey
Model KN2132VA-AX-E
39 specifications
- Weight6.23 kg
- ColourBlack, Grey
- Number of computers controlled32
- Ethernet LANYes
- HD typeWUXGA
- Rack capacity1U
Overview
- Weight
- 6.23 kg
- Colour
- Black, Grey
- Number of computers controlled
- 32
- Ethernet LAN
- Yes
- HD type
- WUXGA
- Rack capacity
- 1U
- Brand
- ATEN
- Category
- KVM Switch
- Model
- KN2132VA-AX-E
- Part number
- KN2132VA-AX-E
- Also known as
- ATEN KN2132VA-AX-E KVM switch Rack mounting Black, Grey
Specifications
39 specifications in 9 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Number of computers controlled | 32 |
| Keyboard port type | USB, PS/2 |
| Mouse port type | USB, PS/2 |
| Video port type | DVI-D |
| DVI-D ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
| Console USB ports quantity | 2 |
| Console ports | DVI-D, USB A, VGA (D-Sub) |
| USB connector type | Mini-USB |
| Audio connections | Yes |
| Number of microphone inputs | 1 |
| DC-in jack | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 38 |
| Cabling technology | 10/100/1000Base-T(X) |
| Security algorithms | FIPS 140-2 |
Performance
| Specification | Value |
|---|---|
| HD type | WUXGA |
| Maximum resolution | 1920 x 1200 pixels |
| Scan interval | 255 s |
| Number of users | 3 user(s) |
Design
| Specification | Value |
|---|---|
| Rack capacity | 1U |
| Rack mounting | Yes |
| Product colour | Black, Grey |
| Housing material | Metal |
| LED indicators | Yes |
| Push button | Yes |
Display
| Specification | Value |
|---|---|
| Built-in display | No |
Power
| Specification | Value |
|---|---|
| Input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 1 A |
| Power consumption (typical) | 43.23 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 433.6 mm |
| Depth | 412.1 mm |
| Height | 44 mm |
| Weight | 6.23 kg |
Packaging content
| Specification | Value |
|---|---|
| Manual | Yes |
