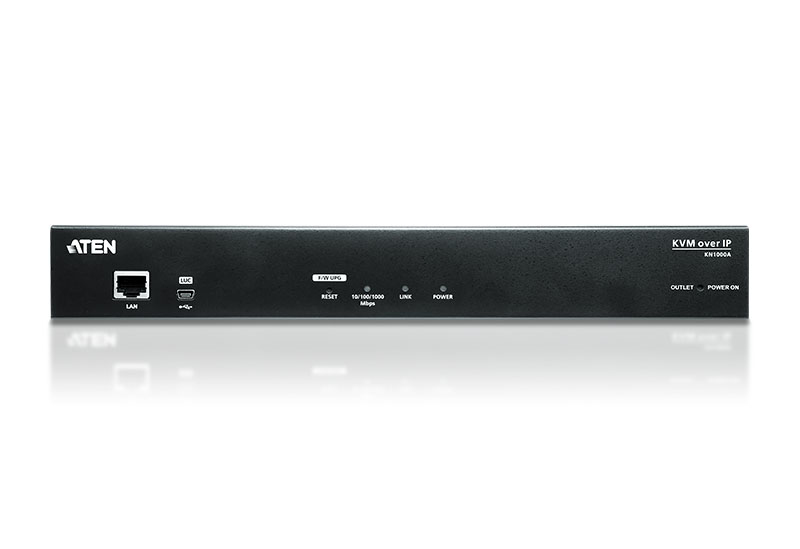

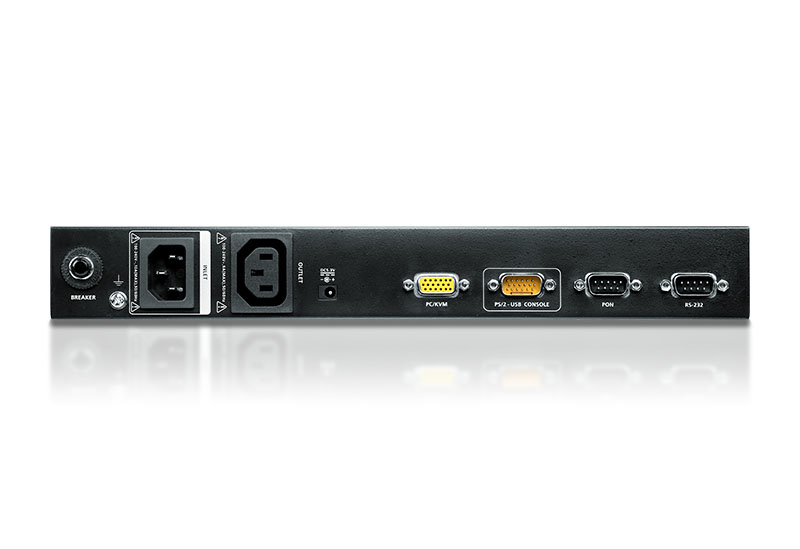

ATEN Single Port KVM over IP Switch with Single Port Power Switch
Model KN1000A-AX-GEAN 2000001237755
42 specifications
- Weight1.61 kg
- ColourBlack
- Number of computers controlled1
- Ethernet LANYes
- HD typeWUXGA
- Built-in displayNo
Overview
- Weight
- 1.61 kg
- Colour
- Black
- Number of computers controlled
- 1
- Ethernet LAN
- Yes
- HD type
- WUXGA
- Built-in display
- No
- Brand
- ATEN
- Category
- KVM Switch
- Model
- KN1000A-AX-G
- Part number
- KN1000A-AX-G
- EAN / UPC
- 2000001237755, 4719264645174
- Also known as
- ATEN Single Port KVM over IP Switch with Single Port Power Switch
Specifications
42 specifications in 11 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Number of computers controlled | 1 |
| Keyboard port type | No |
| Mouse port type | No |
| Video port type | VGA |
| Console ports | SPHD, USB B |
| USB connector type | Mini-USB B |
| DC-in jack | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
Performance
| Specification | Value |
|---|---|
| HD type | WUXGA |
| Maximum resolution | 1920 x 1200 pixels |
| DDC2B support | Yes |
| Number of users | 54 user(s) |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Housing material | Metal |
| LED indicators | Yes |
Display
| Specification | Value |
|---|---|
| Built-in display | No |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Input voltage | Hög videoupplösning – upp till 1920 x 1200 vid 60 Hz med 24-bitars färgdjup för den lokala konsolen; upp till 1920 x 1200 vid 60 Hz med 24-bitars färgdjup för fjärrsessioner Notera: * Kompatibla KVM-switchar inkluderar följande: CS9134, CS9138, CS1308, CS1316, CS1754, CS1758, CS1708A, CS1716A, ACS12 |
| AC input frequency | 50 - 60 Hz |
| Input current | 10 A |
| Output voltage | 100 - 240 V |
| Output current | 9 A |
Sustainability
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 83.9 mm |
| Depth | 310 mm |
| Height | 42 mm |
| Weight | 1.61 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 207 mm |
| Package depth | 414 mm |
| Package height | 117 mm |
| Package weight | 2.03 kg |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176200 |
| Master (outer) case net weight | 4.84 kg |
| Master (outer) case width | 370 mm |
| Master (outer) case length | 427 mm |
| Master (outer) case height | 232 mm |
| Master (outer) case gross weight | 6.89 kg |
| Products per master (outer) case | 3 pc(s) |
Compare ATEN Single Port KVM over IP Switch with Single Port Power Switch
Compare any products- ATEN Single Port KVM over IP Switch with Single Port Power Switch vsATEN KE8950T KVM switchCompare specs
- ATEN Single Port KVM over IP Switch with Single Port Power Switch vsATEN CL5716IM KVM switch Rack mounting BlackCompare specs
- ATEN Single Port KVM over IP Switch with Single Port Power Switch vsATEN CL5808N-ATA-AU KVM switch Rack mounting BlackCompare specs
- ATEN Single Port KVM over IP Switch with Single Port Power Switch vsATEN CL5716N-ATA-XG-2XK06RG KVM switch Rack mounting BlackCompare specs
- ATEN Single Port KVM over IP Switch with Single Port Power Switch vsIntellinet Modular 16-Port CAT5 VGA KVM Switch, For Use with Product Numbers 507622, 507738, 507981, 507998, 508025, 508032, 508049 & 508056Compare specs
- ATEN Single Port KVM over IP Switch with Single Port Power Switch vsIntellinet Modular 8-Port CAT5 VGA KVM Switch, For Use with Product Numbers 507622, 507738, 507981, 507998, 508025, 508032, 508049 & 508056Compare specs

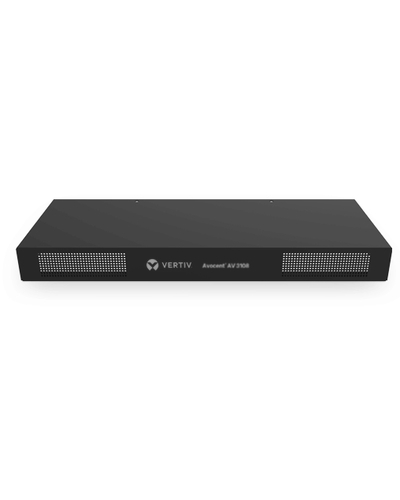

- ATEN Single Port KVM over IP Switch with Single Port Power Switch vsVertiv Avocent AV3108-XXX KVM switch Rack mounting BlackCompare specs

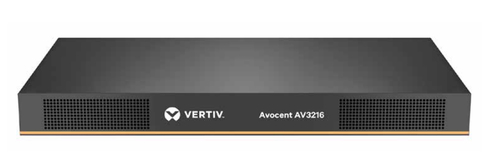

- ATEN Single Port KVM over IP Switch with Single Port Power Switch vsVertiv Avocent AV3216-XXX KVM switch Rack mounting BlackCompare specs
