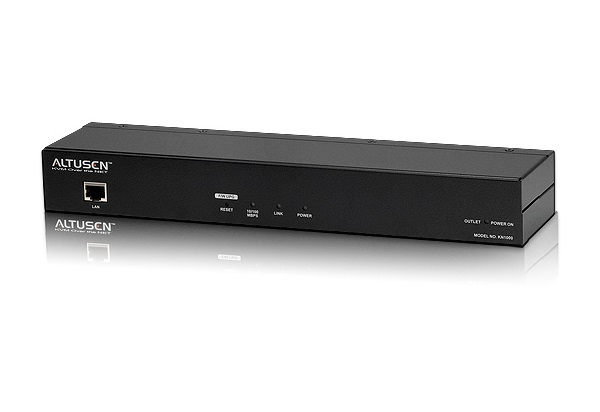

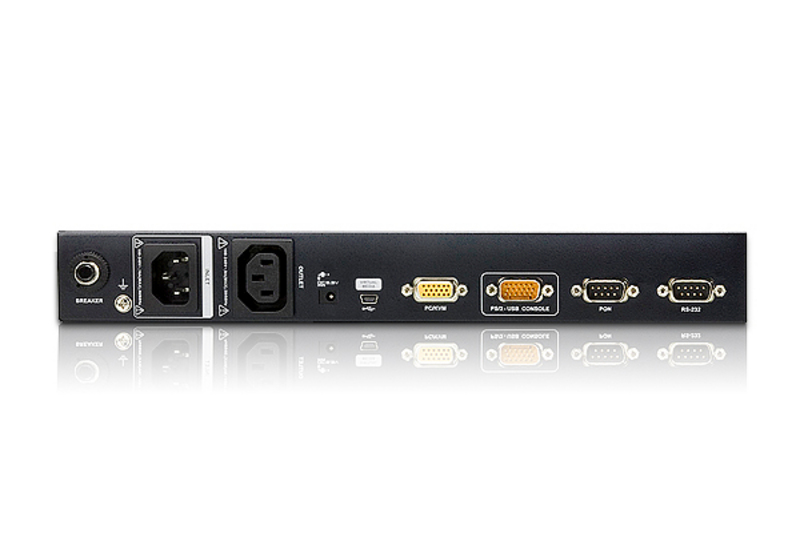

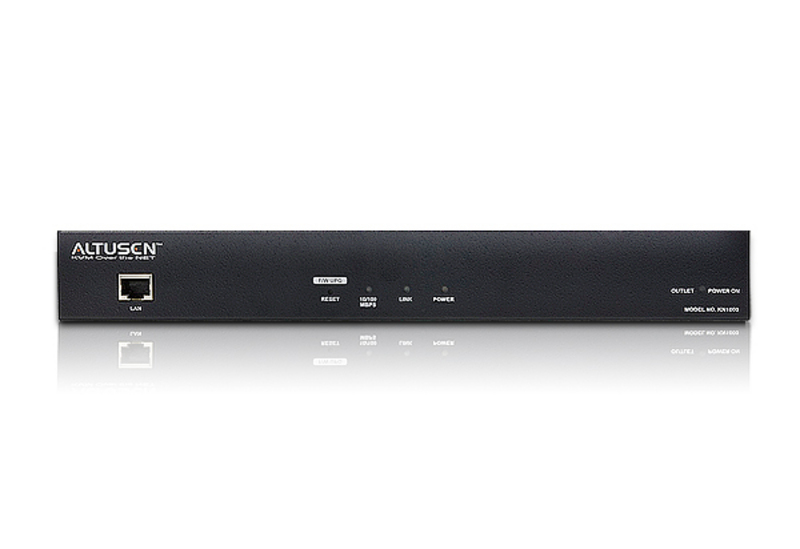

1-Local/Remote Share Access Single Port VGA KVM over IP Switch with Single Outlet Switched PDU (1600 x 1200)
Model KN1000-AX-G
40 specifications
- Weight860 g
- ColourBlack
- Number of computers controlled1
- Ethernet LANYes
- HD typeWUXGA
- Built-in displayNo
Overview
- Weight
- 860 g
- Colour
- Black
- Number of computers controlled
- 1
- Ethernet LAN
- Yes
- HD type
- WUXGA
- Built-in display
- No
- Brand
- ATEN
- Category
- KVM Switch
- Model
- KN1000-AX-G
- Part number
- KN1000-AX-G
- Also known as
- ATEN 1-Local/Remote Share Access Single Port VGA KVM over IP Switch with Single Outlet Switched PDU (1600 x 1200)
Specifications
40 specifications in 10 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Number of computers controlled | 1 |
| Video port type | VGA |
| Console ports | VGA (D-Sub) |
| USB connector type | Mini-USB B |
| Serial port type | DE-9 (DB-9) |
| Serial ports quantity | 2 |
| DC-in jack | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
Performance
| Specification | Value |
|---|---|
| HD type | WUXGA |
| Maximum resolution | 1600 x 1200 pixels |
| Video bandwidth | 60 Hz |
| DDC2B support | Yes |
| Number of users | 64 user(s) |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Housing material | Metal |
| LED indicators | Yes |
| Push button | Yes |
Display
| Specification | Value |
|---|---|
| Built-in display | No |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 10 A |
| Output voltage | 100 - 240 V |
| Output current | 9 A |
| Power consumption (typical) | 6.77 W |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Mac operating systems supported | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 81.5 mm |
| Depth | 310 mm |
| Height | 42 mm |
| Weight | 860 g |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC, KVM, Mini-USB |
| AC adapter included | Yes |
| Manual | Yes |
| Rack mount kit | Yes |
