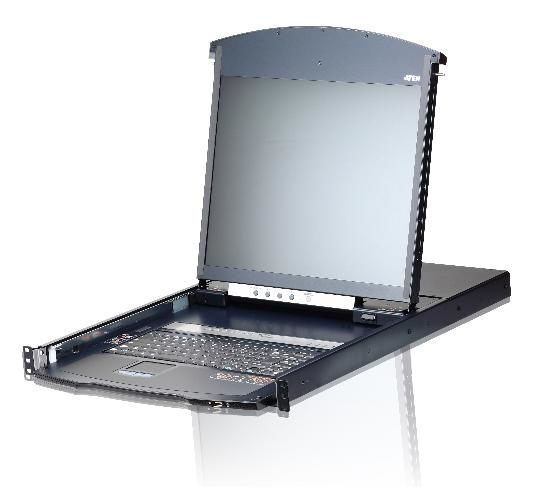

KL1108VN-AXA-EE KVM switch Rack mounting Black
Model KL1108VN-AXA-EE
40 specifications
- Display48.3 cm (19")
- Weight15.2 kg
- ColourBlack
- Number of computers controlled8
- Ethernet LANYes
- HD typeWUXGA
Overview
- Display
- 48.3 cm (19")
- Weight
- 15.2 kg
- Colour
- Black
- Number of computers controlled
- 8
- Ethernet LAN
- Yes
- HD type
- WUXGA
- Brand
- ATEN
- Category
- KVM Switch
- Model
- KL1108VN-AXA-EE
- Part number
- KL1108VN-AXA-EE
- Also known as
- ATEN KL1108VN-AXA-EE KVM switch Rack mounting Black
Specifications
40 specifications in 9 groups

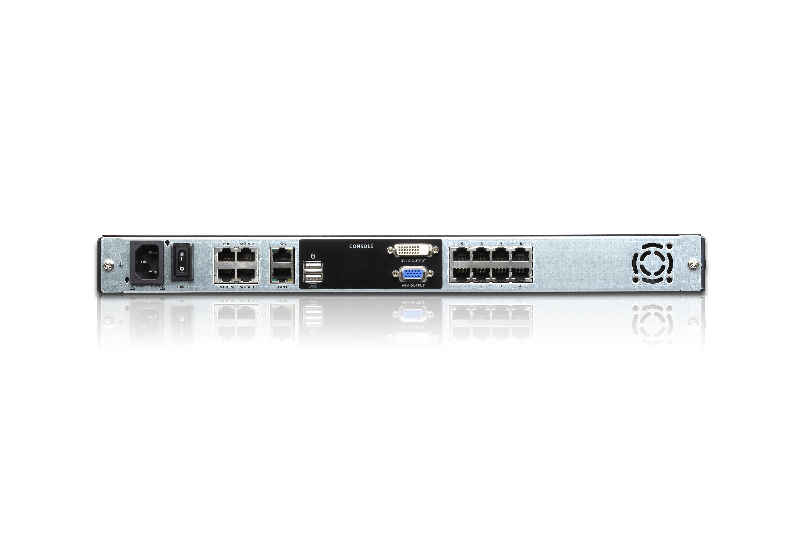

Ports & interfaces
| Specification | Value |
|---|---|
| Number of computers controlled | 8 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | DVI-D |
| DVI-D ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
| Console USB ports quantity | 2 |
| Console ports | DVI-D, USB A, VGA (D-Sub) |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 14 |
| Cabling technology | 10/100/1000Base-T(X) |
Performance
| Specification | Value |
|---|---|
| HD type | WUXGA |
| Maximum resolution | 1920 x 1200 pixels |
| Video bandwidth | 60 Hz |
| Scan interval | 1,255 s |
| DDC/DDC2 supported | Yes |
Design
| Specification | Value |
|---|---|
| Rack capacity | 1U |
| Rack mounting | Yes |
| Product colour | Black |
| Housing material | Metal |
| LED indicators | LAN, Power, Status |
| Push button | Yes |
Display
| Specification | Value |
|---|---|
| Built-in display | Yes |
| Display | LCD |
| Display diagonal | 48.3 cm (19") |
| On Screen Display (OSD) | Yes |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 1 A |
| Power consumption (typical) | 29 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 701.2 mm |
| Depth | 480 mm |
| Height | 44 mm |
| Weight | 15.2 kg |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC |
| Manual | Yes |
