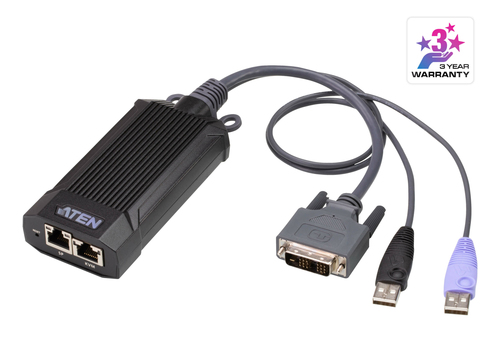

KG6900T KVM switch Black, Grey, Purple
Model KG6900TEAN 672792015410
30 specifications
- Weight300 g
- ColourBlack, Grey, Purple
- Keyboard port typeUSB
- Ethernet LANYes
- Maximum resolution1920 x 1200 pixels
- Rack mountingNo
Overview
- Weight
- 300 g
- Colour
- Black, Grey, Purple
- Keyboard port type
- USB
- Ethernet LAN
- Yes
- Maximum resolution
- 1920 x 1200 pixels
- Rack mounting
- No
- Brand
- ATEN
- Category
- KVM Switch
- Model
- KG6900T
- Part numbers
- KG6900T, KG6900T-AX
- EAN / UPC
- 672792015410, 4710469346460
- Also known as
- ATEN KG6900T KVM switch Black, Grey, Purple
Specifications
30 specifications in 11 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | DVI-D |
| Console ports | RJ–45 |
| Console RJ-45 ports quantity | 2 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 2 |
| Cabling technology | 10/100/1000Base-T(X) |
Performance
| Specification | Value |
|---|---|
| Maximum resolution | 1920 x 1200 pixels |
| Firmware upgradeable | Yes |
Design
| Specification | Value |
|---|---|
| Rack mounting | No |
| Product colour | Black, Grey, Purple |
| Housing material | Aluminium |
| LED indicators | Yes |
Display
| Specification | Value |
|---|---|
| Built-in display | No |
Power
| Specification | Value |
|---|---|
| Power source | DC |
| Power consumption (typical) | 3.854 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 58 mm |
| Depth | 122 mm |
| Height | 25.8 mm |
| Weight | 300 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 65 mm |
| Package depth | 185 mm |
| Package height | 110 mm |
| Package weight | 350 g |
Packaging content
| Specification | Value |
|---|---|
| Quick installation guide | Yes |
Logistics data
| Specification | Value |
|---|---|
| Country of origin | Taiwan |
